Modular Connectors - Jacks

Modular Connectors - Jacks: Category Overview

Definition of Modular Connectors - Jacks

Modular Connectors - Jacks are a specialized subset of Connectors and Interconnects, designed to facilitate reliable, standardized connections in telecommunications, networking, and data transmission systems. These jacks are typically female receptacles that interface with modular plugs (e.g., RJ45, RJ11), ensuring secure and efficient signal transfer. They are engineered for durability, ease of use, and compatibility with industry standards, making them indispensable in both commercial and industrial applications.

Types of Modular Connectors - Jacks

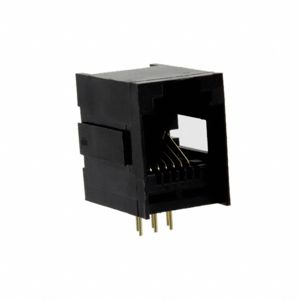

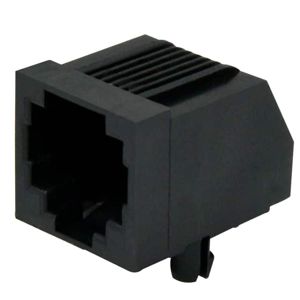

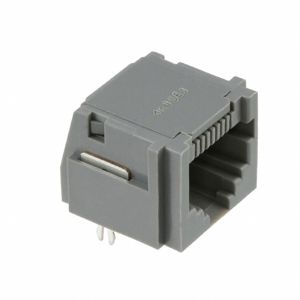

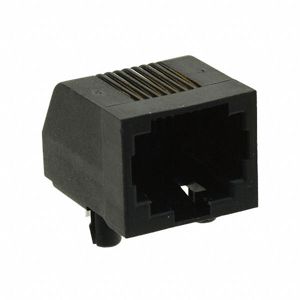

Telephone Jacks (RJ11/RJ12): Used in voice communication systems, supporting 6P2C or 6P4C configurations.

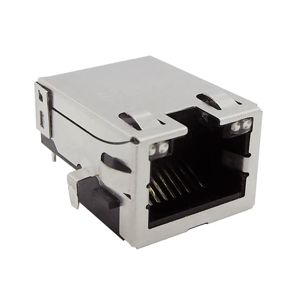

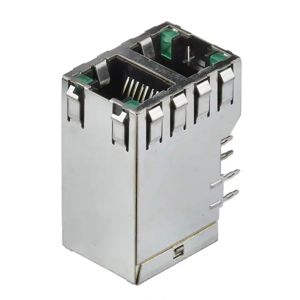

Ethernet Jacks (RJ45): Essential for wired networking (Cat5e, Cat6, Cat6a), enabling high-speed data transfer.

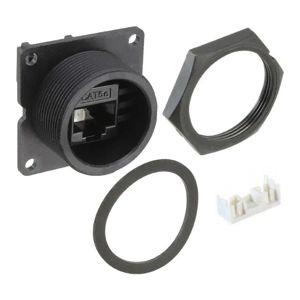

Shielded Jacks: Feature EMI/RFI protection for environments with high electromagnetic interference.
Surface-Mount vs. Through-Hole Jacks: Differ in PCB installation methods, catering to varied design requirements.

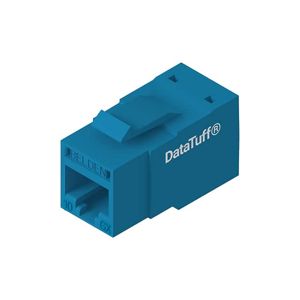

Keystone Jacks: Modular inserts for patch panels and wall plates, offering flexibility in structured cabling.

Purchasing Recommendations

Application-Specific Selection: Choose RJ45 jacks for Ethernet networks or RJ11 for telephone lines. Verify compatibility with existing hardware.
Performance Tier: Opt for Cat6/6a jacks for gigabit speeds or shielded variants for industrial settings.
Durability: Prioritize gold-plated contacts and high-impact housings for long-term reliability.
Standards Compliance: Ensure adherence to TIA/EIA or ISO/IEC standards for interoperability.
Supplier Evaluation: Source from certified manufacturers to guarantee quality and warranty support.

Modular Connectors - Jacks streamline connectivity solutions across industries selecting the right type ensures optimal performance and future-proof installations.

Found 13930 items
