Optics - Light Pipes: Illuminating Solutions for Optoelectronic Applications
Definition:
Light pipes, a specialized category within Optoelectronics, are optical components designed to efficiently transmit and distribute light from a source to a desired location. These devices utilize principles of total internal reflection (TIR) to guide light with minimal loss, making them ideal for applications requiring precise illumination, signal indication, or aesthetic lighting. Light pipes are commonly constructed from high-quality materials like acrylic, polycarbonate, or glass, ensuring durability and optical clarity.
Types of Light Pipes:
1. Rigid Light Pipes: Solid, straight, or bent rods used for direct light transmission in industrial equipment, automotive dashboards, and medical devices.
2. Flexible Light Pipes: Bendable optical fibers or tubes suited for complex routing in confined spaces, such as consumer electronics or aerospace systems.
3. Surface-Mount (SMD) Light Pipes: Compact, PCB-mounted solutions for LED indicators in electronics, appliances, and control panels.
4. Custom Light Pipes: Tailored shapes (e.g., diffused, tapered) for specialized applications like backlighting or decorative lighting.
Purchasing Recommendations:
- Material Selection: Choose acrylic for cost-effective clarity or polycarbonate for impact resistance in harsh environments.
- Length/Diameter Matching: Ensure compatibility with your light source (e.g., LED size) and installation space.
- Light Diffusion Needs: Opt for frosted or textured finishes if uniform illumination is required.
- Industry Standards: Verify IP ratings for moisture/dust resistance in outdoor or industrial use.
- Supplier Expertise: Partner with manufacturers offering prototyping support for custom geometries.
Light pipes bridge functionality and design in optoelectronic systems selecting the right type enhances visibility, energy efficiency, and user experience.
Filter and sort
Categories

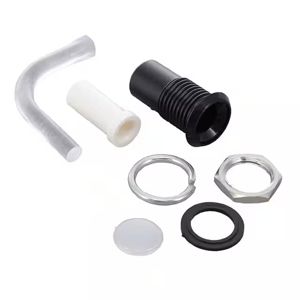

RHD-0900-1500-F9PD67PR
IP67 RIGID LIGHT PIPE RT ANGLE

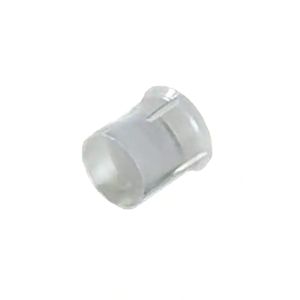

PLPC1-125
LIGHT PIPE PNL MNT 1MM RND .125"

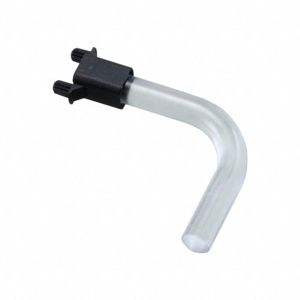

LPR5-1250-1000DP
LIGHT PIPE RIGID RA 4.93MM DIA

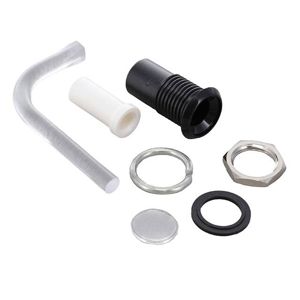

RHD-0900-2000-F9P67PR
IP67 RIGID LIGHT PIPE RT ANGLE

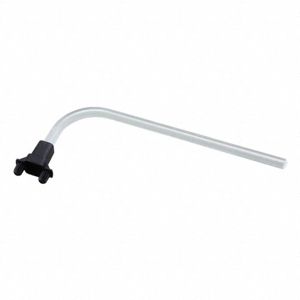

LPR4-0800-2500DP
LIGHT PIPE RIGID RA 3.91MM DIA

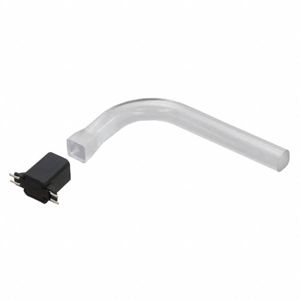

LPR5-1000-1500D-R130
RED/640NM
LPR5-1000-1500D-B150
BLUE/465NM

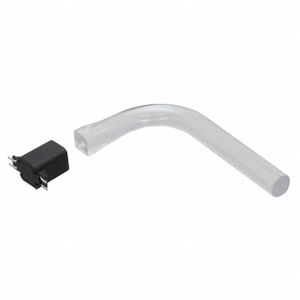

LPR5-1000-1500F-G850
GREEN/520NM

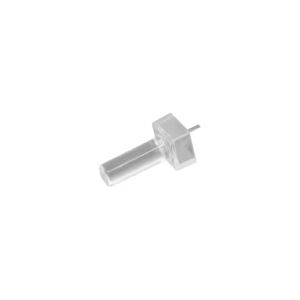

VBL3F0400C
VBL SERIES,PCB MOUNT,3MM,.4"L,FL
LPR5-1000-2000D-B150
BLUE/465NM

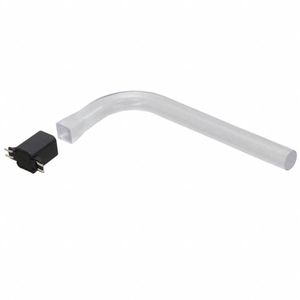

LPR5-1000-2000F-RGB
RED 643NM/GREEN 515NM/BLUE 460NM

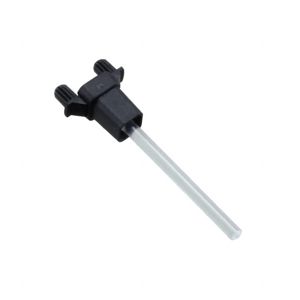

LPV2-1250DP
LIGHT PIPE RIGID 2.01MM DIA

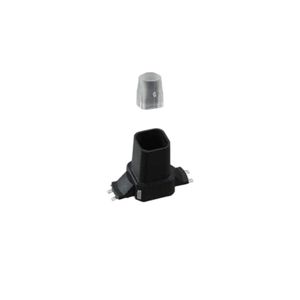

LPV4-0350D-R480
RED/630NM

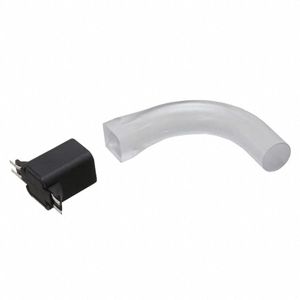

LPR5-0800-0700D-RG
RED 640NM/GREEN 520NM

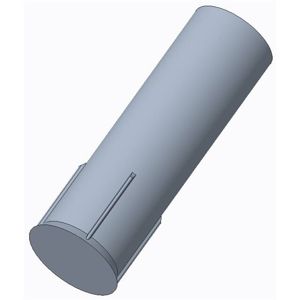

51513130375F
PMVLP CSINK FLUSH MOUNT.123" X .

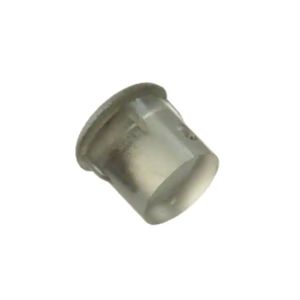

PLP1-125-S
LIGHT PIPE PNL 3MM SMOKED 0.125"

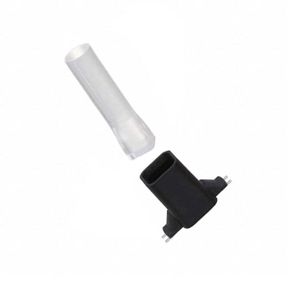

LPV4-0750D-G850
GREEN/520NM

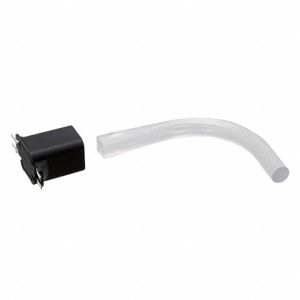

LPR3-1000-0700F-A220
AMBER/610NM

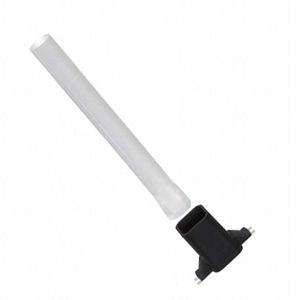

LPV4-1500F-RG
RED 640NM/GREEN 520NM

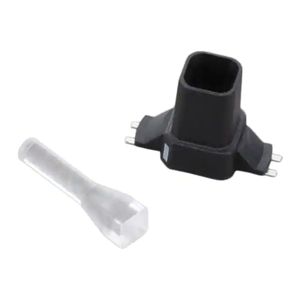

LPV2-0600D-R480
RED/630NM
