Optics - Light Pipes: Illuminating Solutions for Optoelectronic Applications
Definition:
Light pipes, a specialized category within Optoelectronics, are optical components designed to efficiently transmit and distribute light from a source to a desired location. These devices utilize principles of total internal reflection (TIR) to guide light with minimal loss, making them ideal for applications requiring precise illumination, signal indication, or aesthetic lighting. Light pipes are commonly constructed from high-quality materials like acrylic, polycarbonate, or glass, ensuring durability and optical clarity.
Types of Light Pipes:
1. Rigid Light Pipes: Solid, straight, or bent rods used for direct light transmission in industrial equipment, automotive dashboards, and medical devices.
2. Flexible Light Pipes: Bendable optical fibers or tubes suited for complex routing in confined spaces, such as consumer electronics or aerospace systems.
3. Surface-Mount (SMD) Light Pipes: Compact, PCB-mounted solutions for LED indicators in electronics, appliances, and control panels.
4. Custom Light Pipes: Tailored shapes (e.g., diffused, tapered) for specialized applications like backlighting or decorative lighting.
Purchasing Recommendations:
- Material Selection: Choose acrylic for cost-effective clarity or polycarbonate for impact resistance in harsh environments.
- Length/Diameter Matching: Ensure compatibility with your light source (e.g., LED size) and installation space.
- Light Diffusion Needs: Opt for frosted or textured finishes if uniform illumination is required.
- Industry Standards: Verify IP ratings for moisture/dust resistance in outdoor or industrial use.
- Supplier Expertise: Partner with manufacturers offering prototyping support for custom geometries.
Light pipes bridge functionality and design in optoelectronic systems selecting the right type enhances visibility, energy efficiency, and user experience.
Filter and sort
Categories

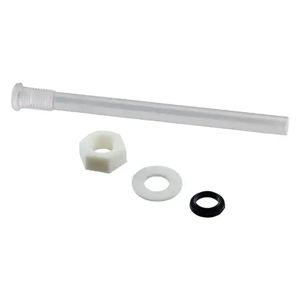

PLTR5-2500-PR1
LIGHT PIPE RIGID SINGLE 5MM

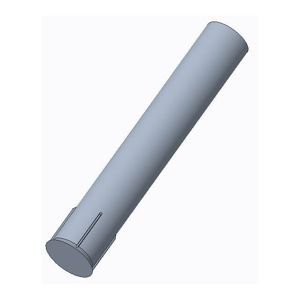

51513130700F
PMVLP CSINK FLUSH MOUNT.123" X .

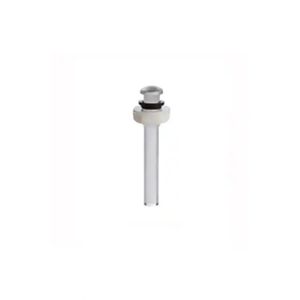

PLTR2-2000-PR1
LIGHT PIPE RIGID SINGLE 3.5MM
RHD-0900-2000-F9PZG67PR
IP67 RIGID LIGHT PIPE RT ANGLE

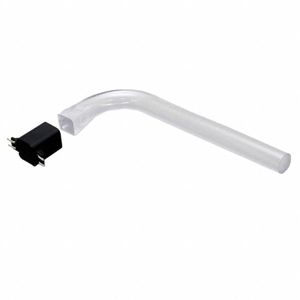

LPR5-0800-2000D-B150
BLUE/465NM
LPV4-1000D-W305
WHITE/9800 K

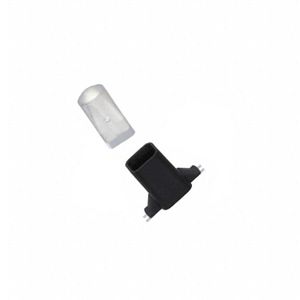

LPV3-0350D-R130
RED/640NM
LPR3-1250-2000FP
LIGHT PIPE RIGID RA 2.92MM DIA

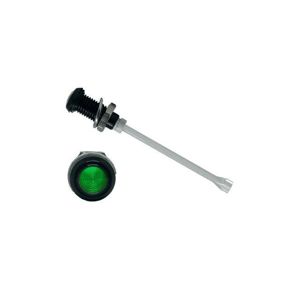

RHD-2140-F9PZG67PR
IP67 RIGID LIGHT PIPE, VERTICAL

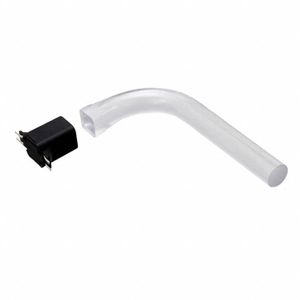

LPR5-0800-1500D-A220
AMBER/610NM

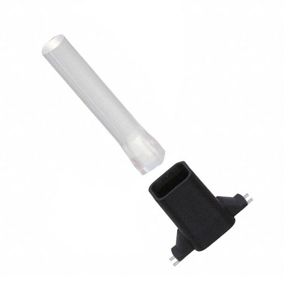

LPV4-1000F-G850
GREEN/520NM
PLPQ2-100-FF
LIGHT PIPE PNL 2MM SQUARE .100"
5151153F
LIGHT PIPE 10ELEM .118X.060"RECT

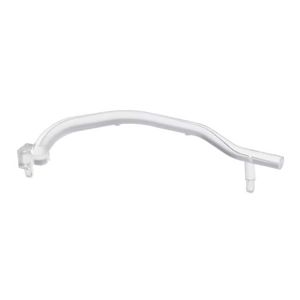

5151136F
LIGHT PIPE SGL RT 3.05MM ROUND
LPR4-1000-0700F-Y50
YELLOW/570NM

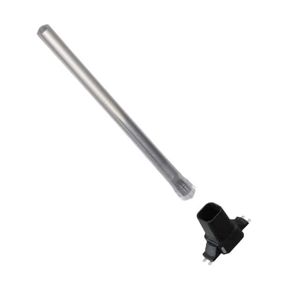

LPV3-2000D-RG
RED 640NM/GREEN 520NM

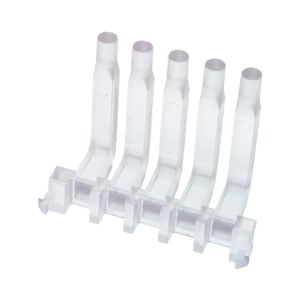

LPF-C051303S
LIGHT PIPE 2.8MM 5POS RA SMD

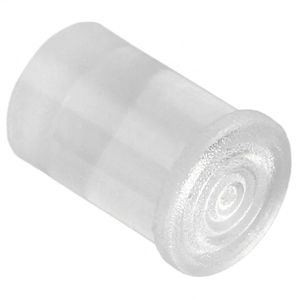

LPC_024_CTP
LIGHT PIPE ROUND 4MM CLEAR
FLXR1GTP12
RUGGD FLEX LIGHTPIPE BLK 12" GRN

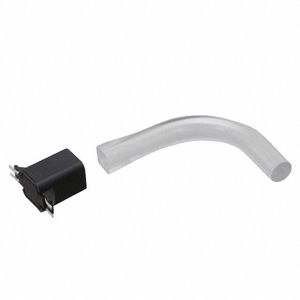

LPR4-1000-0700F-RGB
RED 643NM/GREEN 515NM/BLUE 460NM
