Optics - Light Pipes: Illuminating Solutions for Optoelectronic Applications

Definition:
Light pipes, a specialized category within Optoelectronics, are optical components designed to efficiently transmit and distribute light from a source to a desired location. These devices utilize principles of total internal reflection (TIR) to guide light with minimal loss, making them ideal for applications requiring precise illumination, signal indication, or aesthetic lighting. Light pipes are commonly constructed from high-quality materials like acrylic, polycarbonate, or glass, ensuring durability and optical clarity.

Types of Light Pipes:

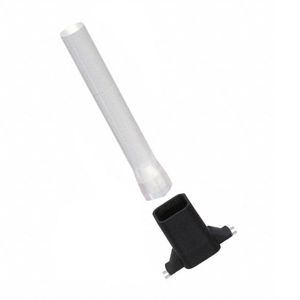

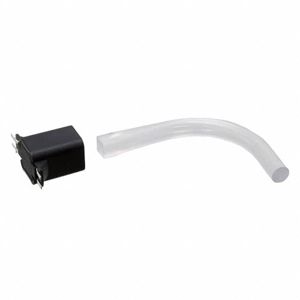

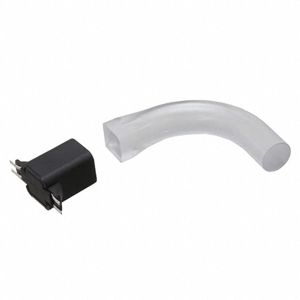

1. Rigid Light Pipes: Solid, straight, or bent rods used for direct light transmission in industrial equipment, automotive dashboards, and medical devices.

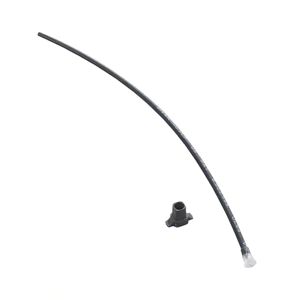

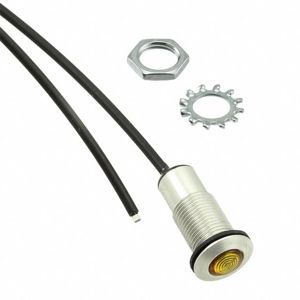

2. Flexible Light Pipes: Bendable optical fibers or tubes suited for complex routing in confined spaces, such as consumer electronics or aerospace systems.

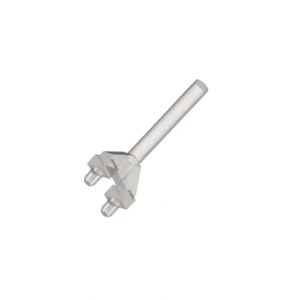

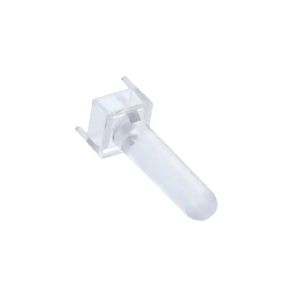

3. Surface-Mount (SMD) Light Pipes: Compact, PCB-mounted solutions for LED indicators in electronics, appliances, and control panels.
4. Custom Light Pipes: Tailored shapes (e.g., diffused, tapered) for specialized applications like backlighting or decorative lighting.

Purchasing Recommendations:
- Material Selection: Choose acrylic for cost-effective clarity or polycarbonate for impact resistance in harsh environments.
- Length/Diameter Matching: Ensure compatibility with your light source (e.g., LED size) and installation space.
- Light Diffusion Needs: Opt for frosted or textured finishes if uniform illumination is required.
- Industry Standards: Verify IP ratings for moisture/dust resistance in outdoor or industrial use.
- Supplier Expertise: Partner with manufacturers offering prototyping support for custom geometries.

Light pipes bridge functionality and design in optoelectronic systems selecting the right type enhances visibility, energy efficiency, and user experience.
