Photovoltaic (Solar Panel) Connectors
Photovoltaic (Solar Panel) Connectors Category Overview
Definition of Photovoltaic (Solar Panel) Connectors
Photovoltaic (PV) connectors, also known as solar panel connectors, are specialized interconnects designed for solar energy systems. These components ensure secure, weather-resistant, and low-resistance electrical connections between solar panels, inverters, charge controllers, and other system components. Engineered for durability and efficiency, PV connectors play a critical role in maximizing energy transfer while withstanding harsh environmental conditions such as UV exposure, moisture, and extreme temperatures.
Types of Photovoltaic Connectors
- MC4 & MC4-Compatible Connectors The industry standard, featuring a snap-lock mechanism for secure, tool-free installation.
- MC3 Connectors An older variant, less common today but still found in some legacy systems.
- Amphenol H4 & Radox Connectors High-performance alternatives with enhanced thermal and mechanical stability.
- Tyco SolarLok & Multi-Contact STEDI Series Designed for heavy-duty applications, offering superior conductivity and longevity.
- Waterproof & IP68-Rated Connectors Essential for off-grid or marine solar installations where moisture resistance is critical.
Buying Recommendations for Solar Panel Connectors
- Compatibility Ensure connectors match your system s voltage/current ratings and are compatible with existing wiring (e.g., MC4-to-MC4 or MC4-to-other types).
- Certification Look for TUV, UL, or IEC 62852 compliance to guarantee safety and performance.
- Material Quality Opt for UV-resistant, flame-retardant housings and gold-plated contacts to minimize power loss.
- Ease of Installation Pre-assembled connectors with crimping tools reduce setup time, while field-installable versions offer flexibility.
- Supplier Reliability Source from trusted manufacturers (e.g., Amphenol, TE Connectivity, Staubli) to avoid counterfeit products that risk system failure.
By selecting the right PV connectors, you enhance system efficiency, reduce maintenance costs, and ensure long-term reliability in solar energy applications.
Filter and sort
Categories

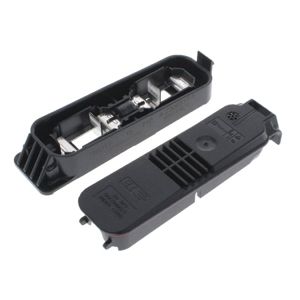

4-2306317-5
PV EDGE J BOX CENT E-W OMG
H4CFN8DC
CONN FMALE COUPLER PLUS 8AWG

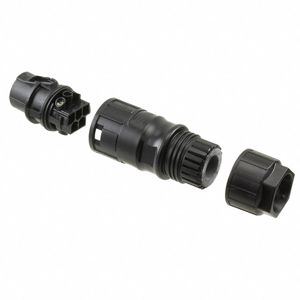

1409205
CONN MALE COUPLER

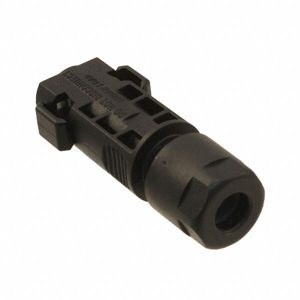

1302440202
CONN ML COUPL HSG MINUS 10-12AWG

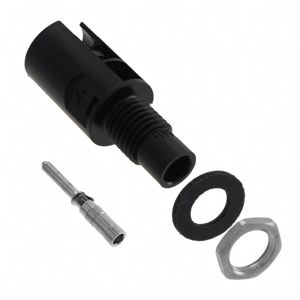

2120382-3
CONN CONVERTER RCPT PLUS 12AWG

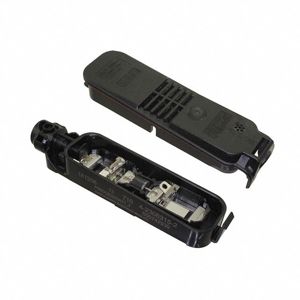

4-2306315-2
PV EDGE J BOX -PV4 E-W S

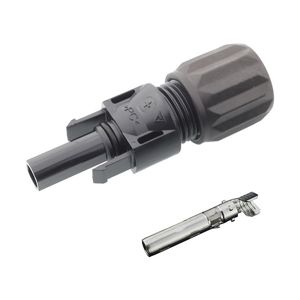

HH4CFD4TMS
CONN FMALE COUPLER PLUS 10-12AWG

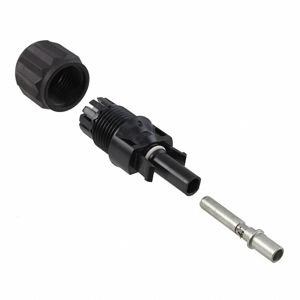

H4CFC8DI
CONN FMALE COUPLER PLUS 8AWG

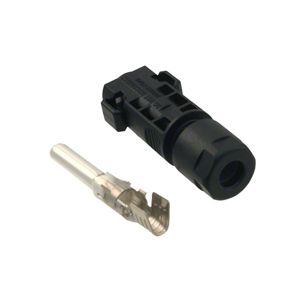

1302441202
CONN MALE COUPLER MINUS 10-12AWG

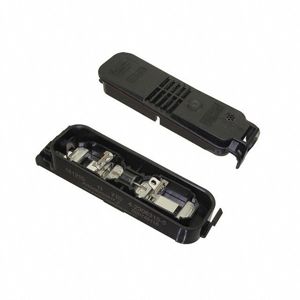

4-2306315-5
PV EDGE J BOX CENT E-W S

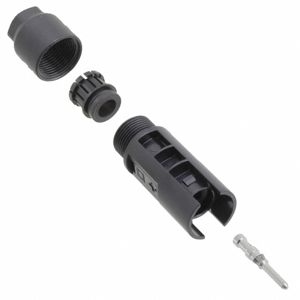

1394461-7
CONN MALE COUPLER PLUS 14AWG
1302440203
CONN FMALE COUPLR HSG PLUS 14AWG

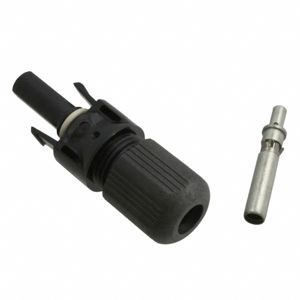

H4CFC2DI
CONN FMALE COUPLER PLUS 14AWG

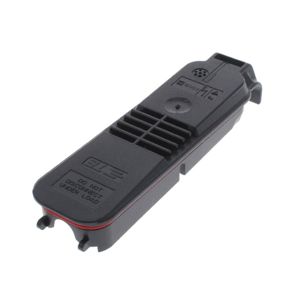

4-2306317-2
PV EDGE J BOX -PV4 E-W OMG

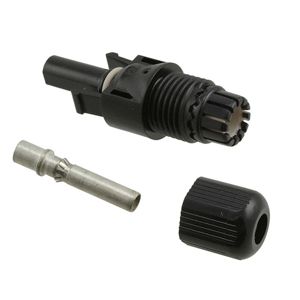

H4CFC6DI
CONN FMALE COUPLER PLUS 10AWG
6-1394461-4
CONN MALE COUPLER UNKEYED 10AWG

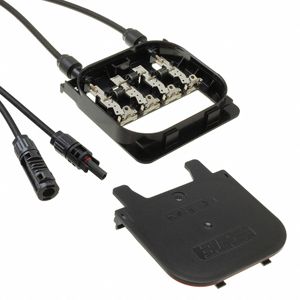

2270176-1
CONN MODULE BOX ASSY MINUS/PLUS

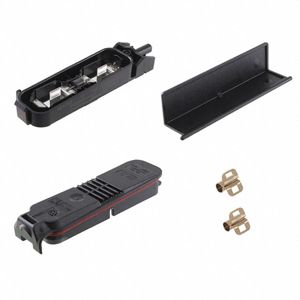

1-2306316-1
PV EDGE J BOX +PV4 FLAP N-S OMG

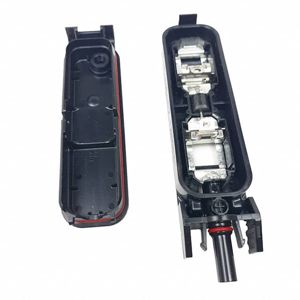

5-2306315-1
PV EDGE J BOX +PV4 E-W S MT

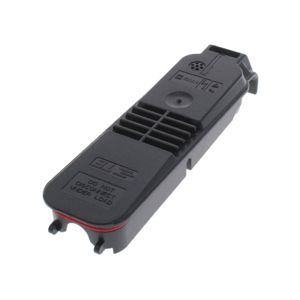

2307520-2
PV EDGE J BOX -PV4 JFLP N-S S
