PMIC - Hot Swap Controllers
PMIC - Hot Swap Controllers: Precision Power Management for Seamless Integration
Definition:
PMIC - Hot Swap Controllers are specialized integrated circuits (ICs) within the Power Management IC (PMIC) category, designed to safely manage the insertion and removal of electronic components in live (hot-swappable) systems. These controllers prevent voltage spikes, inrush currents, and other electrical disturbances, ensuring smooth power transitions and protecting sensitive circuitry in servers, networking equipment, and industrial applications.
Types of Hot Swap Controllers:
1. Linear Hot Swap Controllers: Use pass transistors to regulate current gradually, ideal for low-voltage boards.
2. FET-Based Hot Swap Controllers: Employ external MOSFETs for higher power handling, common in enterprise hardware.
3. Digital Hot Swap Controllers: Feature programmable current limits and fault diagnostics via I2C/PMBus, suited for smart systems.
4. High-Voltage Controllers: Built for industrial environments (e.g., 48V+ telecom backplanes).
Purchasing Recommendations:
- Current/Voltage Ratings: Match the controller s range to your system s load requirements (e.g., 0-20A, 3.3V-48V).
- Protection Features: Prioritize devices with OVP (Overvoltage Protection), UVLO (Undervoltage Lockout), and thermal shutdown.
- Interface Compatibility: Select digital controllers with PMBus for automated power management in data centers.
- Package & Integration: Opt for QFN or SOIC packages for space-constrained designs; ensure compatibility with external MOSFETs if needed.
Hot Swap Controllers are critical for minimizing downtime in mission-critical systems choose a solution that balances robustness with precision for optimal reliability.
Filter and sort
Categories

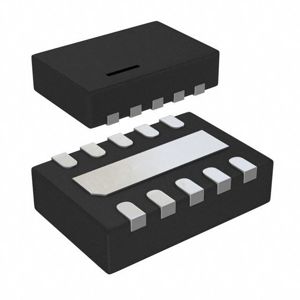

LTC4224CDDB-1#TRPBF
IC HOT SWAP CTRLR GP 10DFN

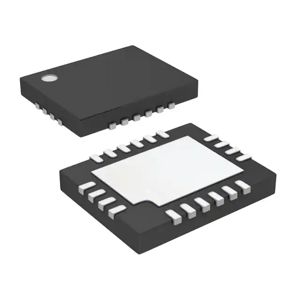

LTC4235CUFD-1#TRPBF
IC HOT SWAP CTRLR GP 20QFN

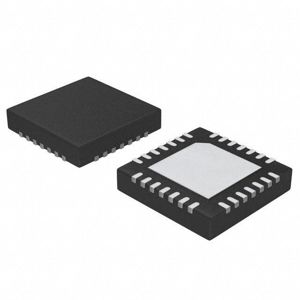

MAX15091AETI+T
IC HOT SWAP CTRLR GP 28TQFN

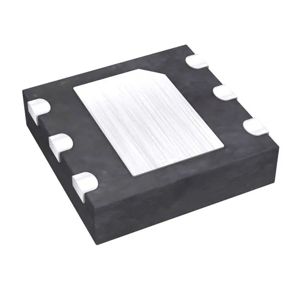

MAX5903ABETT+T
IC HOT-SWAP CONTROLLER 6-TDFN
TPS24712DGSR
IC HOT SWAP CTRLR GP 10VSSOP
MAX5917BESE+T
IC HOT SWAP CTR NETWORKNG 16SOIC
LTC4217CDHC-12#TRPBF
IC HOT SWAP CTRLR GP 16DFN
ADM1178-2ARMZ-R7
IC HOT SWAP CTRLR GP 10MSOP

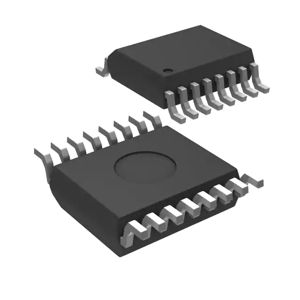

MIC2583-MYQS-TR
IC HOT SWAP CTRLR GP 16QSOP

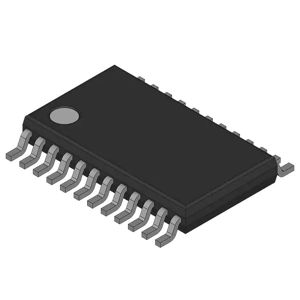

MIC2585-1JYTS
DUAL-CH HOT SWAP CONTROLLER
LTC4238IUFD#TRPBF
HIGHVOLTAGE, HIGHPOWER HOTSWAP C

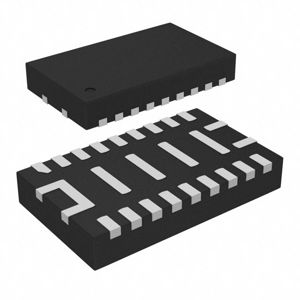

MPQ5066GQV-AEC1-Z
28V, 6A, 7M RDS(ON) HOT-SWAP PRO
ISL6115AIBZ
IC HOT SWAP CTRLR GP 8SOIC

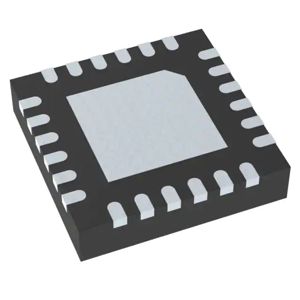

TPS24740RGET
IC HOT SWAP CTRLR GP 24VQFN
LTC4251CS6#TRMPBF
IC HOT SWAP CTRLR -48V SOT23-6
LTC1642AIGN#PBF
IC HOTSWAP CTR INFINIBAND 16SSOP
LTC4253BCGN#TRPBF
IC HOT SWAP CTRLR -48V 16SSOP

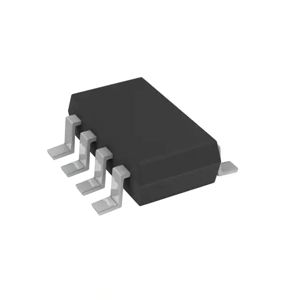

ADM1170-1AUJZ-RL7
IC HOT SWAP CTRLR GP TSOT23-8
ISL6151IB
POWER SUPPLY CIRCUIT, ADJ

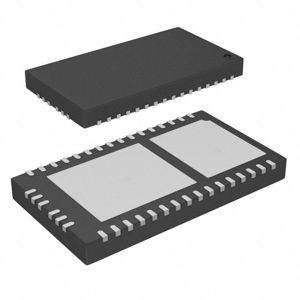

LTC4233CWHH#TRPBF
IC HOT SWAP CTRLR GP 38QFN
