PMIC - Hot Swap Controllers
PMIC - Hot Swap Controllers: Precision Power Management for Seamless Integration
Definition:
PMIC - Hot Swap Controllers are specialized integrated circuits (ICs) within the Power Management IC (PMIC) category, designed to safely manage the insertion and removal of electronic components in live (hot-swappable) systems. These controllers prevent voltage spikes, inrush currents, and other electrical disturbances, ensuring smooth power transitions and protecting sensitive circuitry in servers, networking equipment, and industrial applications.
Types of Hot Swap Controllers:
1. Linear Hot Swap Controllers: Use pass transistors to regulate current gradually, ideal for low-voltage boards.
2. FET-Based Hot Swap Controllers: Employ external MOSFETs for higher power handling, common in enterprise hardware.
3. Digital Hot Swap Controllers: Feature programmable current limits and fault diagnostics via I2C/PMBus, suited for smart systems.
4. High-Voltage Controllers: Built for industrial environments (e.g., 48V+ telecom backplanes).
Purchasing Recommendations:
- Current/Voltage Ratings: Match the controller s range to your system s load requirements (e.g., 0-20A, 3.3V-48V).
- Protection Features: Prioritize devices with OVP (Overvoltage Protection), UVLO (Undervoltage Lockout), and thermal shutdown.
- Interface Compatibility: Select digital controllers with PMBus for automated power management in data centers.
- Package & Integration: Opt for QFN or SOIC packages for space-constrained designs; ensure compatibility with external MOSFETs if needed.
Hot Swap Controllers are critical for minimizing downtime in mission-critical systems choose a solution that balances robustness with precision for optimal reliability.
Filter and sort
Categories
MAX34565ETB+
IC HOT SWAP CTRLR PCI EXP 10TDFN
TPS24711DGSR
IC HOT SWAP CTRLR GP 10VSSOP

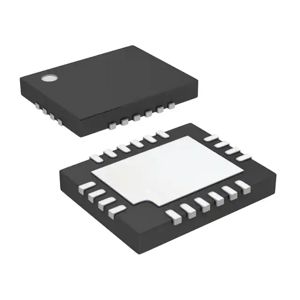

LTC4227IUFD-3#TRPBF
IC HOT SWAP CTRLR GP 20QFN
MAX5906EEE+T
IC HOT SWAP CTRLR PCI EXP 16QSOP

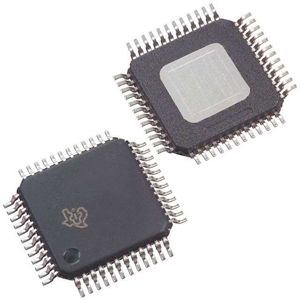

TPS2341PHP
IC HOT PLUG CTRLR PCI 48HTQFP
LTC4350IGN#PBF
IC HOT SWAP CTRLR GP 16SSOP
LTC4216IMS#TRPBF
IC HOT SWAP CTRLR GP 10MSOP
TPS24710DGS
IC HOT SWAP CTRLR GP 10VSSOP
MAX5947BESA+
IC HOT SWAP CTRLR GP 8SOIC
LTC4216CMS#PBF
IC HOT SWAP CTRLR GP 10MSOP
LM5067MM-2/NOPB
IC HOT SWAP CTRLR -48V 10VSSOP
LTC4215CUFD#TRPBF
IC HOT SWAP CTRLR GP 24QFN
MAX5921BESA+
IC HOT SWAP CTRLR -48V 8SOIC
LTC4230CGN#PBF
IC HOT SWAP CTRLR GP 20SSOP

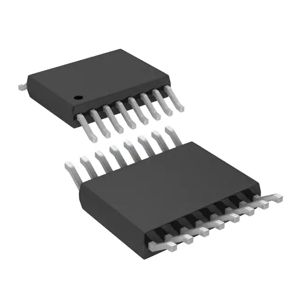

LTC4226IMS-1#TRPBF
IC HOT SWAP CTRLR GP 16MSOP
LT4256-3CGN#TRPBF
IC HOT SWAP CTRLR GP 16SSOP
LT1641-2IS8#PBF
IC HOT SWAP CTRLR GP 8SOIC

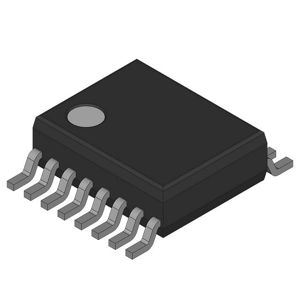

MIC2583R-JYQS
SINGLE CHANNEL HOT SWAP CONTROLL
LTC4252-1CMS#PBF
IC HOT SWAP CTRLR -48V 10MSOP

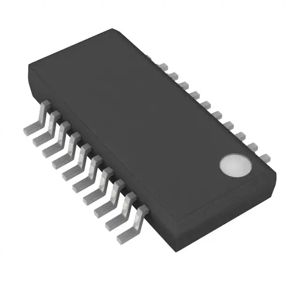

MAX5931BEEP+
IC HOT-SWAP CTRLR TRPL 20-QSOP
