Definition:
PMIC (Power Management Integrated Circuit) - OR Controllers and Ideal Diodes are specialized components designed to manage power distribution, redundancy, and efficiency in electronic systems. OR Controllers facilitate seamless power source switching between multiple inputs (e.g., primary and backup supplies), while Ideal Diodes emulate the behavior of traditional diodes with near-zero voltage drop, minimizing power loss and heat generation. These ICs are critical in applications requiring uninterrupted power delivery and optimized energy efficiency.
Product Types:
1. OR Controllers: Automatically select the highest available voltage from multiple inputs, ensuring continuous operation in failover scenarios. Common in servers, telecom, and automotive systems.
2. Ideal Diode Controllers: Replace physical diodes with MOSFET-based solutions, reducing forward voltage loss (e.g., from 0.7V to ~20mV). Ideal for battery-powered devices, solar panels, and hot-swap circuits.
3. Integrated ORing + Ideal Diode Solutions: Combine both functionalities for compact designs, such as in PoE (Power over Ethernet) systems or industrial backup modules.
Purchasing Recommendations:
- Voltage/Current Ratings: Match the IC s input/output specs (e.g., 12V/5A) to your system s requirements.
- Protection Features: Prioritize devices with built-in overvoltage (OVP), reverse-current (RCP), and thermal shutdown protection.
- Package & Integration: Opt for space-saving packages (e.g., DFN, QFN) for high-density PCBs, or modules with minimal external components.
- Industry Compliance: Verify certifications like AEC-Q100 for automotive or ISO 7637 for surge tolerance.
Why Choose This Category?
These ICs enhance system reliability, reduce energy waste, and simplify design complexity key for mission-critical power architectures. Browse our curated selection to find industry-leading solutions from Texas Instruments, Analog Devices, and Maxim Integrated.
Filter and sort
Categories
LTC4421IUHE#TRPBF
HP PRIORTIZED POWERPATH CONTROLL

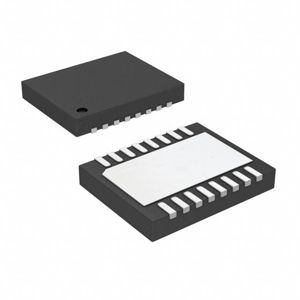

LTC4376HDHD#TRPBF
7A IDEAL DIODE WITH REVERSE INPU
TPS2411RMSR
O-RING CONTROLLER
LTC4372CDD#PBF
LOW ICC IDEAL DIODE CONTROLLER W
LT4320HN8-1#PBF
IC OR CTRLR BRIDGE RECT 8DIP

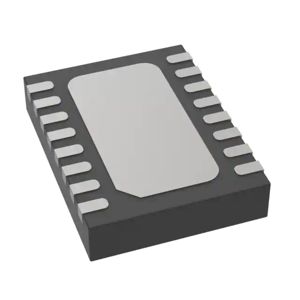

LTC4370CDE#TRPBF
IC OR CTRLR N-CH 2CH 16DFN
TPS2100DBVR
IC OR CTRLR SRC SELECT SOT23-5
LTC4352IDD#TRPBF
IC OR CTRLR N+1 12DFN

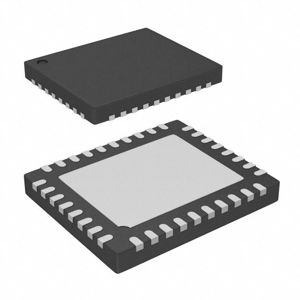

LTC4421IUHE#PBF
HP PRIORTIZED POWERPATH CONTROLL

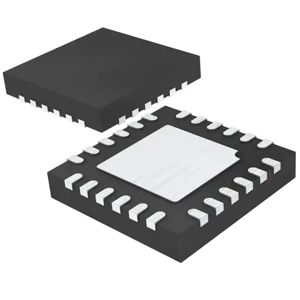

LTC4417HUF#TRPBF
IC OR CTRLR SRC SELECT 24QFN
TPS2111APW
IC OR CTRLR SRC SELECT 8TSSOP
ISL6146DFRZ-T7A
IC OR CTRLR N+1 8DFN
LTC4359HMS8#WPBF
IDEAL DIODE CNTR W/ REVERSE IN P
LTC4419CMSE#PBF
IC SOURCE SELECTOR SWITCH 12MSOP
LTC4354IS8#TRPBF
IC OR CTRLR SRC SELECT 8SOIC
LTC4421CUHE#PBF
HP PRIORTIZED POWERPATH CONTROLL
ISL6146CFRZ-TK
IC OR CTRLR N+1 8DFN
LTC4373CMS8#TRPBF
LOW ICC IDEAL DIODE CONTROLLER W
TPS2112APWR
IC OR CTRLR SRC SELECT 8TSSOP

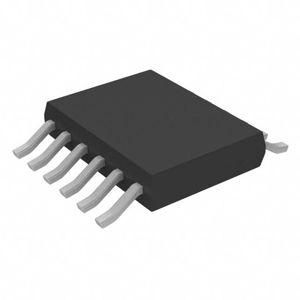

LTC4352CMS#TRPBF
IC OR CTRLR N+1 12MSOP
