PMIC - Supervisors: Precision Power Management for Reliable System Performance

Definition:
PMIC - Supervisors (Power Management Integrated Circuit Supervisors) are specialized ICs designed to monitor and control power supply voltages in electronic systems. These components ensure stable operation by detecting undervoltage, overvoltage, or power sequencing faults, and triggering corrective actions (e.g., reset signals or shutdowns) to protect sensitive circuitry. Critical for system integrity, they are widely used in applications demanding high reliability, such as industrial automation, automotive systems, and embedded computing.

Types of PMIC - Supervisors:
1. Voltage Supervisors: Monitor single or multiple voltage rails, providing reset signals when thresholds are breached.
2. Sequencing Supervisors: Ensure proper power-up/down sequences for multi-rail systems (e.g., FPGAs or processors).
3. Window Voltage Supervisors: Trigger resets if voltages deviate from a defined range (min/max thresholds).
4. Adjustable Threshold Supervisors: Allow customization of voltage monitoring levels via external components.
5. Watchdog Timers: Integrate time-based monitoring to detect system hangs, adding fail-safe redundancy.

Purchasing Recommendations:
- Voltage Range Compatibility: Match the supervisor s operating range (e.g., 1.8V, 3.3V, 5V) to your system s rails.
- Reset Timing: Select devices with configurable or fixed delay periods to align with processor requirements.
- Package & Integration: Opt for space-saving options (e.g., SOT-23, DFN) for compact designs, or multi-channel ICs for complex systems.
- Industry Certifications: For automotive (AEC-Q100) or industrial (wide-temperature) applications, prioritize certified components.
- Supplier Support: Partner with distributors offering technical documentation (datasheets, reference designs) and scalable inventory.

Integrated into broader Integrated Circuits (ICs) solutions, PMIC - Supervisors mitigate risks of power-related failures, ensuring long-term system durability. Evaluate your design s criticality, environmental conditions, and compliance needs to select the optimal variant.

IC SUPERVISOR 1 CHANNEL SOT23-5

Shopping cart

PMIC - Supervisors

Filter and sort

Categories

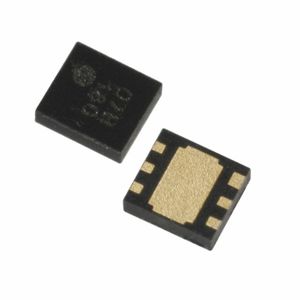

XC6121D345ER-G

R3119N025A-TR-FE

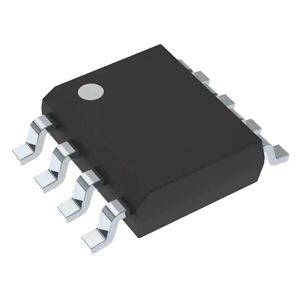

CAT1163WI-28-G

XC6122C627ER-G

APX810S00-44SA-7

XC6122A234MG-G

XC6123E450MR-G

XC6124A330MR-G

TPS3899PL16DSERQ1

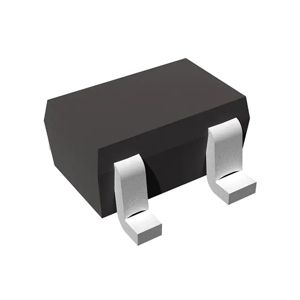

R3116Q251C-TR-FE

XC6122E649ER-G

XC6124C528ER-G

MAX6386XS16D3+T

MAX825ZEXK

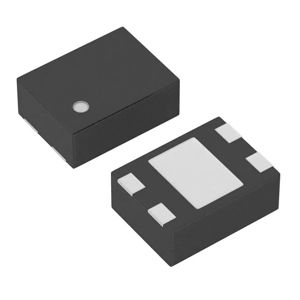

XC6118C41CGR-G

MAX6760TATID3+T

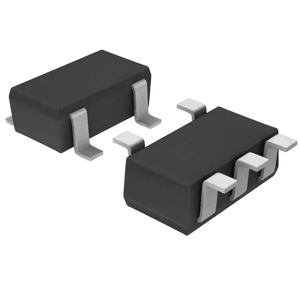

BD46472G-TR

BD46381G-TR

XC6124D727MR-G

MAX6316MUK47BY-T
