Rectangular Connectors - Board Spacers, Stackers (Board to Board)
Rectangular Connectors - Board Spacers, Stackers (Board to Board) - Category Overview
Definition
Rectangular Connectors - Board Spacers and Stackers (Board to Board) are specialized interconnect components designed to provide secure, precise, and stable spacing or stacking between printed circuit boards (PCBs). These connectors ensure proper alignment, electrical continuity, and mechanical support in multi-board systems, enabling efficient signal transmission and modular design configurations.
Types of Board Spacers & Stackers
This category includes several key product types, each serving distinct applications:
- Standoffs & Spacers: Non-conductive or metallic threaded spacers that maintain fixed distances between boards while providing structural rigidity.
- Board-to-Board Stacking Connectors: Compact, high-density connectors that vertically stack PCBs with precise pitch options (e.g., 0.5mm to 2.54mm) for space-constrained designs.
- Male/Female Header Systems: Gender-defined interconnects with locking mechanisms for secure mating in stacked configurations.
- Floating & Rigid Stacking Solutions: Adjustable or fixed-height connectors accommodating tolerance variations or rigid alignment needs.
Purchasing Recommendations
When selecting Board Spacers or Stackers, consider:
1. Pitch & Height Requirements: Match connector pitch to PCB layout specs and ensure stack height meets clearance needs.
2. Current Rating & Signal Integrity: Verify current capacity and impedance for power/signal applications (e.g., high-speed data vs. power delivery).
3. Material & Durability: Opt for high-temperature plastics (e.g., PBT) or metal housings for harsh environments.
4. Locking Mechanisms: Prioritize connectors with latching features (e.g., snap-fit, screws) to prevent dislodging in vibration-prone systems.
5. Compliance Standards: Check for UL, IEC, or RoHS certifications to meet industry safety and environmental regulations.
Ideal for applications like industrial automation, telecommunications, and consumer electronics, these connectors streamline modular designs while ensuring reliability. Evaluate vendor specs for customization options (e.g., stack height, plating) to optimize your assembly.
Filter and sort
Categories

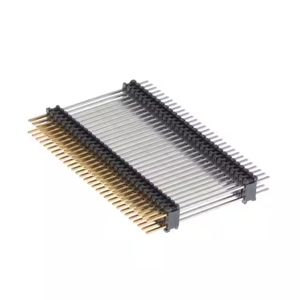

DWM-30-61-L-D-768
CONN BRD STACK .050" 60POS

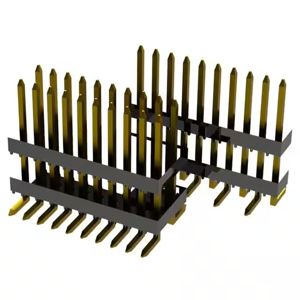

BSTCM-605-D-08-GT-260-TR-P-LF
.050 x .100 Header

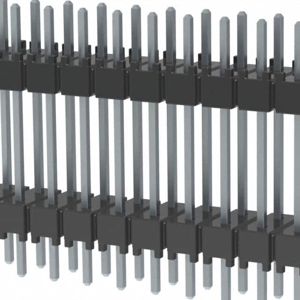

DW-14-10-T-D-500
CONN HDR 28POS 0.1 STACK T/H TIN

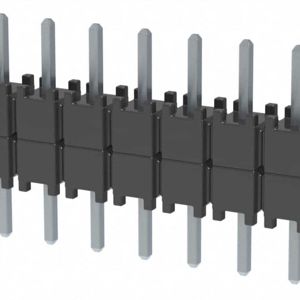

DW-24-07-T-S-200
CONN HDR 24POS 0.1 STACK T/H TIN

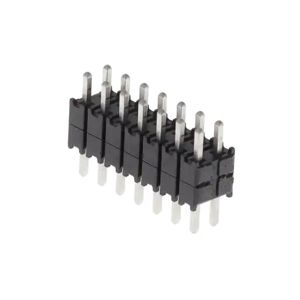

DW-07-07-T-D-200
CONN HDR 14POS 0.1 STACK T/H TIN

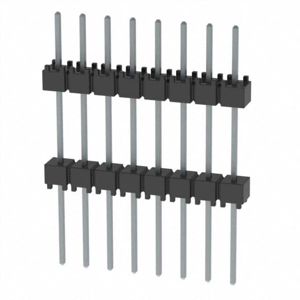

EW-08-12-T-S-500
CONN HDR 8POS 0.1 STACK T/H TIN

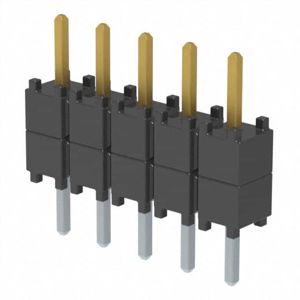

DW-05-07-L-S-200
CONN HDR 5POS 0.1 STACK T/H GOLD

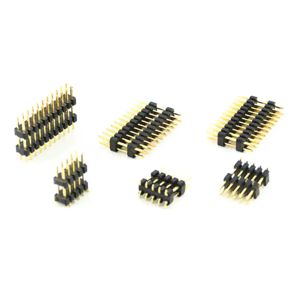

2114-2X03G00S-3.2-3.2-12B
PIN HEADER, DOUBLE ROW, 6 PIN, S

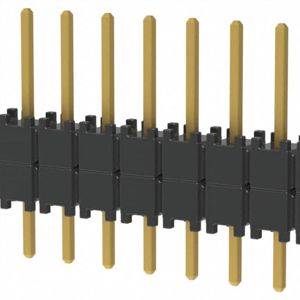

DW-09-08-G-S-200
CONN HDR 9POS 0.1 STACK T/H GOLD

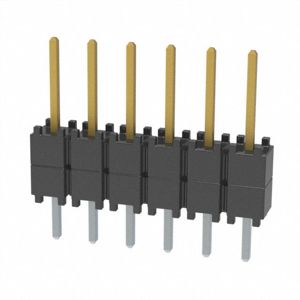

DW-06-08-L-S-200
CONN HDR 6POS 0.1 STACK T/H GOLD

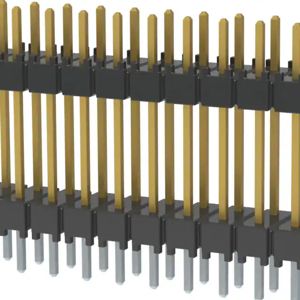

DW-20-10-S-D-500
CONN HDR 40POS 0.1 STACK T/H
DW-09-10-T-D-500
CONN HDR 18POS 0.1 STACK T/H TIN

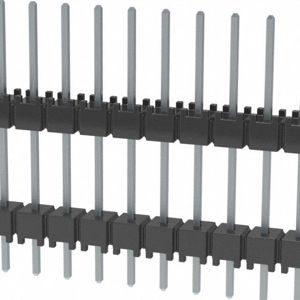

DW-16-10-T-S-450
CONN HDR 16POS 0.1 STACK T/H TIN

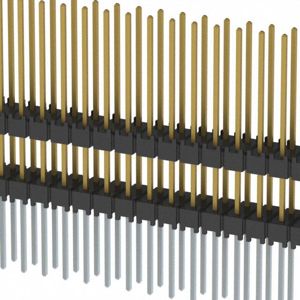

EW-36-13-L-D-400
CONN HDR 72POS 0.1 STACK T/H
DW-06-08-S-S-200
CONN HDR 6POS 0.1 STACK T/H GOLD
2012-1X02G00S-2.8-8.1-16B
PIN HEADER, SINGLE ROW, 2 PIN, S
DW-21-07-T-S-200
CONN HDR 21POS 0.1 STACK T/H TIN

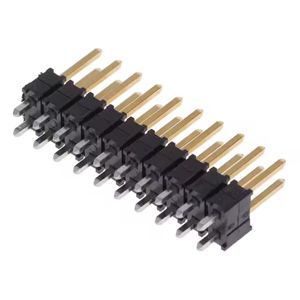

TW-10-02-S-D-120-070
CONN BRD STACK 2.00 20POS

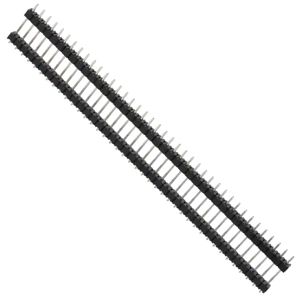

4-146460-0
CONN HDR 40POS 0.1 STACK T/H

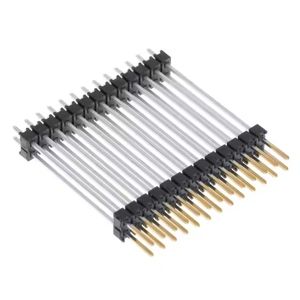

DW-13-14-F-D-1070
CONN HDR 26POS 0.1 STACK T/H
