Rectangular Connectors - Free Hanging, Panel Mount: Technical Overview & Selection Guide
Definition & Scope
Rectangular Connectors - Free Hanging and Panel Mount are robust interconnect solutions designed for secure electrical and signal transmission in industrial, automotive, and commercial applications. These connectors feature a rectangular interface, offering high-density contact arrangements, mechanical stability, and versatility in both fixed (panel-mounted) and flexible (free-hanging) configurations. They are engineered to withstand environmental stressors like vibration, moisture, and EMI, making them ideal for harsh operating conditions.
Product Types & Variations
This category includes:
1. Free-Hanging (Cable-to-Cable) Connectors: Designed for in-line connections between cables, enabling modular assembly and field repairs. Common subtypes include headers, receptacles, and shrouded connectors with locking mechanisms (e.g., screw-lock or snap-in).
2. Panel-Mount Connectors: Fixed to enclosures or equipment panels, providing secure port interfaces for power/data transfer. Subtypes feature flange-mount, thru-hole, or surface-mount designs with IP-rated sealing for protection.
3. Hybrid Solutions: Combine power and signal contacts within a single housing, reducing footprint in space-constrained applications.
Key specifications include:
- Contact Pitch: Standard (e.g., 2.54mm) to high-density ( 1mm).
- Current Rating: 1A (signal) to 50A+ (power).
- Material: High-temperature thermoplastics or metal shells for EMI shielding.
Purchasing Recommendations
1. Match Environmental Needs: For outdoor/industrial use, prioritize IP67/IP68-rated connectors with corrosion-resistant plating (e.g., gold or tin).
2. Verify Compatibility: Ensure alignment with mating connectors (gender, pinout) and compliance with standards (UL, IEC).
3. Prioritize Locking Features: Screw-lock or latch mechanisms (e.g., M8/M12-style) enhance vibration resistance.
4. Assess Future-Proofing: Modular systems (e.g., modular jacks) allow scalability for evolving connectivity needs.
This category balances durability and adaptability, making it a critical component in infrastructure requiring reliable, high-performance interconnects.
Filter and sort
Categories
1-353293-4
CONN RCPT 14POS IDC 26-28AWG TIN
15290422502000
HAR-FLEX FEMALE IDC CONNECTOR, W
89361-140LF
CONN RCPT 40POS IDC 28AWG GOLD
2-111494-3
CONN PLUG 44P IDC 26-28AWG GOLD
1-2178712-6
CONN HEADER 16POS IDC TIN

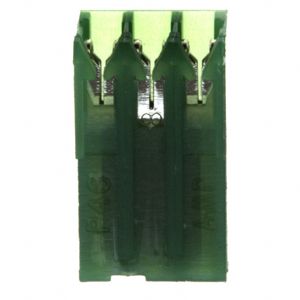

641193-3
CONN RCPT 3POS IDC 28AWG GOLD

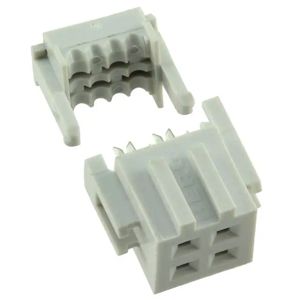

71600-104LF
CONN RCPT 4POS IDC 28-30AWG GOLD

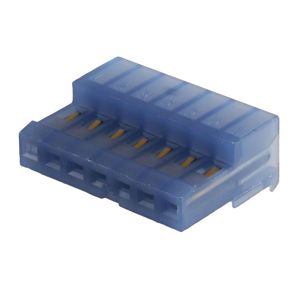

3-641239-7
CONN RCPT 7POS IDC 26AWG GOLD

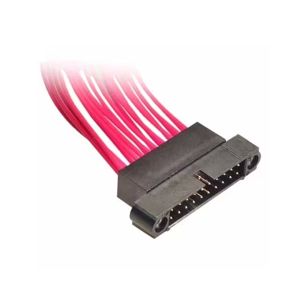

M80-5663405
CONN HEADER 34POS CRIMP 24-28AWG

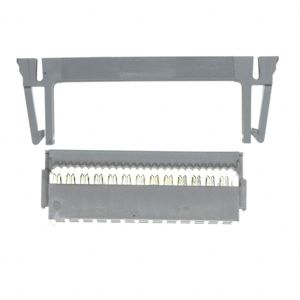

71600-626LF
CONN RCPT 26P IDC 28-30AWG GOLD
M80-7054505
CONN RCPT 45POS CRIMP 24-28AWG

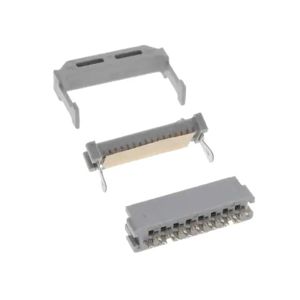

3452-6016
CONN RCPT 16P IDC 26-28AWG GOLD

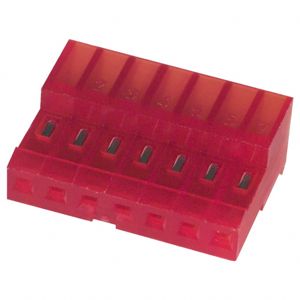

3-640440-7
CONN RCPT 7POS IDC 22AWG TIN

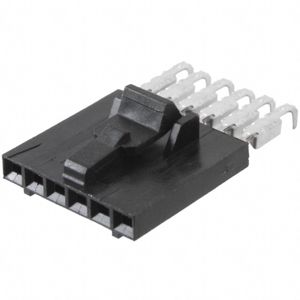

5-103960-5
CONN RCPT 6POS IDC 26-30AWG GOLD
3-640427-3
CONN RCPT 3POS IDC 20AWG TIN
M80-5651005
CONN HEADER 10P CRIMP 22AWG GOLD

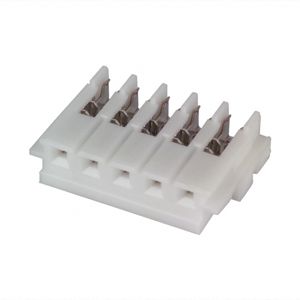

05HR-6S-P-N
CONN RCPT 5POS IDC 26AWG TIN

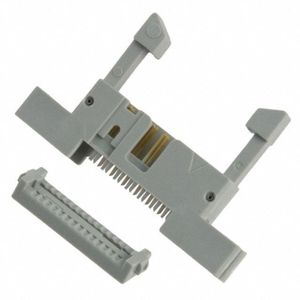

4614-6300
CONN PLUG 14P IDC 26-28AWG GOLD

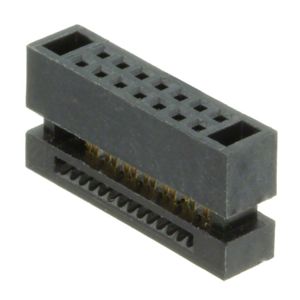

3230-14-0101-00
CONN SOCKET 14POS IDC GOLD

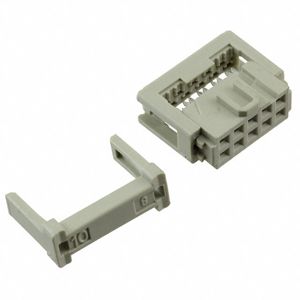

09185106814
