Rectangular Connectors - Free Hanging, Panel Mount: Technical Overview & Selection Guide
Definition & Scope
Rectangular Connectors - Free Hanging and Panel Mount are robust interconnect solutions designed for secure electrical and signal transmission in industrial, automotive, and commercial applications. These connectors feature a rectangular interface, offering high-density contact arrangements, mechanical stability, and versatility in both fixed (panel-mounted) and flexible (free-hanging) configurations. They are engineered to withstand environmental stressors like vibration, moisture, and EMI, making them ideal for harsh operating conditions.
Product Types & Variations
This category includes:
1. Free-Hanging (Cable-to-Cable) Connectors: Designed for in-line connections between cables, enabling modular assembly and field repairs. Common subtypes include headers, receptacles, and shrouded connectors with locking mechanisms (e.g., screw-lock or snap-in).
2. Panel-Mount Connectors: Fixed to enclosures or equipment panels, providing secure port interfaces for power/data transfer. Subtypes feature flange-mount, thru-hole, or surface-mount designs with IP-rated sealing for protection.
3. Hybrid Solutions: Combine power and signal contacts within a single housing, reducing footprint in space-constrained applications.
Key specifications include:
- Contact Pitch: Standard (e.g., 2.54mm) to high-density ( 1mm).
- Current Rating: 1A (signal) to 50A+ (power).
- Material: High-temperature thermoplastics or metal shells for EMI shielding.
Purchasing Recommendations
1. Match Environmental Needs: For outdoor/industrial use, prioritize IP67/IP68-rated connectors with corrosion-resistant plating (e.g., gold or tin).
2. Verify Compatibility: Ensure alignment with mating connectors (gender, pinout) and compliance with standards (UL, IEC).
3. Prioritize Locking Features: Screw-lock or latch mechanisms (e.g., M8/M12-style) enhance vibration resistance.
4. Assess Future-Proofing: Modular systems (e.g., modular jacks) allow scalability for evolving connectivity needs.
This category balances durability and adaptability, making it a critical component in infrastructure requiring reliable, high-performance interconnects.
Filter and sort
Categories

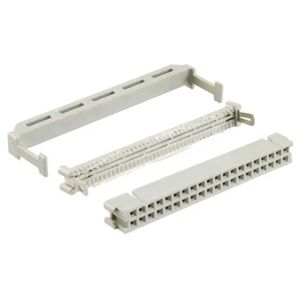

3417-6040
CONN RCPT 40P IDC 26-28AWG GOLD
AWP 34-8540-T
CONN SOCKET 34POS IDC TIN

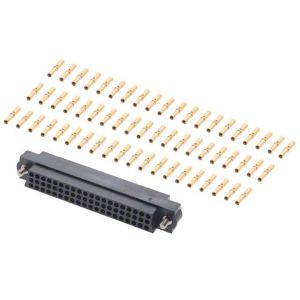

M83-LFC1F1N60-0000-000
CONN RCPT 60POS CRIMP 24-28AWG

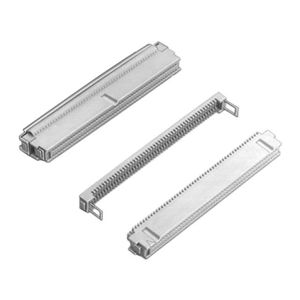

82060-6000
CONN RCPT 60POS IDC 30AWG GOLD

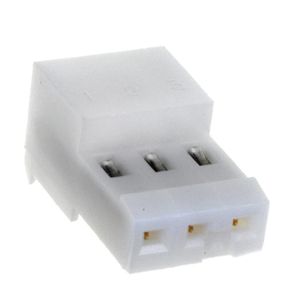

641191-3
CONN RCPT 3POS IDC 24AWG GOLD

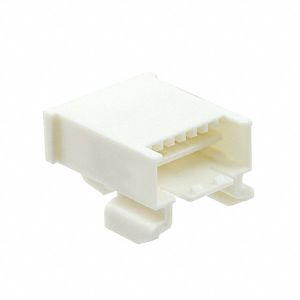

293230-1
4 POSITION DUOPLUG POWER RAST 2.

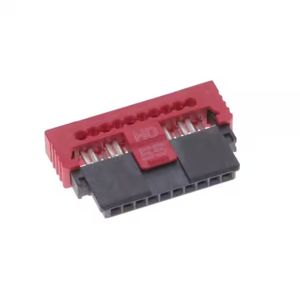

234465
10-PIN, FEMALE,IDC2426POSITIVER/

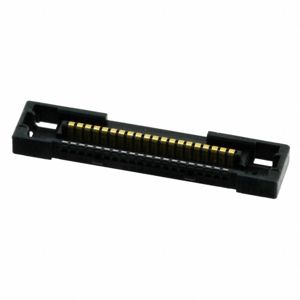

DF36-20P-0.4SD(51)
CONN PLUG 20POS SOLDER 42-46AWG

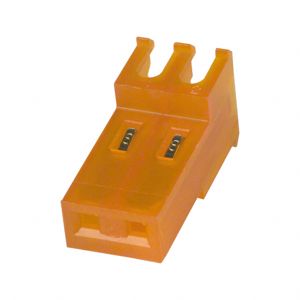

3-640604-2
CONN RCPT 2POS IDC 18AWG TIN

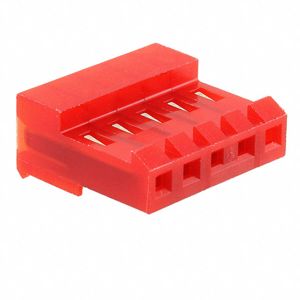

3-641219-5
CONN RCPT 5POS IDC 22AWG GOLD

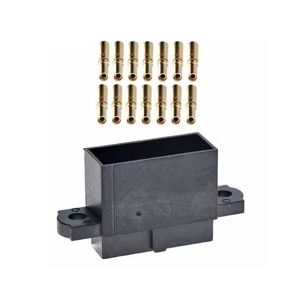

M80-4751805
CONN RCPT 18POS CRIMP 22AWG GOLD

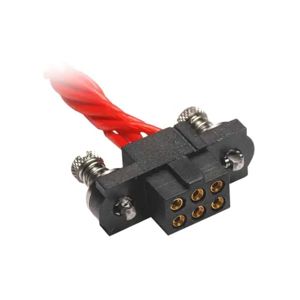

M80-4D12005FC
CONN RECEPT 2MM W/SCREW 20POS

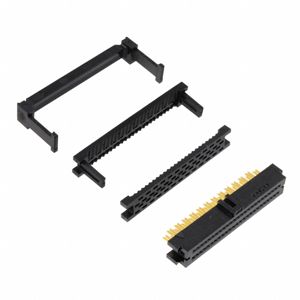

HIF6-50D-1.27R(20)
CONN RCPT 50POS IDC 28AWG GOLD

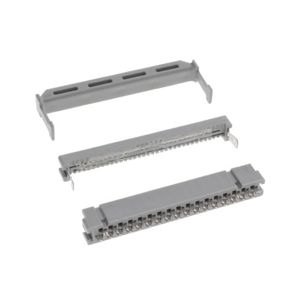

3414-7034
CONN RCPT 34P IDC 26-28AWG GOLD

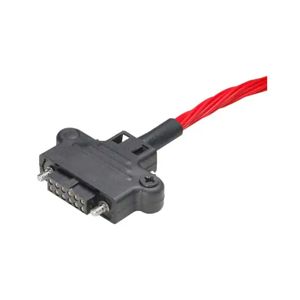

M80-9401205
CONN RCPT 12POS CRIMP 24-28AWG

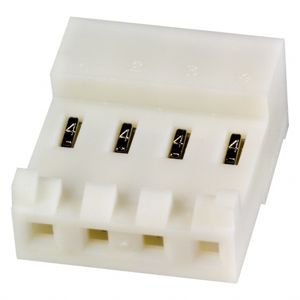

3-643820-4
CONN RCPT 4POS IDC 24AWG TIN
HIF6-50D-1.27R(25)
CONN RCPT 50POS IDC 28AWG GOLD

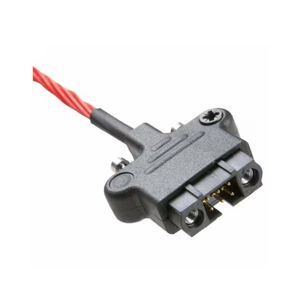

M80-9423405
CONN RCPT 34POS CRIMP 24-28AWG
3-641191-8
CONN RCPT 8POS IDC 24AWG GOLD

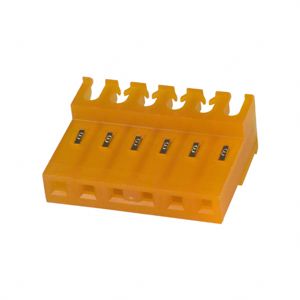

640604-6
