Definition & Purpose
Rectangular Connectors - Headers, Male Pins are a critical subset of Connectors and Interconnects, designed to establish robust, standardized electrical connections between printed circuit boards (PCBs), modules, or devices. These components feature a male pin interface that inserts into corresponding female sockets (receptacles), ensuring secure signal transmission or power delivery in compact, high-density layouts. Widely used in industrial, automotive, and consumer electronics, they excel in applications demanding precision, durability, and repeatable mating cycles.
Key Product Types
1. Single/Double-Row Headers: Low-profile options for space-constrained designs, available in through-hole (THT) or surface-mount (SMT) configurations.
2. Shrouded/Box Headers: Incorporate protective housings to prevent misalignment and enhance mechanical stability in harsh environments.
3. High-Current Headers: Engineered with thicker pins (e.g., 2.54mm pitch) to support power-intensive applications.
4. Right-Angle & Vertical Headers: Offer flexible PCB layout options for optimized airflow and wire routing.
5. Custom Pin-Count Solutions: Tailored configurations (e.g., 4-pin to 40-pin) to match specific circuit requirements.
Purchasing Recommendations
- Pitch & Size: Verify pin spacing (e.g., 1.27mm, 2.54mm) and row count to ensure compatibility with existing receptacles.
- Material: Prioritize high-temperature plastics (e.g., PBT) and gold-plated pins for corrosion resistance in demanding conditions.
- Current Rating: Select headers rated 3A/pin for power applications to avoid overheating.
- Compliance: Check for UL, IEC, or RoHS certifications to meet industry safety standards.
- Supplier Evaluation: Partner with vendors offering IP67-rated options for moisture-prone environments and sample/testing support.
Ideal for prototyping and mass production, these connectors balance cost-efficiency with long-term reliability critical for IoT devices, robotics, and automotive control systems. Always cross-reference datasheets to align with your project s mechanical and electrical parameters.
Filter and sort
Categories

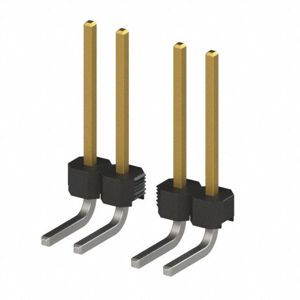

951135-7722-AR
CONN HEADER R/A 35POS 2MM

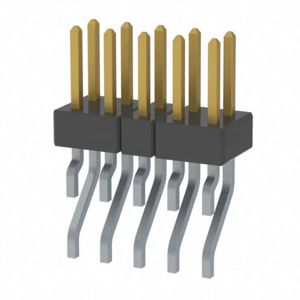

MMT-105-02-F-DH-K
CONN HEADER SMD R/A 10POS 2MM

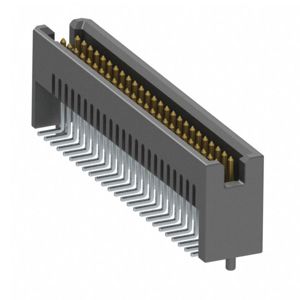

TFM-125-22-S-D-A-K-TR
CONN HEADER SMD 50POS 1.27MM

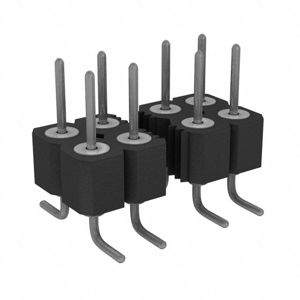

832-80-022-30-001191
CONN HEADER SMD 22POS 2MM

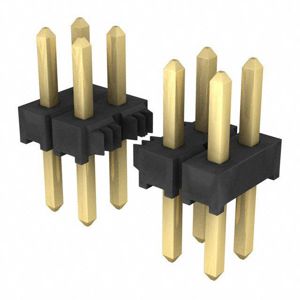

TMM-150-06-G-D
2MM TERMINAL STRIP

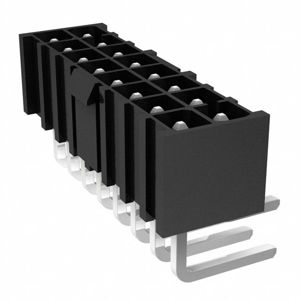

IPBT-108-H1-T-D-RA-K
CONN HEADER R/A 16POS 4.2MM

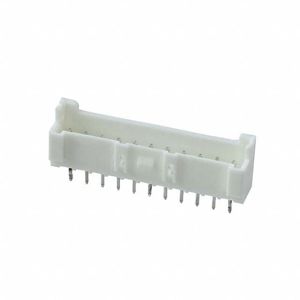

1-1969730-1
CONN HEADER VERT 11POS 2.5MM

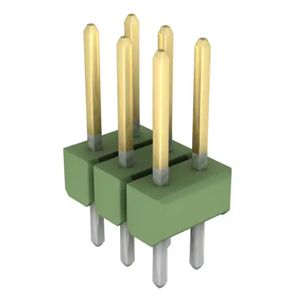

826656-3
CONN HEADER VERT 6POS 2.54MM

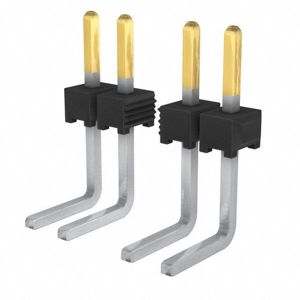

TMM-105-01-L-S-RE
2MM TERMINAL STRIP

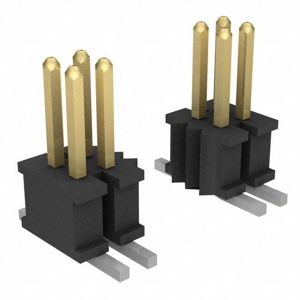

FTSH-115-01-L-DV-K-P
CONN HEADER SMD 30POS 1.27MM

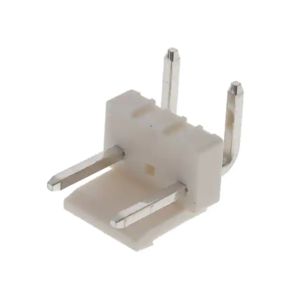

1744525-3
CONN HEADER R/A 3POS 3.96MM

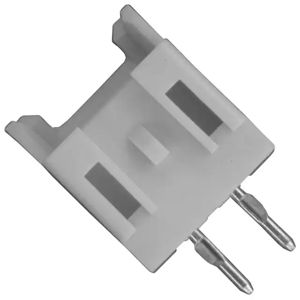

B02B-XASK-1(LF)(SN)
CONN HEADER VERT 2POS 2.5MM

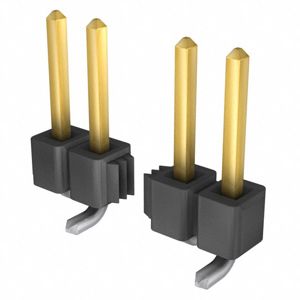

TSM-117-01-S-SV-P-TR
CONN HEADER SMD 17POS 2.54MM
23-1045D00A3TT
PIN HEADER, PRESS FIT, SINGLE RO
830-10-019-10-001101
CONN HEADER VERT 19POS 2MM
399-10-137-10-009101
CONN HEADER R/A 37POS 2.54MM
MOLC-130-01-L-Q-LC
CONN HEADER VERT 120POS 1.27MM
4-103328-2
CONN HEADER VERT 6POS 2.54MM
77311-418-02LF
CONN HEADER VERT 2POS 2.54MM
B3B-ZR-SM4-TFT(LF)(SN)
CONN HEADER SMD 3POS 1.5MM
