Rectangular Connectors - Headers, Male Pins
Rectangular Connectors - Headers, Male Pins | Interconnect Solutions for Secure & Reliable PCB Connections
Definition & Purpose
Rectangular Connectors - Headers, Male Pins are a critical subset of Connectors and Interconnects, designed to establish robust, standardized electrical connections between printed circuit boards (PCBs), modules, or devices. These components feature a male pin interface that inserts into corresponding female sockets (receptacles), ensuring secure signal transmission or power delivery in compact, high-density layouts. Widely used in industrial, automotive, and consumer electronics, they excel in applications demanding precision, durability, and repeatable mating cycles.
Key Product Types
1. Single/Double-Row Headers: Low-profile options for space-constrained designs, available in through-hole (THT) or surface-mount (SMT) configurations.
2. Shrouded/Box Headers: Incorporate protective housings to prevent misalignment and enhance mechanical stability in harsh environments.
3. High-Current Headers: Engineered with thicker pins (e.g., 2.54mm pitch) to support power-intensive applications.
4. Right-Angle & Vertical Headers: Offer flexible PCB layout options for optimized airflow and wire routing.
5. Custom Pin-Count Solutions: Tailored configurations (e.g., 4-pin to 40-pin) to match specific circuit requirements.
Purchasing Recommendations
- Pitch & Size: Verify pin spacing (e.g., 1.27mm, 2.54mm) and row count to ensure compatibility with existing receptacles.
- Material: Prioritize high-temperature plastics (e.g., PBT) and gold-plated pins for corrosion resistance in demanding conditions.
- Current Rating: Select headers rated 3A/pin for power applications to avoid overheating.
- Compliance: Check for UL, IEC, or RoHS certifications to meet industry safety standards.
- Supplier Evaluation: Partner with vendors offering IP67-rated options for moisture-prone environments and sample/testing support.
Ideal for prototyping and mass production, these connectors balance cost-efficiency with long-term reliability critical for IoT devices, robotics, and automotive control systems. Always cross-reference datasheets to align with your project s mechanical and electrical parameters.
Filter and sort
Categories

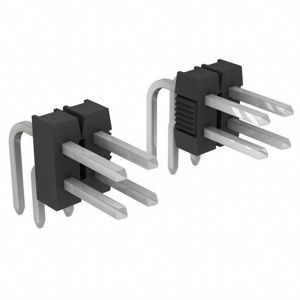

9-103330-0-37
CONN HEADER R/A 74POS 2.54MM
TSM-112-03-T-SH
CONN HEADER SMD R/A 12POS 2.54MM

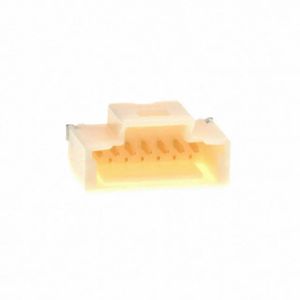

5044490707
CONN HEADER SMD 7POS 1MM

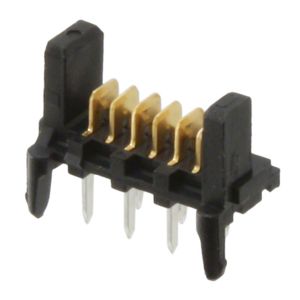

0903257006
CONN HEADER VERT 6POS 1.27MM
TLW-139-05-G-S
CONN HEADER VERT 39POS 2.54MM
451-10-212-00-003101
CONN HEADER VERT 12POS 2.54MM

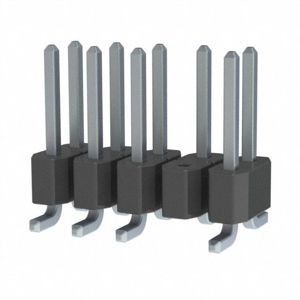

TSM-105-01-T-DV-003
CONN HEADER SMD 10POS 2.54MM

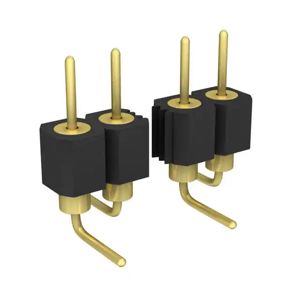

350-10-161-00-106101
CONN HEADER SMD 61POS 2.54MM

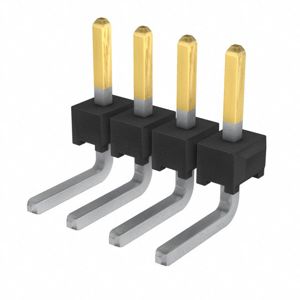

TMM-104-01-F-S-RA
CONN HEADER R/A 4POS 2MM
BC050-74A-K0-0380-0160-0480-LD
74W,1.0MM PITCH ELEV PIN HDR,DIL
TSM-112-01-T-SH-A-K
CONN HEADER SMD R/A 12POS 2.54MM

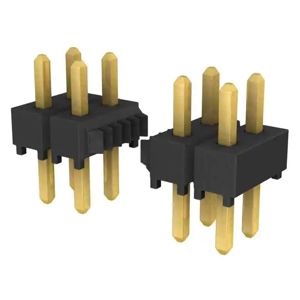

TSW-109-06-G-D
CONN HEADER VERT 18POS 2.54MM

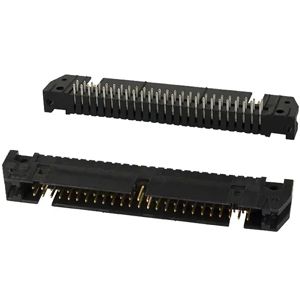

1-5102159-0
CONN HEADER R/A 50POS 2.54MM

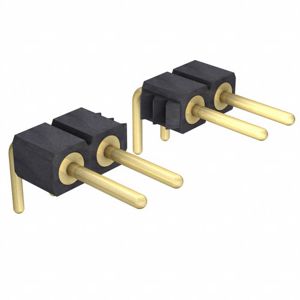

800-10-040-20-001101
CONN HEADER R/A 40POS 2.54MM
TSW-113-05-T-D
CONN HEADER VERT 26POS 2.54MM
CI4404M1VR0-NH
4 POS 1.25MM(.049) WIRE TO BOARD
1719740102
CONN HEADER R/A 2POS 2.54MM
HTSW-107-07-F-D-LL
CONN HEADER VERT 14POS 2.54MM

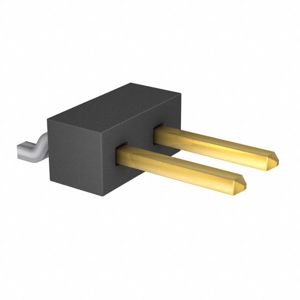

TSM-102-01-L-SH
CONN HEADER SMD R/A 2POS 2.54MM
929715-01-28-I
CONN HEADER VERT 56POS 2.54MM
