Rectangular Connectors - Headers, Male Pins
Rectangular Connectors - Headers, Male Pins | Interconnect Solutions for Secure & Reliable PCB Connections
Definition & Purpose
Rectangular Connectors - Headers, Male Pins are a critical subset of Connectors and Interconnects, designed to establish robust, standardized electrical connections between printed circuit boards (PCBs), modules, or devices. These components feature a male pin interface that inserts into corresponding female sockets (receptacles), ensuring secure signal transmission or power delivery in compact, high-density layouts. Widely used in industrial, automotive, and consumer electronics, they excel in applications demanding precision, durability, and repeatable mating cycles.
Key Product Types
1. Single/Double-Row Headers: Low-profile options for space-constrained designs, available in through-hole (THT) or surface-mount (SMT) configurations.
2. Shrouded/Box Headers: Incorporate protective housings to prevent misalignment and enhance mechanical stability in harsh environments.
3. High-Current Headers: Engineered with thicker pins (e.g., 2.54mm pitch) to support power-intensive applications.
4. Right-Angle & Vertical Headers: Offer flexible PCB layout options for optimized airflow and wire routing.
5. Custom Pin-Count Solutions: Tailored configurations (e.g., 4-pin to 40-pin) to match specific circuit requirements.
Purchasing Recommendations
- Pitch & Size: Verify pin spacing (e.g., 1.27mm, 2.54mm) and row count to ensure compatibility with existing receptacles.
- Material: Prioritize high-temperature plastics (e.g., PBT) and gold-plated pins for corrosion resistance in demanding conditions.
- Current Rating: Select headers rated 3A/pin for power applications to avoid overheating.
- Compliance: Check for UL, IEC, or RoHS certifications to meet industry safety standards.
- Supplier Evaluation: Partner with vendors offering IP67-rated options for moisture-prone environments and sample/testing support.
Ideal for prototyping and mass production, these connectors balance cost-efficiency with long-term reliability critical for IoT devices, robotics, and automotive control systems. Always cross-reference datasheets to align with your project s mechanical and electrical parameters.
Filter and sort
Categories
69168-114
CONN HEADER VERT 14POS 2.54MM
0534260710
CONN HEADER R/A 7POS 2.5MM
TSM-113-01-LM-DH-P-TR
CONN HEADER SMD R/A 26POS 2.54MM

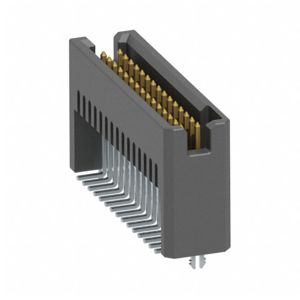

TFM-115-32-S-D-LC-P
CONN HEADER SMD 30POS 1.27MM

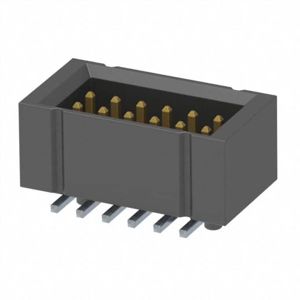

FTMH-106-03-F-DV-ES-A
CONN HEADER SMD 12POS 1MM

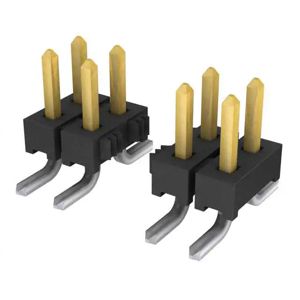

TMM-109-05-L-D-SM
2MM TERMINAL STRIP

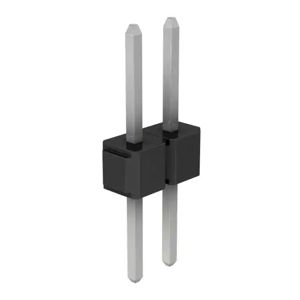

929836-01-01-RK
CONN HEADER VERT 2POS
0436500627

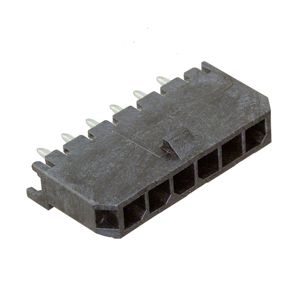

CONN HEADER VERT 6POS 3MM

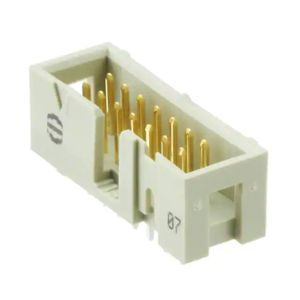

09185146324
CONN HEADER VERT 14POS 2.54MM

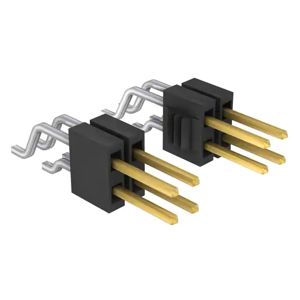

FTSH-107-04-L-DH
CONN HEADER SMD R/A 14POS 1.27MM

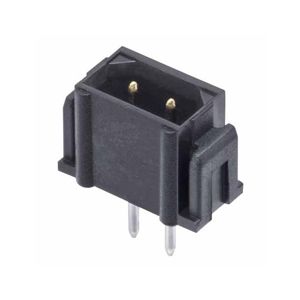

M80-8790222
CONN HEADER VERT 2POS 2MM
0702800807

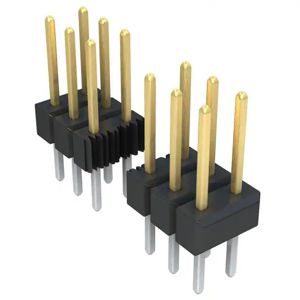

CONN HEADER VERT 38POS 2.54MM

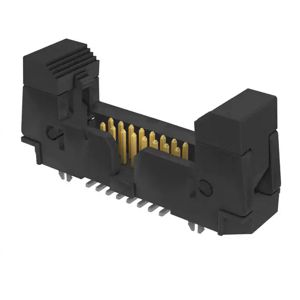

EHF-108-01-F-D-SM-LC-P
CONN HEADER SMD 16POS 1.27MM
MOLC-135-01-L-Q-LC
CONN HEADER VERT 140POS 1.27MM

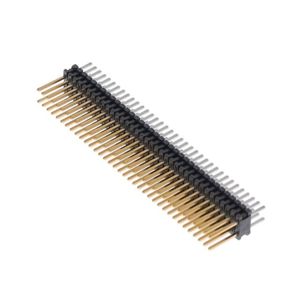

TMS-136-01-S-D
.050" (1.27MM) MICRO HEADER

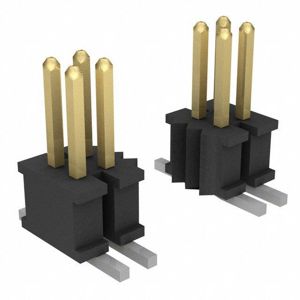

FTSH-108-05-F-DV
CONN HEADER SMD 16POS 1.27MM
FTSH-111-04-F-DH-TR
CONN HEADER SMD R/A 22POS 1.27MM

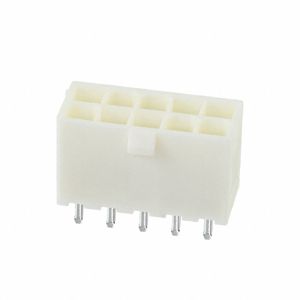

10127820-1022LF
CONN HEADER VERT 10POS 4.2MM

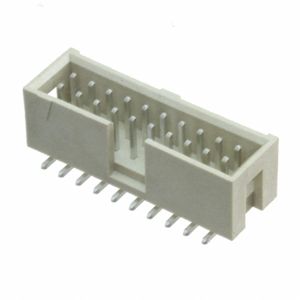

HTSS-110-01-T-DV
CONN HEADER SMD 20POS 2.54MM

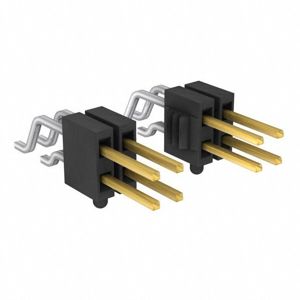

FTSH-114-04-F-DH-A
CONN HEADER SMD R/A 28POS 1.27MM
