Rectangular Connectors - Spring Loaded
Rectangular Connectors - Spring Loaded: Category Overview
1. Definition:
Rectangular Connectors - Spring Loaded are specialized interconnect components designed to ensure reliable electrical connections in applications requiring consistent contact pressure and vibration resistance. These connectors feature spring-loaded contact mechanisms that compensate for mating surface variations, thermal expansion, or mechanical stress, maintaining stable conductivity in dynamic environments.
2. Product Types & Applications:
This category includes:
- Board-to-Board Spring Loaded Connectors: Used in high-density PCB assemblies where shock absorption is critical (e.g., automotive control modules).
- Wire-to-Board Spring Connectors: Enable secure connections in industrial automation equipment subject to constant movement.
- High-Current Spring Contacts: Ideal for power distribution systems needing durable, low-resistance interfaces.
- EMI-Shielded Rectangular Connectors: Deployed in aerospace/military systems to combine mechanical resilience with signal integrity.
3. Purchasing Recommendations:
- Contact Force & Current Rating: Verify spring pressure (e.g., 50 300g per contact) aligns with current load (e.g., 1A 20A) to prevent arcing.
- Material Selection: Opt for beryllium copper springs with gold plating for corrosion resistance in harsh environments.
- Compliance Standards: Prioritize UL/IEC 60664-certified designs for high-voltage insulation.
- Mating Cycles: For frequent connections (e.g., test equipment), choose models rated for 10,000+ cycles.
Why Choose Spring Loaded Rectangular Connectors?
These connectors solve challenges in vibration-prone or thermally unstable systems, reducing maintenance costs versus rigid alternatives. Their adaptive design ensures long-term reliability in robotics, renewable energy storage, and transportation infrastructure.
Filter and sort
Categories

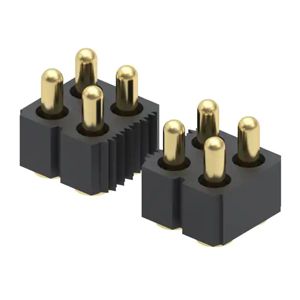

813-22-014-30-003101
CONN SPRING PISTON 14POS SMD
811-22-031-30-002101
CONN SPRING PISTON 31POS SMD

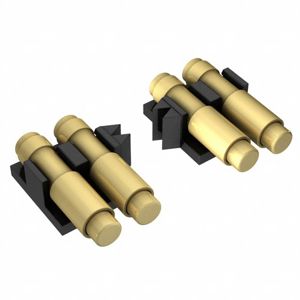

8MM-11-0008-02-131
CONN SPRING TARGET 8POS R/A SMD
821-22-010-10-003101
CONN SPRING PISTON 10POS PCB
PH1-3B-06-MVF-3345
CONN SPRING PISTON 6POS SMD
811-SS-006-30-025101
CONN SPRING PISTON 6POS SMD

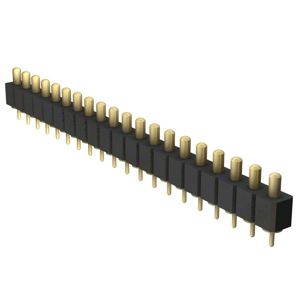

821-22-020-10-003101
CONN SPRING PISTON 20POS PCB
811-22-005-30-002101
CONN SPRING PISTON 5POS SMD
804-22-021-10-004101
CONN SPRING PISTON 21POS PCB

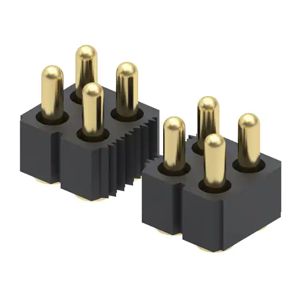

813-22-042-30-004101
CONN SPRING PISTON 42POS SMD
813-SS-016-30-001191
CONN SPRING PISTON 16POS SMD

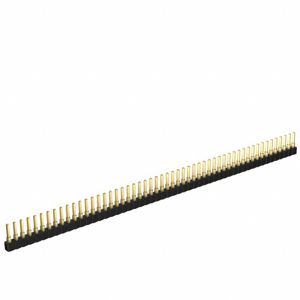

812-22-053-30-000101
CONN SPRING PISTON 53POS SMD

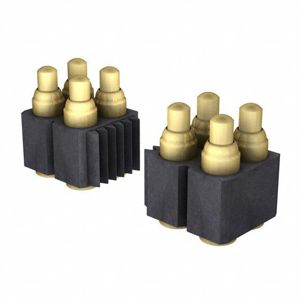

823-S1-014-30-012191
CONN SPRING PISTON 14POS SMD
811-S1-008-10-016101
CONN SPRING PISTON 8POS PCB

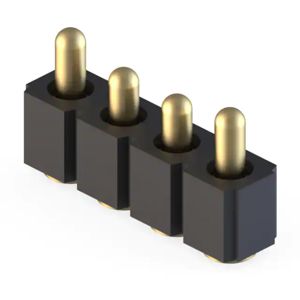

811-22-004-30-022101
FMLB SPRING-LOADED CONN, SMT SIN

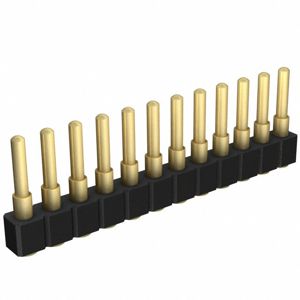

812-22-012-30-000101
CONN SPRING PISTON 12POS SMD

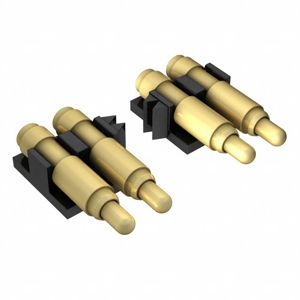

8PM-11-0009-02-131
CONN SPRING PISTON 9POS R/A SMD

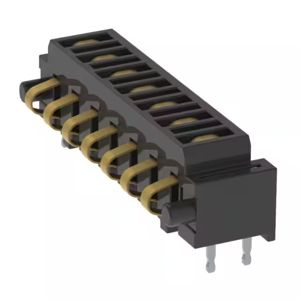

SIR1-07-S-S-A-K-TR
CONN SPRING MOD 7POS R/A SMD

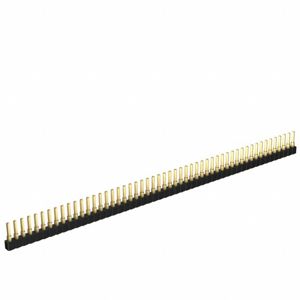

812-22-052-30-000101
CONN SPRING PISTON 52POS SMD

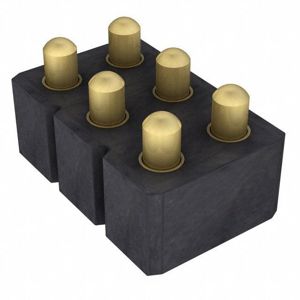

813-SS-006-30-006191
CONN SPRING PISTON 6POS SMD
