Sockets for ICs, Transistors
Sockets for ICs, Transistors Classification Overview
1. Definition of the Category
Sockets for ICs (Integrated Circuits) and Transistors are specialized interconnect components designed to provide secure, removable mounting solutions for semiconductor devices. These sockets serve as critical interfaces between delicate ICs/transistors and printed circuit boards (PCBs), enabling easy insertion, replacement, and testing without soldering. They ensure reliable electrical connections while protecting components from mechanical stress, heat damage, or ESD (electrostatic discharge).
2. Types of Products in This Category
This classification includes the following key variants:
- IC Sockets:
- DIP (Dual In-line Package) Sockets: For through-hole mounted ICs, commonly used in prototyping and industrial controls.
- ZIF (Zero Insertion Force) Sockets: Allow safe insertion of fragile ICs (e.g., microprocessors) with minimal physical stress.
- LGA/PGA Sockets: For high-pin-count chips (e.g., CPUs), featuring land grid array or pin grid array designs.
- Transistor Sockets:
- TO (Transistor Outline) Sockets: Compatible with TO-3, TO-5, TO-92 packages, offering heat dissipation and quick swaps.
- Surface-Mount (SMT) Sockets: For compact PCB designs, supporting SMD transistors.
- Specialty Sockets:
- Test/Burn-in Sockets: High-durability options for QA and reliability testing.
- RF/High-Frequency Sockets: Shielded designs for signal integrity in RF applications.
3. Purchasing Recommendations
When selecting sockets for ICs or transistors, consider:
- Compatibility: Match the socket type (e.g., DIP, LGA) to the component s package and pin configuration.
- Material & Durability: Prioritize high-temperature thermoplastics or metal alloys for harsh environments.
- Contact Technology: Gold-plated contacts ensure low resistance and corrosion resistance for long-term reliability.
- Application Needs: Opt for ZIF sockets for frequent IC swaps or burn-in sockets for rigorous testing.
- Standards Compliance: Verify adherence to UL, IEC, or RoHS certifications for safety and environmental requirements.
This category is indispensable for electronics manufacturing, repair, and R&D, offering both flexibility and protection for critical semiconductor components. Invest in quality sockets to enhance PCB longevity and reduce maintenance costs.
Filter and sort
Categories

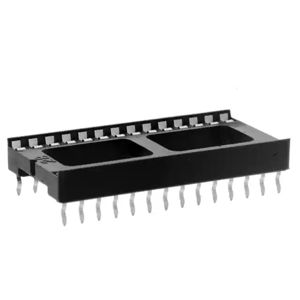

4828-6004-CP
CONN IC DIP SOCKET 28POS TIN

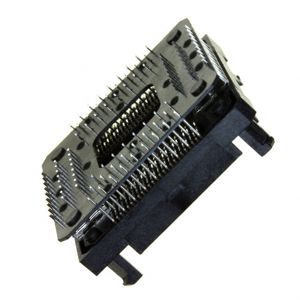

821949-4
CONN SOCKET PQFP 100POS TIN-LEAD

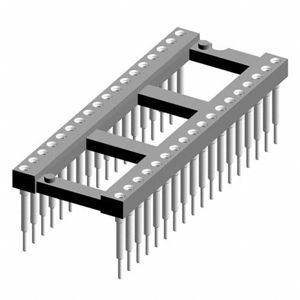

116-83-636-41-007101
CONN IC DIP SOCKET 36POS GOLD

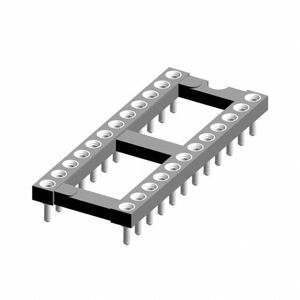

115-87-424-41-003101
CONN IC DIP SOCKET 24POS GOLD

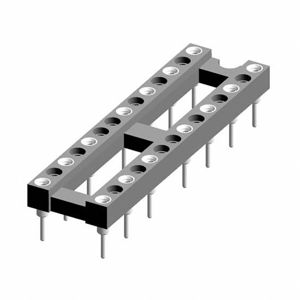

110-83-328-01-777101
CONN IC DIP SOCKET 28POS GOLD

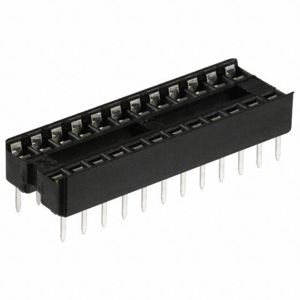

A 24-LC/7-T
CONN IC DIP SOCKET 24POS TIN

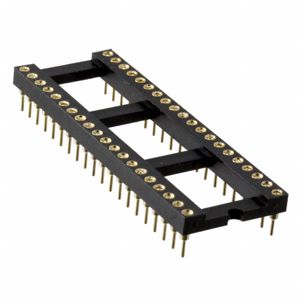

SA406040
CONN IC DIP SOCKET 40POS GOLD

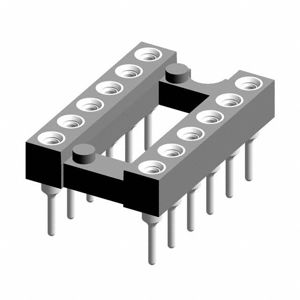

110-83-312-41-005101
CONN IC DIP SOCKET 12POS GOLD

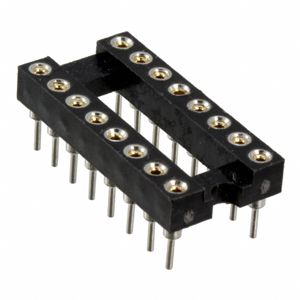

SA163000
CONN IC DIP SOCKET 16POS GOLD

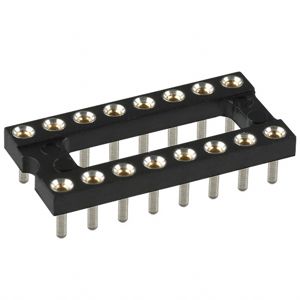

115-43-316-41-003000
CONN IC DIP SOCKET 16POS GOLD

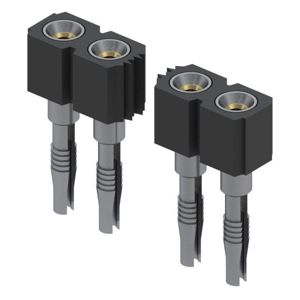

346-93-151-41-013000
CONN SOCKET SIP 51POS GOLD

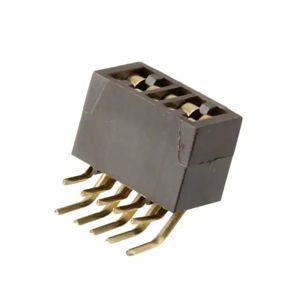

MPP-1100-05-DS-4GR(S1402)
CONN TRANSIST TO-220/TO-247 5POS

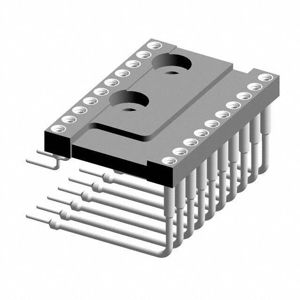

299-87-620-10-002101
CONN IC DIP SOCKET 20POS GOLD

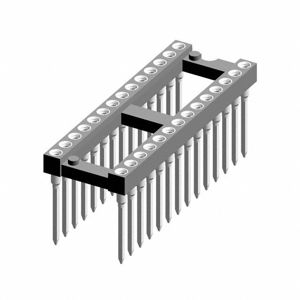

122-87-428-41-001101
CONN IC DIP SOCKET 28POS GOLD

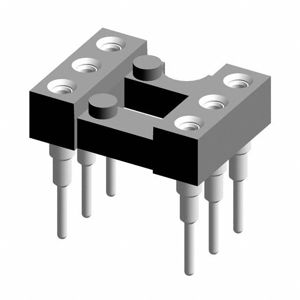

116-87-306-41-006101
CONN IC DIP SOCKET 6POS GOLD
10-810-90C
CONN IC DIP SOCKET 10POS GOLD

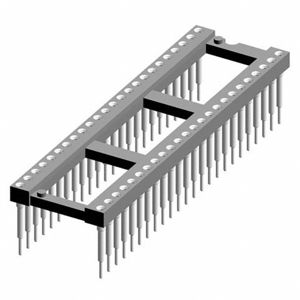

116-83-648-41-007101
CONN IC DIP SOCKET 48POS GOLD

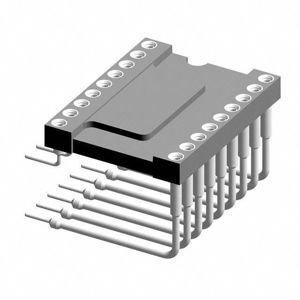

299-83-618-10-002101
CONN IC DIP SOCKET 18POS GOLD

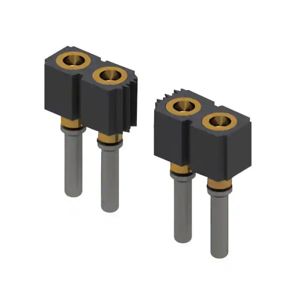

714-43-136-31-018000
CONN SOCKET SIP 36POS GOLD

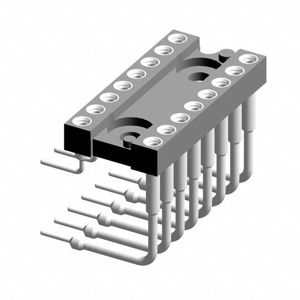

299-87-316-10-001101
CONN IC DIP SOCKET 16POS GOLD
