1. Definition of the Category
Sockets for ICs (Integrated Circuits) and Transistors are specialized interconnect components designed to provide secure, removable mounting solutions for semiconductor devices. These sockets serve as critical interfaces between delicate ICs/transistors and printed circuit boards (PCBs), enabling easy insertion, replacement, and testing without soldering. They ensure reliable electrical connections while protecting components from mechanical stress, heat damage, or ESD (electrostatic discharge).
2. Types of Products in This Category
This classification includes the following key variants:
- IC Sockets:
- DIP (Dual In-line Package) Sockets: For through-hole mounted ICs, commonly used in prototyping and industrial controls.
- ZIF (Zero Insertion Force) Sockets: Allow safe insertion of fragile ICs (e.g., microprocessors) with minimal physical stress.
- LGA/PGA Sockets: For high-pin-count chips (e.g., CPUs), featuring land grid array or pin grid array designs.
- Transistor Sockets:
- TO (Transistor Outline) Sockets: Compatible with TO-3, TO-5, TO-92 packages, offering heat dissipation and quick swaps.
- Surface-Mount (SMT) Sockets: For compact PCB designs, supporting SMD transistors.
- Specialty Sockets:
- Test/Burn-in Sockets: High-durability options for QA and reliability testing.
- RF/High-Frequency Sockets: Shielded designs for signal integrity in RF applications.
3. Purchasing Recommendations
When selecting sockets for ICs or transistors, consider:
- Compatibility: Match the socket type (e.g., DIP, LGA) to the component s package and pin configuration.
- Material & Durability: Prioritize high-temperature thermoplastics or metal alloys for harsh environments.
- Contact Technology: Gold-plated contacts ensure low resistance and corrosion resistance for long-term reliability.
- Application Needs: Opt for ZIF sockets for frequent IC swaps or burn-in sockets for rigorous testing.
- Standards Compliance: Verify adherence to UL, IEC, or RoHS certifications for safety and environmental requirements.
This category is indispensable for electronics manufacturing, repair, and R&D, offering both flexibility and protection for critical semiconductor components. Invest in quality sockets to enhance PCB longevity and reduce maintenance costs.
Filter and sort
Categories

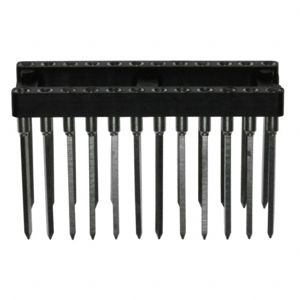

123-93-424-41-001000
CONN IC DIP SOCKET 24POS GOLD

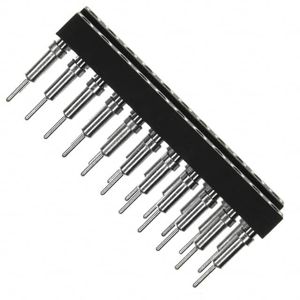

612-93-322-41-001000
CARRIER W/ SOCKETS SLDRTL 22POS

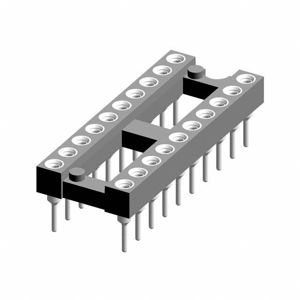

110-87-320-41-005101
CONN IC DIP SOCKET 20POS GOLD

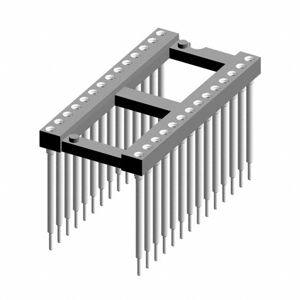

116-87-628-41-011101
CONN IC DIP SOCKET 28POS GOLD

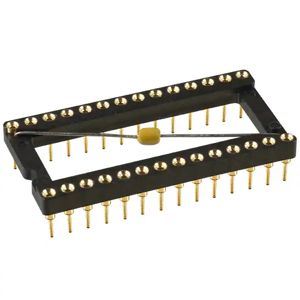

110-13-628-41-801000
CONN IC DIP SOCKET 28POS GOLD

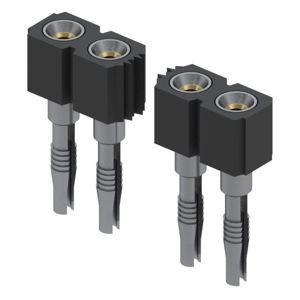

346-43-107-41-013000
CONN SOCKET SIP 7POS GOLD

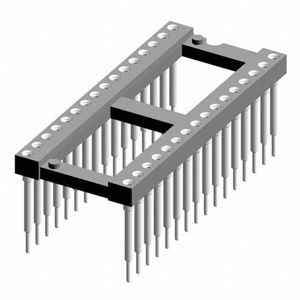

116-87-632-41-008101
CONN IC DIP SOCKET 32POS GOLD

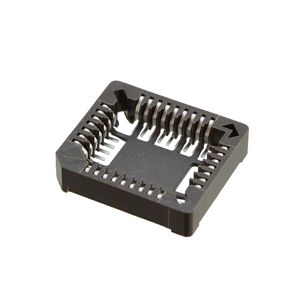

69802-432LF
CONN SOCKET PLCC 32POS TIN

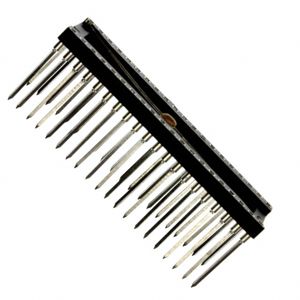

123-93-640-41-801000
CONN IC DIP SOCKET 40POS GOLD

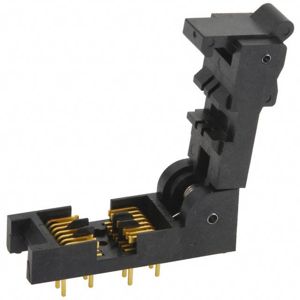

216-7383-55-1902
CONN SOCKET SOIC 16POS GOLD

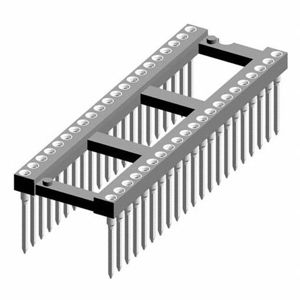

122-83-642-41-001101
CONN IC DIP SOCKET 42POS GOLD
612-87-424-41-001101
CONN IC DIP SOCKET 24POS GOLD

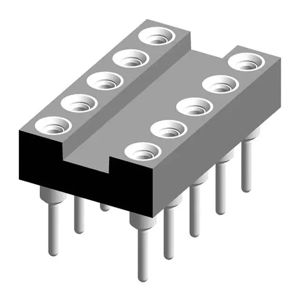

110-87-210-41-001101
CONN IC DIP SOCKET 10POS GOLD

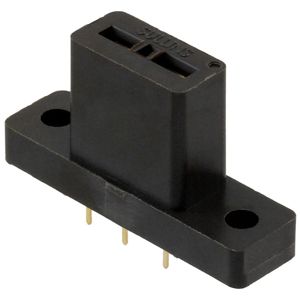

TDU03DTOD
CONN SOCKET TRANSIST 3POS GOLD

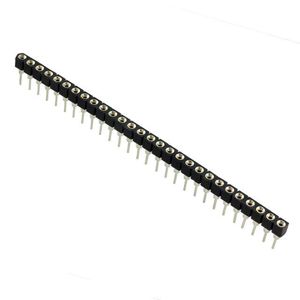

28-0518-10H
CONN SOCKET SIP 28POS GOLD

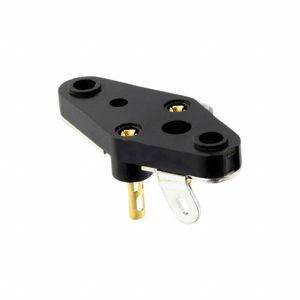

8080-1G9
CONN TRANSIST TO-3 4POS GOLD

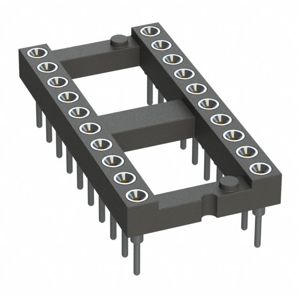

110-99-420-41-001000
CONN IC DIP SOCKET 20POS TINLEAD

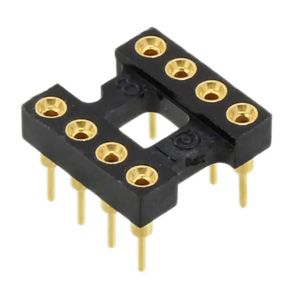

08-3518-11
CONN IC DIP SOCKET 8POS GOLD

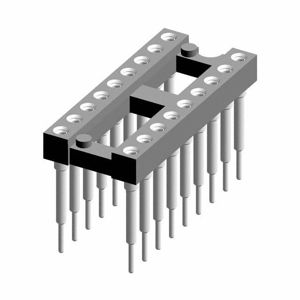

116-83-318-41-007101
CONN IC DIP SOCKET 18POS GOLD

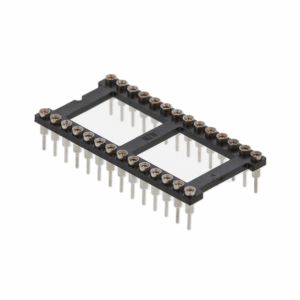

ICO-628-SGT
CONN IC DIP SKT 28POS
