Sockets for ICs, Transistors
Sockets for ICs, Transistors Classification Overview
1. Definition of the Category
Sockets for ICs (Integrated Circuits) and Transistors are specialized interconnect components designed to provide secure, removable mounting solutions for semiconductor devices. These sockets serve as critical interfaces between delicate ICs/transistors and printed circuit boards (PCBs), enabling easy insertion, replacement, and testing without soldering. They ensure reliable electrical connections while protecting components from mechanical stress, heat damage, or ESD (electrostatic discharge).
2. Types of Products in This Category
This classification includes the following key variants:
- IC Sockets:
- DIP (Dual In-line Package) Sockets: For through-hole mounted ICs, commonly used in prototyping and industrial controls.
- ZIF (Zero Insertion Force) Sockets: Allow safe insertion of fragile ICs (e.g., microprocessors) with minimal physical stress.
- LGA/PGA Sockets: For high-pin-count chips (e.g., CPUs), featuring land grid array or pin grid array designs.
- Transistor Sockets:
- TO (Transistor Outline) Sockets: Compatible with TO-3, TO-5, TO-92 packages, offering heat dissipation and quick swaps.
- Surface-Mount (SMT) Sockets: For compact PCB designs, supporting SMD transistors.
- Specialty Sockets:
- Test/Burn-in Sockets: High-durability options for QA and reliability testing.
- RF/High-Frequency Sockets: Shielded designs for signal integrity in RF applications.
3. Purchasing Recommendations
When selecting sockets for ICs or transistors, consider:
- Compatibility: Match the socket type (e.g., DIP, LGA) to the component s package and pin configuration.
- Material & Durability: Prioritize high-temperature thermoplastics or metal alloys for harsh environments.
- Contact Technology: Gold-plated contacts ensure low resistance and corrosion resistance for long-term reliability.
- Application Needs: Opt for ZIF sockets for frequent IC swaps or burn-in sockets for rigorous testing.
- Standards Compliance: Verify adherence to UL, IEC, or RoHS certifications for safety and environmental requirements.
This category is indispensable for electronics manufacturing, repair, and R&D, offering both flexibility and protection for critical semiconductor components. Invest in quality sockets to enhance PCB longevity and reduce maintenance costs.
Filter and sort
Categories

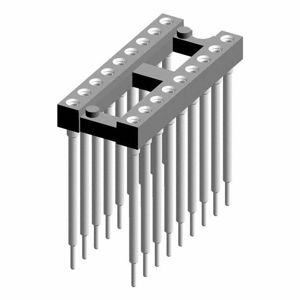

116-83-318-41-011101
CONN IC DIP SOCKET 18POS GOLD

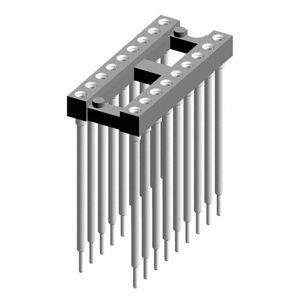

116-87-318-41-004101
CONN IC DIP SOCKET 18POS GOLD

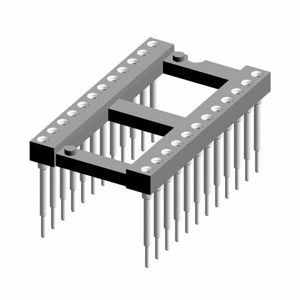

116-87-624-41-002101
CONN IC DIP SOCKET 24POS GOLD

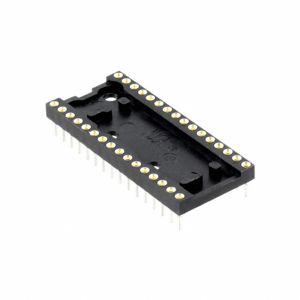

3-1571550-0
CONN IC DIP SOCKET 32POS GOLD

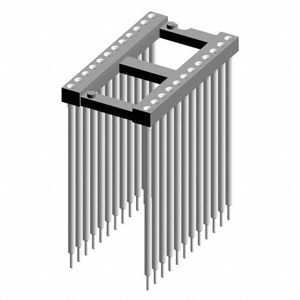

116-87-624-41-013101
CONN IC DIP SOCKET 24POS GOLD

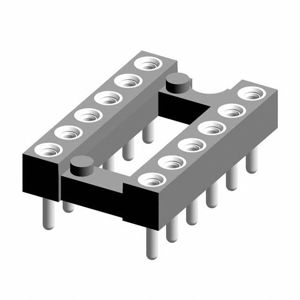

115-83-312-41-001101
CONN IC DIP SOCKET 12POS GOLD

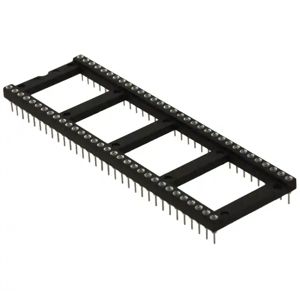

110-43-964-41-001000
CONN IC DIP SOCKET 64POS GOLD

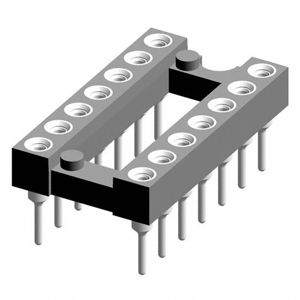

110-87-314-41-005101
CONN IC DIP SOCKET 14POS GOLD

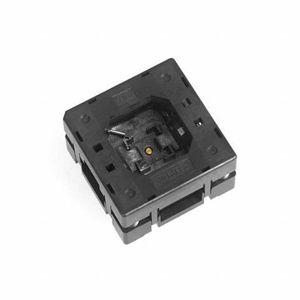

256-4205-01
CONN SOCKET QFN 56POS GOLD

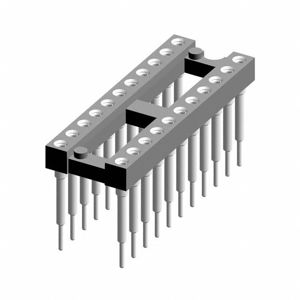

116-87-322-41-007101
CONN IC DIP SOCKET 22POS GOLD

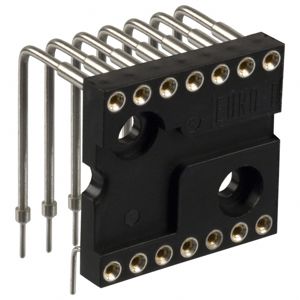

299-93-614-10-002000
CONN IC DIP SOCKET 14POS GOLD

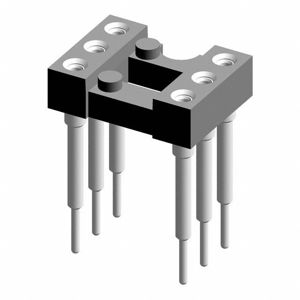

116-83-306-41-007101
CONN IC DIP SOCKET 6POS GOLD

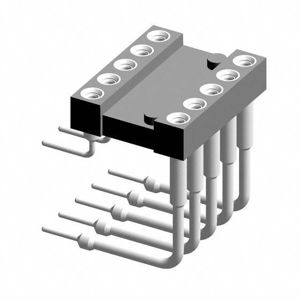

299-87-310-10-001101
CONN IC DIP SOCKET 10POS GOLD
116-83-652-41-008101
CONN IC DIP SOCKET 52POS GOLD

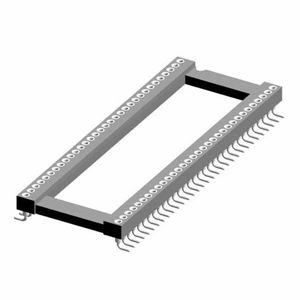

117-83-764-41-105101
CONN IC DIP SOCKET 64POS GOLD

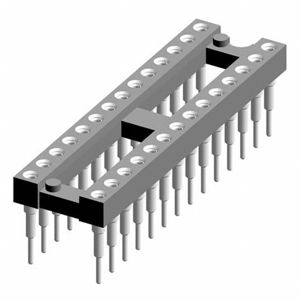

116-83-328-41-018101
CONN IC DIP SOCKET 28POS GOLD

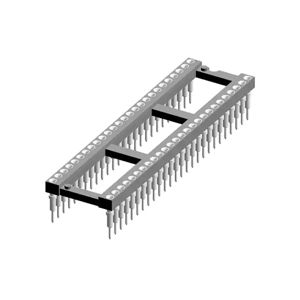

612-87-652-41-001101
CONN IC DIP SOCKET 52POS GOLD

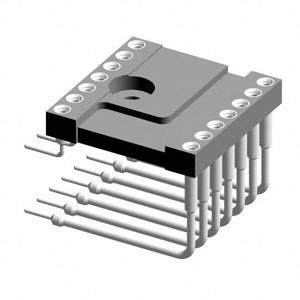

299-83-614-10-002101
CONN IC DIP SOCKET 14POS GOLD
1-2324271-6
LEFT SEGMEN LGA4189-5 SOCKET-P5
714-43-101-31-018000
CONN SOCKET SIP 1POS GOLD
