Definition:
Mechanical thermostats are temperature-sensing devices that utilize physical mechanisms to monitor and regulate temperature without relying on electronic components. These devices typically employ bimetallic strips, gas-filled bellows, or wax actuators to trigger mechanical switches, making them simple, durable, and cost-effective solutions for temperature control in various applications.
Types of Products in This Category:
1. Bimetallic Thermostats: Use two bonded metals with different thermal expansion rates to actuate a switch at a set temperature.
2. Gas-Actuated Thermostats: Rely on the expansion/contraction of gas-filled bellows to control electrical contacts.
3. Wax Thermostats: Utilize wax pellets that expand when heated, mechanically pushing a rod to open or close a circuit.
4. Line Voltage Thermostats: Designed to directly control high-voltage heating systems without requiring an external relay.
5. Snap-Disc Thermostats: Feature a pre-calibrated disc that snaps to break or make contact at specific temperatures.
Buying Recommendations:
- Application Compatibility: Ensure the thermostat s temperature range and switching capacity match your system requirements (e.g., HVAC, industrial equipment, or appliances).
- Durability: For harsh environments, opt for models with robust housings (e.g., stainless steel or weatherproof enclosures).
- Accuracy & Calibration: Mechanical thermostats have inherent hysteresis; verify tolerance levels ( 1 C to 5 C) align with your precision needs.
- Certifications: Check for industry-standard certifications (UL, CE, RoHS) to guarantee safety and compliance.
- Installation Type: Select surface-mount, immersion, or insertion models based on your mounting constraints.
Ideal for budget-conscious or high-reliability applications where simplicity is prioritized over programmability, mechanical thermostats remain a staple in temperature control systems.
Filter and sort
Categories
67L090P
THERMOSTAT 90DEG C NC TO220-2

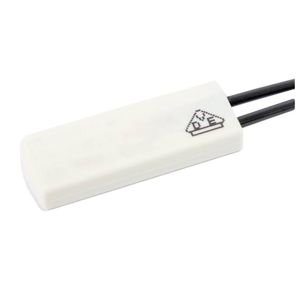

M2H 185X
THERMOSTAT 185DEG C 2WRS NOMOUNT
67F050-0127
THERMOSTAT 50DEG C NO TO220-2
66F085
THERMOSTAT 85DEG C SPST-NO 8DIP

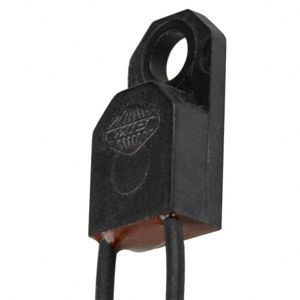

F20B07005ACFA06E
THERMOSTAT 70DEG C SPST-NO WIRE

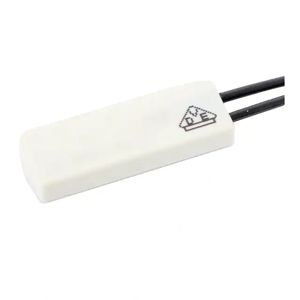

M2 90XD
THERMOSTAT 90DEG C 5A
67L090-0281
THERMOSTAT 90DEG C NC TO220-2
67L050P
THERMOSTAT 50DEG C NC TO220-2

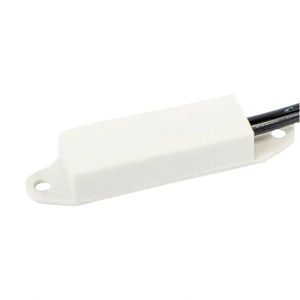

M3 30XB
THERMOSTAT 30DEG C 5A HOLE
67L105-0044
THERMOSTAT 105DEG C NC TO220-2
67L065P
THERMOSTAT 65DEG C NC TO220-2
67F080-0319
THERMOSTAT 80DEG C NO TO220-2
67F130P
THERMOSTAT 130DEG C NO TO220-2
67F130
THERMOSTAT 130DEG C NO TO220-2

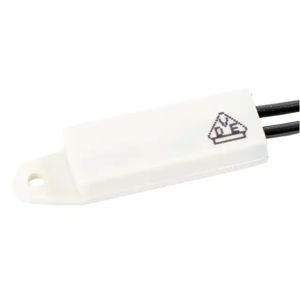

MQT8K 76XD
THERMOSTAT 76DEG C 2A HOLE
67L083-0066
THERMOSTAT 83DEG C NC TO220-2
67F070
THERMOSTAT 70DEG C NO TO220-2
M2H 120X
THERMOSTAT 120DEG C 2WRS NOMOUNT
67F089-0092
THERMOSTAT 90DEG C NO TO220-2
66L080-0226
THERMOSTAT 80DEG C SPST-NC 8DIP
