Temperature Sensors - Thermostats - Mechanical
Temperature Sensors - Thermostats - Mechanical
Definition:
Mechanical thermostats are temperature-sensing devices that utilize physical mechanisms to monitor and regulate temperature without relying on electronic components. These devices typically employ bimetallic strips, gas-filled bellows, or wax actuators to trigger mechanical switches, making them simple, durable, and cost-effective solutions for temperature control in various applications.
Types of Products in This Category:
1. Bimetallic Thermostats: Use two bonded metals with different thermal expansion rates to actuate a switch at a set temperature.
2. Gas-Actuated Thermostats: Rely on the expansion/contraction of gas-filled bellows to control electrical contacts.
3. Wax Thermostats: Utilize wax pellets that expand when heated, mechanically pushing a rod to open or close a circuit.
4. Line Voltage Thermostats: Designed to directly control high-voltage heating systems without requiring an external relay.
5. Snap-Disc Thermostats: Feature a pre-calibrated disc that snaps to break or make contact at specific temperatures.
Buying Recommendations:
- Application Compatibility: Ensure the thermostat s temperature range and switching capacity match your system requirements (e.g., HVAC, industrial equipment, or appliances).
- Durability: For harsh environments, opt for models with robust housings (e.g., stainless steel or weatherproof enclosures).
- Accuracy & Calibration: Mechanical thermostats have inherent hysteresis; verify tolerance levels ( 1 C to 5 C) align with your precision needs.
- Certifications: Check for industry-standard certifications (UL, CE, RoHS) to guarantee safety and compliance.
- Installation Type: Select surface-mount, immersion, or insertion models based on your mounting constraints.
Ideal for budget-conscious or high-reliability applications where simplicity is prioritized over programmability, mechanical thermostats remain a staple in temperature control systems.
Filter and sort
Categories

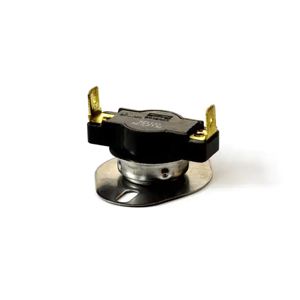

SES-L190
3/4" DISC THERMOSTAT, 25AMP
F20A085051ZA0060
THERMOSTAT 85DEG C SPST-NC 2SIP
66L100-0351
THERMOSTAT 100DEG C SPST-NC 8DIP
66F045-0383
THERMOSTAT 45DEG C SPST-NO 8DIP
67L120-0378
THERMOSTAT 120DEG C NC TO220-2
66F065-0133
THERMOSTAT 65DEG C SPST-NO 8DIP

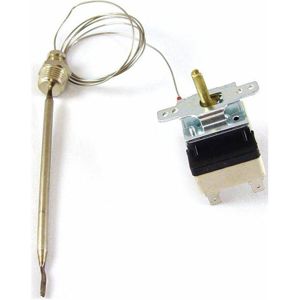

CAP-120-392-1
BULB AND CAPILLARY THERMOSTAT
66L065-0273
THERMOSTAT 65DEG C SPST-NC 8DIP
66F070-0071
THERMOSTAT 70DEG C SPST-NO 8DIP

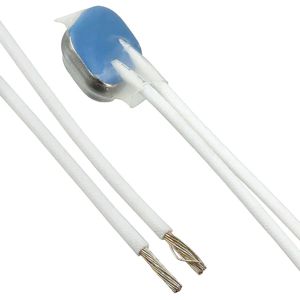

T22A13005DFFBG0E
THERMOSTAT 130DEG C SPST-NC WIRE

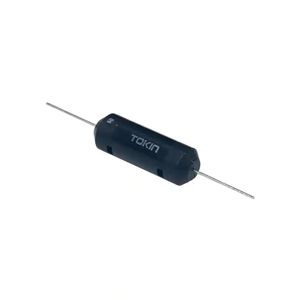

M-TRS5-70B
THERMOSTAT 70DEG C SPST-NC AXIAL

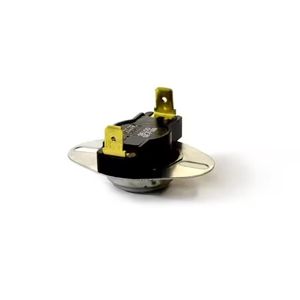

SE-F110
3/4" DISC THERMOSTAT, 25AMP
66F080
THERMOSTAT 80DEG C SPST-NO 8DIP
66F085-0212
THERMOSTAT 85DEG C SPST-NO 8DIP
66L065-0413
THERMOSTAT 65DEG C SPST-NC 8DIP

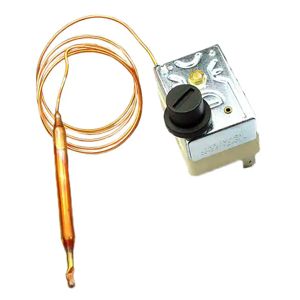

CAP-MR-572-B
BULB AND CAPILLARY THERMOSTAT
66L100-0466
THERMOSTAT 100DEG C SPST-NC 8DIP
67L070-0323
THERMOSTAT 70DEG C NC TO220-2
67L100P
THERMOSTAT 100DEG C NC TO220-2
67F075-0410
THERMOSTAT 75DEG C NO TO220-2
