Temperature Sensors - Thermostats - Mechanical
Temperature Sensors - Thermostats - Mechanical
Definition:
Mechanical thermostats are temperature-sensing devices that utilize physical mechanisms to monitor and regulate temperature without relying on electronic components. These devices typically employ bimetallic strips, gas-filled bellows, or wax actuators to trigger mechanical switches, making them simple, durable, and cost-effective solutions for temperature control in various applications.
Types of Products in This Category:
1. Bimetallic Thermostats: Use two bonded metals with different thermal expansion rates to actuate a switch at a set temperature.
2. Gas-Actuated Thermostats: Rely on the expansion/contraction of gas-filled bellows to control electrical contacts.
3. Wax Thermostats: Utilize wax pellets that expand when heated, mechanically pushing a rod to open or close a circuit.
4. Line Voltage Thermostats: Designed to directly control high-voltage heating systems without requiring an external relay.
5. Snap-Disc Thermostats: Feature a pre-calibrated disc that snaps to break or make contact at specific temperatures.
Buying Recommendations:
- Application Compatibility: Ensure the thermostat s temperature range and switching capacity match your system requirements (e.g., HVAC, industrial equipment, or appliances).
- Durability: For harsh environments, opt for models with robust housings (e.g., stainless steel or weatherproof enclosures).
- Accuracy & Calibration: Mechanical thermostats have inherent hysteresis; verify tolerance levels ( 1 C to 5 C) align with your precision needs.
- Certifications: Check for industry-standard certifications (UL, CE, RoHS) to guarantee safety and compliance.
- Installation Type: Select surface-mount, immersion, or insertion models based on your mounting constraints.
Ideal for budget-conscious or high-reliability applications where simplicity is prioritized over programmability, mechanical thermostats remain a staple in temperature control systems.
Filter and sort
Categories
66F040-0030
THERMOSTAT 40DEG C SPST-NO 8DIP
66F055-0067
THERMOSTAT 55DEG C SPST-NO 8DIP
67F050
THERMOSTAT 50DEG C NO TO220-2
67L060-0368
THERMOSTAT 60DEG C NC TO220-2
66F078-0259
THERMOSTAT 78DEG C SPST-NO 8DIP

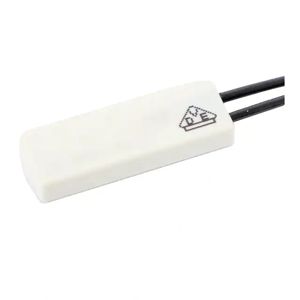

M2 30XD
THERMOSTAT 30DEG C 5A

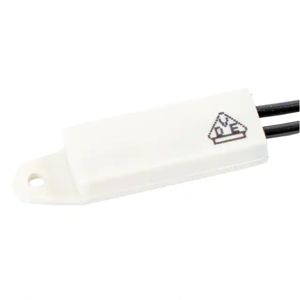

MQT8K 85XD
THERMOSTAT 85DEG C 2A HOLE
67L125-0145
THERMOSTAT 125DEG C NC TO220-2
67L090-0041
THERMOSTAT 90DEG C NC TO220-2
67L105-0375
THERMOSTAT 105DEG C NC TO220-2
67L130-0352
THERMOSTAT 130DEG C NC TO220-2
66L090-0429
THERMOSTAT 90DEG C SPST-NC 8DIP

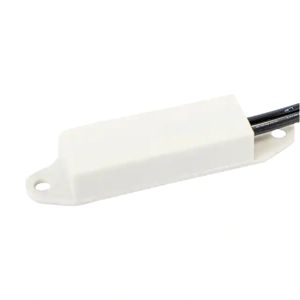

M3 70XC
THERMOSTAT 70DEG C 5A HOLE
67L065-0404
THERMOSTAT 65DEG C NC TO220-2
67L075-0415
THERMOSTAT 75DEG C NC TO220-2
67L130
THERMOSTAT 130DEG C NC TO220-2

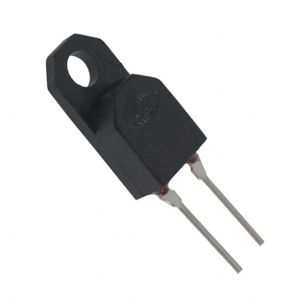

F20A105053600060
THERMOSTAT 105DEG C SPST-NC 2SIP
66L080-0251
THERMOSTAT 80DEG C SPST-NC 8DIP
M2HA 225X
THERMOSTAT 225DEG C 2A HOLE
66F040-0441
THERMOSTAT 40DEG C SPST-NO 8DIP
