Terminal Blocks - Wire to Board
Terminal Blocks - Wire to Board: Reliable Connectivity Solutions
Definition:
Terminal Blocks - Wire to Board are essential components in electrical and electronic systems, designed to securely connect wires to a printed circuit board (PCB). These blocks provide a modular, reusable interface for establishing reliable electrical connections, simplifying wiring processes, and ensuring efficient signal or power transmission. They are widely used in industrial control systems, automation, power distribution, and consumer electronics.
Types of Terminal Blocks - Wire to Board:
1. Barrier Terminal Blocks: Feature screw or clamp mechanisms to secure wires, ideal for high-vibration environments.
2. PCB-Mounted Terminal Blocks: Directly soldered onto PCBs, offering compact and space-saving solutions.
3. Spring-Clamp Terminal Blocks: Utilize spring-loaded mechanisms for quick, tool-free wire insertion.
4. Plug-in Terminal Blocks: Allow easy disconnection and reconfiguration, suitable for modular systems.
5. Feed-Through Terminal Blocks: Enable wire-to-wire connections while maintaining PCB connectivity.
Purchasing Recommendations:
- Current & Voltage Ratings: Ensure the terminal block matches your application s electrical requirements.
- Wire Gauge Compatibility: Verify the block supports the wire sizes you intend to use.
- Pitch Size: Select the appropriate spacing (e.g., 3.5mm, 5mm) to fit your PCB layout.
- Material & Durability: Opt for high-temperature-resistant plastics or flame-retardant materials for harsh environments.
- Certifications: Look for industry-standard approvals (UL, IEC, RoHS) to guarantee safety and compliance.
Terminal Blocks - Wire to Board streamline electrical assembly while enhancing system reliability. Choosing the right type ensures optimal performance and long-term durability for your projects.
Filter and sort
Categories

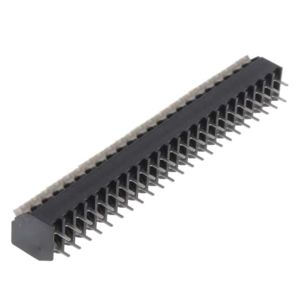

1886090000
TERM BLK 23POS 45DEG 3.81MM PCB

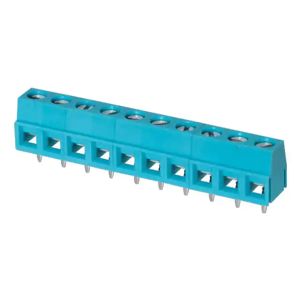

TB006-508-10BE
TERMINAL BLOCK, SCREW TYPE, 5.08

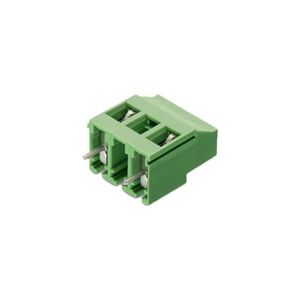

691253610002
10.16 MM TERMINAL BLOCK, HORIZON

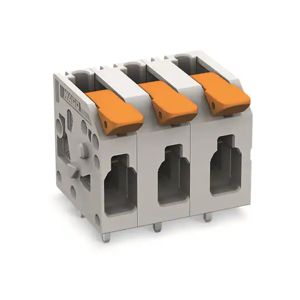

2604-1302
PCB TERMINAL BLOCK; LEVER; 4 MM;

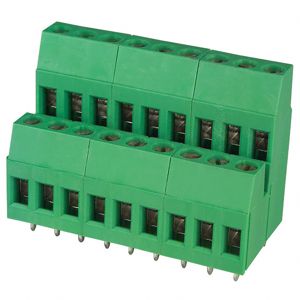

ED790/9
TERM BLK 9POS SIDE ENTRY 5MM PCB

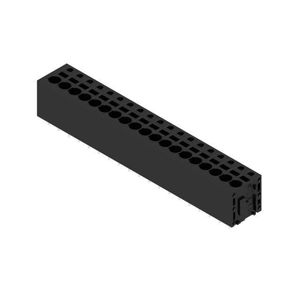

1425730000
LMFS 5.00/19/180 3.5SN BK BX

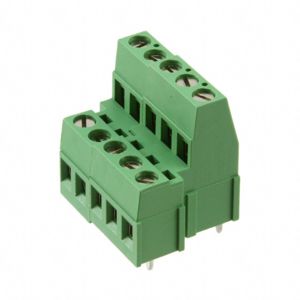

796692-5
TERM BLK 5P SIDE ENT 5.08MM PCB

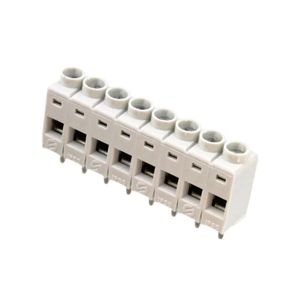

691131710008
TERM BLK 8POS SIDE ENTRY 5MM PCB

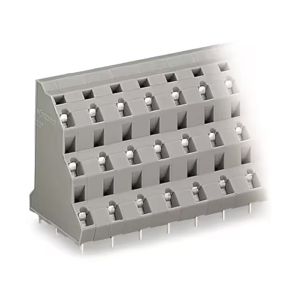

737-704
TRIPLE-DECK PCB TERMINAL BLOCK;

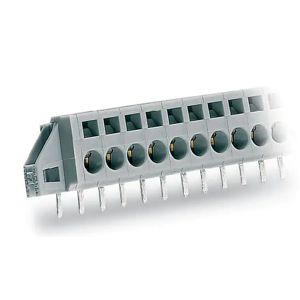

231-612/017-000
PCB TERMINAL BLOCK; 2.5 MM; PIN

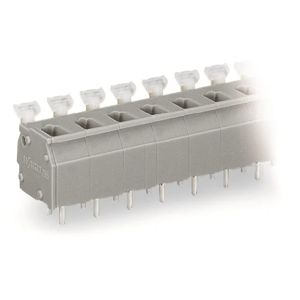

255-506
PCB TERMINAL BLOCK; PUSH-BUTTON;

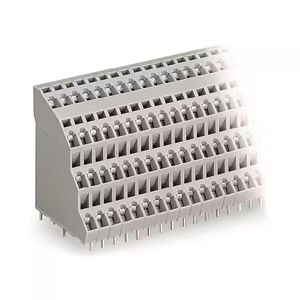

738-203
QUADRUPLE-DECK PCB TERMINAL BLOC

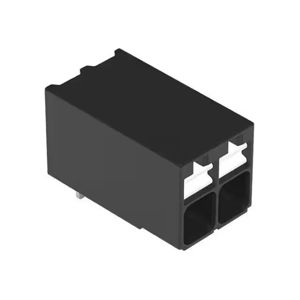

2086-1222/300-000
TERM BLK 2P SIDE ENT 3.5MM PCB

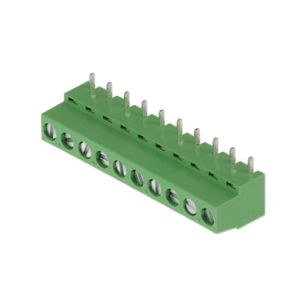

691242500010
5.08 MM TERMINAL BLOCK, VERTICAL

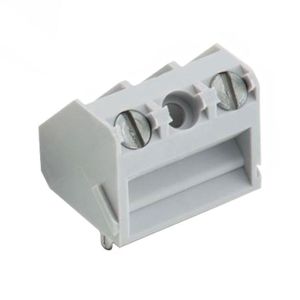

691201620002
TERM BLK 2POS 45DEG 10.16MM PCB

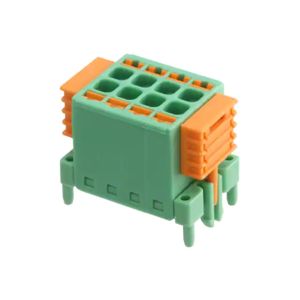

1848668
TERM BLOCK 4POS TOP ENTRY 3.5MM

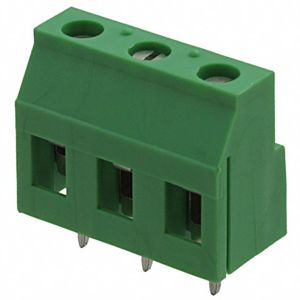

1731035
TERM BLK 3POS SIDE ENT 7.5MM PCB

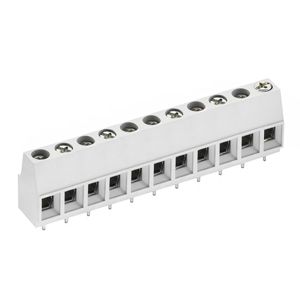

691256610011
TERM BLK 11P SIDE ENTRY 10.16MM

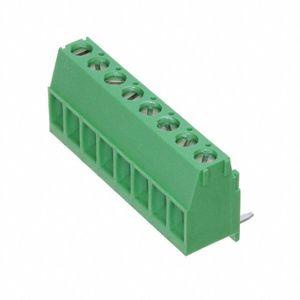

284415-8
TERM BLK 8POS TOP ENT 3.81MM PCB

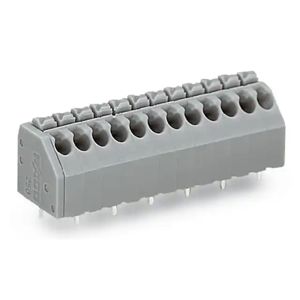

250-218
PCB TERMINAL BLOCK; PUSH-BUTTON;
