1. Definition of Magnetic Wire Connectors
Terminals - Magnetic Wire Connectors are specialized electrical components designed to establish secure, low-resistance connections for magnet wire (enameled wire) in high-performance applications. These connectors feature precision-engineered terminals that pierce or displace the wire's insulation, ensuring reliable conductivity without stripping. Commonly used in transformers, motors, solenoids, and inductors, they excel in environments demanding vibration resistance, compact spacing, and efficient power transmission.
2. Types of Magnetic Wire Connectors
This category includes several key variants:
- Insulation Displacement Connectors (IDC): Slotted terminals that cut through enamel insulation for gas-tight connections.
- Crimp Terminals: Pre-insulated or bare metal sleeves crimped onto stripped magnet wire.
- PCB Mount Connectors: Board-mounted terminals for direct magnet wire attachment.
- Quick-Connect Terminals: Tool-free designs for rapid assembly.
Materials range from phosphor bronze (for high conductivity) to nickel-plated steel (for durability), with voltage ratings spanning 300V to 1kV+.
3. Purchasing Recommendations
When selecting Magnetic Wire Connectors, consider:
- Wire Gauge Compatibility: Match terminal size (e.g., 18-22 AWG) to your wire diameter.
- Current Rating: Ensure the connector meets or exceeds the application s amperage needs.
- Environmental Factors: Opt for heat-resistant or waterproof designs if exposed to extreme conditions.
- Certifications: Look for UL, IEC, or RoHS compliance for safety and regulatory adherence.
For automated production, IDC types reduce labor costs, while hand-assembled projects may favor crimp terminals. Partner with trusted suppliers to avoid counterfeit components in critical circuits.
Note: Always verify datasheets for thermal cycling performance and termination torque specifications.
Filter and sort
Categories
62928-1
CONN MAG TERM 28-31AWG PCB

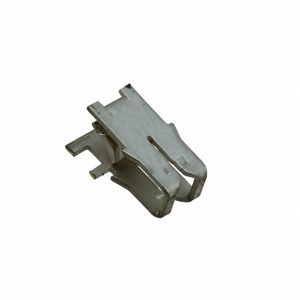

63658-2
CONN MAG TERM 22-25AWG IDC
63039-1
CONN MAG TERM 31-33AWG CRIMP

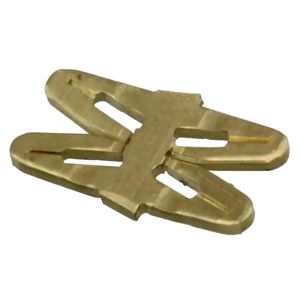

4-1601117-1
CONN MAG TERM 27-36AWG IDC

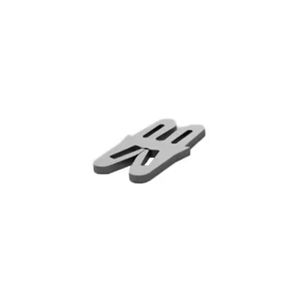

2-1601075-2
CONN MAG TERM 18-34AWG IDC
63975-1
CONN MAG TERM 18-19/23-27AWG IDC

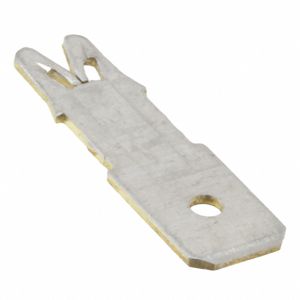

4-1601006-2
CONN MAG TERM 18-34AWG QC 0.187
316300-4
CONN MAG TERM 24-25AWG TAB
1217931-1
CONN MAG TERM 22-25AWG TAB
1601140-1
CONN MAG TERM 18-22AWG IDC
62429-1
CONN MAG TERM 27-30AWG IDC
62000-2
CONN MAG TERM 600-3000CMA CRIMP
63920-1
CONN MAG TERM 23-27AWG QC 0.250
4-1601041-3
CONN MAG TERM 18-34AWG PCB
63711-2
CONN MAG TERM 28-30AWG IDC
1742964-1
CONN MAG TERM 1600-4100CMA CRIMP
63340-1
CONN MAG TERM 20-23AWG QC 0.187
63632-1
CONN MAG TERM 23-27AWG IDC
1601000-1
CONN MAG TERM 18-34AWG IDC
1217324-1
CONN MAG TERM 14-18AWG POKE-IN
