Terminals - Ring Connectors: Secure and Reliable Electrical Connections
Definition:
Terminals - Ring Connectors are a specialized type of electrical connector designed to create secure, permanent, or semi-permanent connections in wiring systems. These connectors feature a circular (ring-shaped) terminal that is crimped or soldered to a wire and then fastened to a stud or post using a screw or bolt. They are widely used in applications requiring robust, vibration-resistant connections.
Types of Ring Connectors:
1. Insulated vs. Non-Insulated: Insulated ring terminals have a plastic sleeve for added protection against short circuits, while non-insulated types are ideal for compact spaces.
2. Material Options: Available in copper, brass, or tin-plated variants for corrosion resistance and optimal conductivity.
3. Size Variations: Sizes range from small (e.g., 22-16 AWG) for electronics to large (e.g., 6-2 AWG) for automotive or industrial power systems.
4. Stud Hole Diameter: Standard sizes include 1/4", 5/16", and 3/8" to match different stud dimensions.
Purchasing Recommendations:
- Match Wire Gauge: Ensure the terminal s AWG rating corresponds to your wire size for a secure crimp.
- Environment Considerations: Choose insulated terminals for exposed or high-moisture environments and corrosion-resistant materials for harsh conditions.
- Tool Compatibility: Use a quality crimping tool to avoid loose connections, which can lead to overheating.
- Certifications: Look for UL, CSA, or RoHS compliance for safety and environmental standards.
Ideal for automotive, marine, industrial, and DIY projects, ring connectors provide a dependable solution for high-current and vibration-prone applications. Invest in the right type to ensure long-term electrical reliability.
Filter and sort
Categories

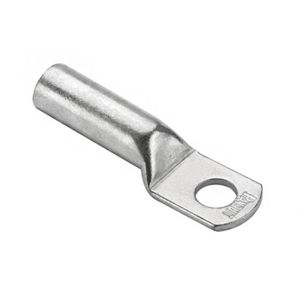

LCMB400-16-6
CONN TERM RECT RING 400MM #M16

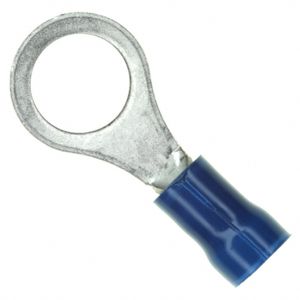

34163
CONN RING CIRC 14-16AWG #5/16

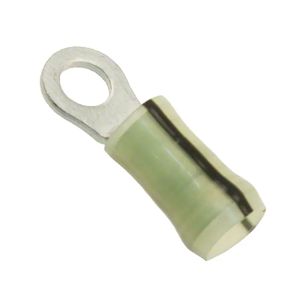

2-34805-1
CONN RING CIRC 14-16AWG #10

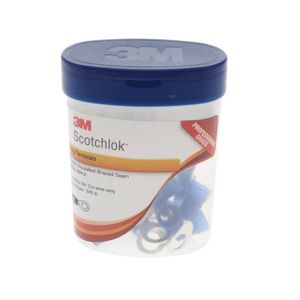

MN6-38RX-BOTTLE
CONN RING CIRC 6AWG #3/8 10PC
52042-4
CONN RING CIRC 6AWG #10 CRIMP

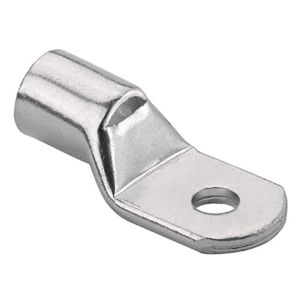

LCMA95-10-L
CONN TERM RECT RING 95MM #M10

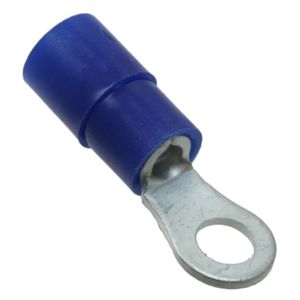

3240022
CONN RING CIRC 14-16AWG M3.5
LCMA150-20-X
CONN TERM RECT RING 150MM #M20

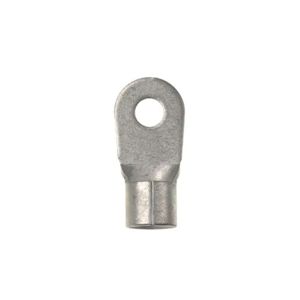

P6-38R-T
CONN RING CIRC 6AWG #3/8 CRIMP

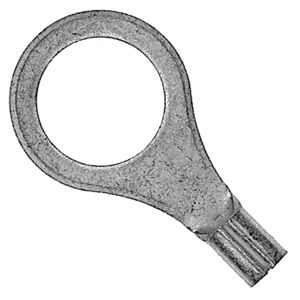

34114
CONN RING CIRC 16-22AWG #5/16

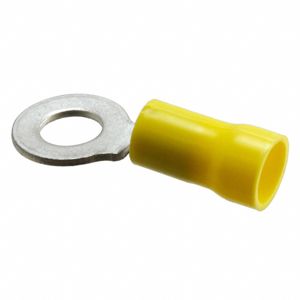

5-1377175-4
CONN RING CIRC 10-12AWG #1/4

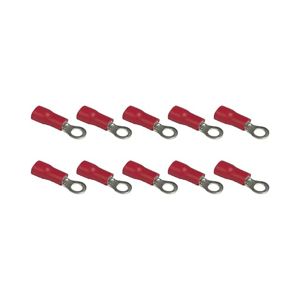

RVS1.25-5-10
RING TERMINALS, PVC INSULATED, 1

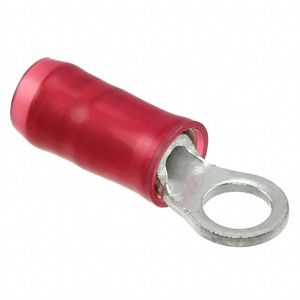

8-36149-1
CONN RING CIRC 16-22AWG #6 CRIMP

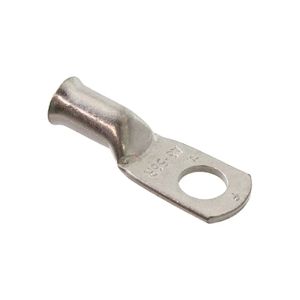

A6-56R-C
BATTERY CABLE LUG, 6 AWG, 5/16"

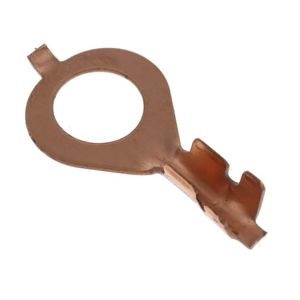

160789-3
CONN RING CIRC 15-17AWG CRIMP

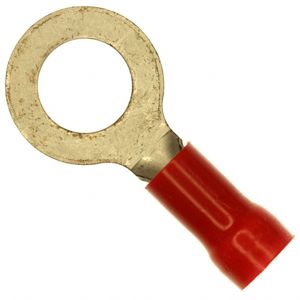

52262-1
CONN RING CIRC 8AWG #1/2 CRIMP

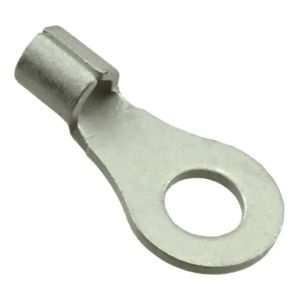

0190690121
CONN RING CIRC 14-16AWG #8 CRIMP

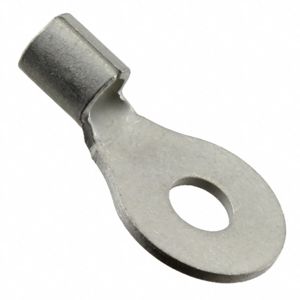

0190690217
CONN RING CIRC 10-12AWG #10

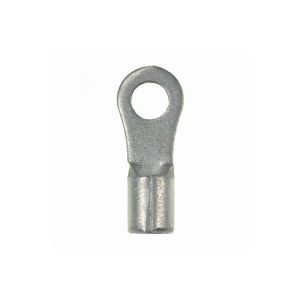

P12-6HDR-L
CONN RING CIRC 12-16AWG #6 CRIMP

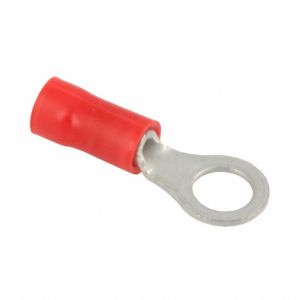

8-34149-1
CONN RING CIRC 16-22AWG #10
