Terminals - Ring Connectors
Terminals - Ring Connectors: Secure and Reliable Electrical Connections
Definition:
Terminals - Ring Connectors are a specialized type of electrical connector designed to create secure, permanent, or semi-permanent connections in wiring systems. These connectors feature a circular (ring-shaped) terminal that is crimped or soldered to a wire and then fastened to a stud or post using a screw or bolt. They are widely used in applications requiring robust, vibration-resistant connections.
Types of Ring Connectors:
1. Insulated vs. Non-Insulated: Insulated ring terminals have a plastic sleeve for added protection against short circuits, while non-insulated types are ideal for compact spaces.
2. Material Options: Available in copper, brass, or tin-plated variants for corrosion resistance and optimal conductivity.
3. Size Variations: Sizes range from small (e.g., 22-16 AWG) for electronics to large (e.g., 6-2 AWG) for automotive or industrial power systems.
4. Stud Hole Diameter: Standard sizes include 1/4", 5/16", and 3/8" to match different stud dimensions.
Purchasing Recommendations:
- Match Wire Gauge: Ensure the terminal s AWG rating corresponds to your wire size for a secure crimp.
- Environment Considerations: Choose insulated terminals for exposed or high-moisture environments and corrosion-resistant materials for harsh conditions.
- Tool Compatibility: Use a quality crimping tool to avoid loose connections, which can lead to overheating.
- Certifications: Look for UL, CSA, or RoHS compliance for safety and environmental standards.
Ideal for automotive, marine, industrial, and DIY projects, ring connectors provide a dependable solution for high-current and vibration-prone applications. Invest in the right type to ensure long-term electrical reliability.
Filter and sort
Categories

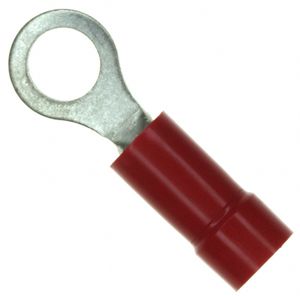

PV18-10R-CY
CONN RING CIRC 18-22AWG #10
76-RT8-1/4C
NON INS RING TERM 8AWG 100 BAG

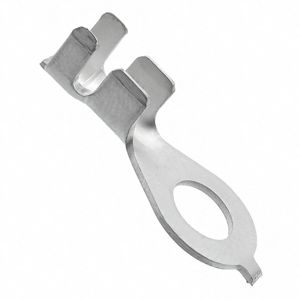

626037-1
CONN RING CIRC 10-11AWG CRIMP

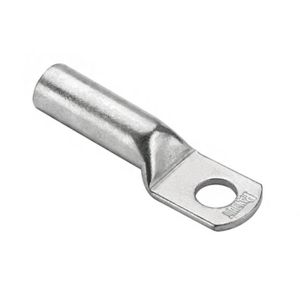

LCMB16-8-L
CONN TERM RECT RING 16MM #M8

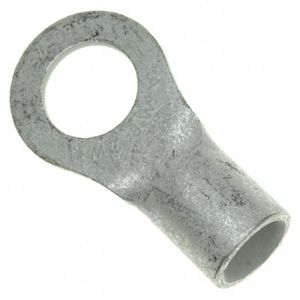

35185
CONN RING CIRC 2AWG #1/2 CRIMP

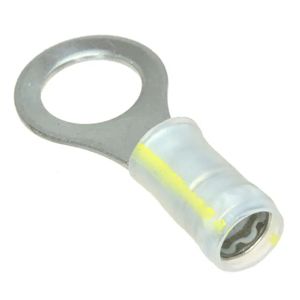

53428-1
CONN RING CIRC 10-12AWG #3/8

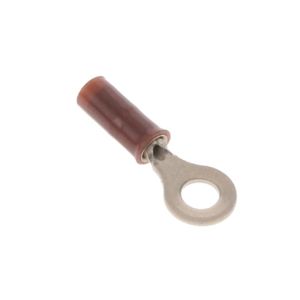

1577619-1
CONN RING CIRC 22-24AWG #6 CRIMP
61588-1
CONN RING CIRC 16-22AWG #6 CRIMP

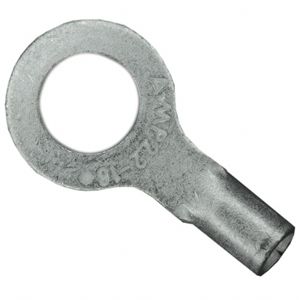

32824
CONN RING CIRC 16-22AWG #10

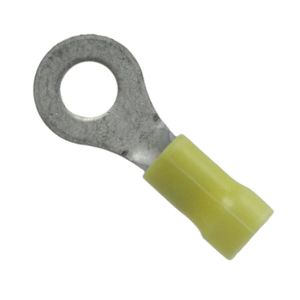

8-34855-2
CONN RING CIRC 10-12AWG #1/4

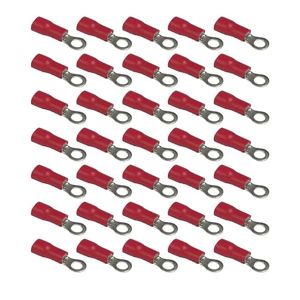

RVS1.25-4-100
RING TERMINALS, PVC INSULATED, 1

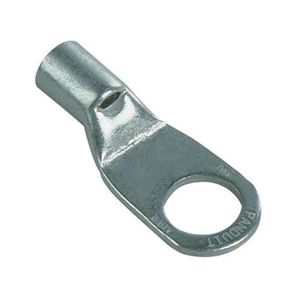

S2/0-12R-C
CONN RING FLAT 2/0AWG #1/2 CRIMP

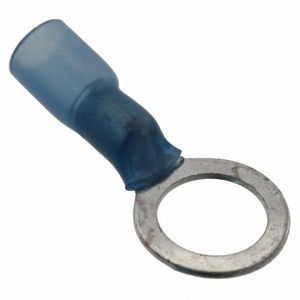

MH14-38RX-BOTTLE
CONN RING CIRC 14-16AWG 3/8 25PC

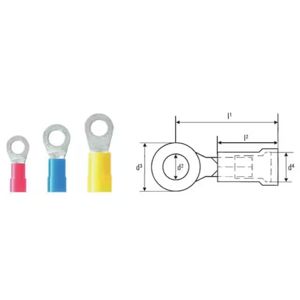

9200240000
CONN RING CIRC M5 CRIMP

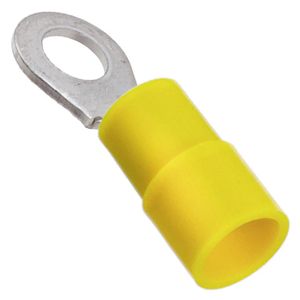

3240028
CONN RING CIRC 10AWG M5 CRIMP

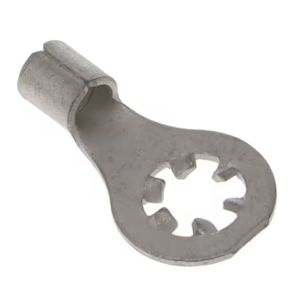

0190740021
CONN RING CIRC 14-16AWG #6 CRIMP

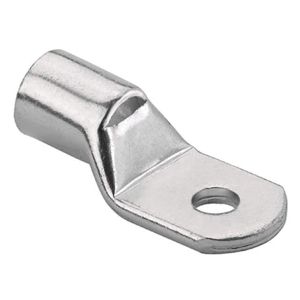

LCMA35-10-C
CONN TERM RECT RING 35MM #M10

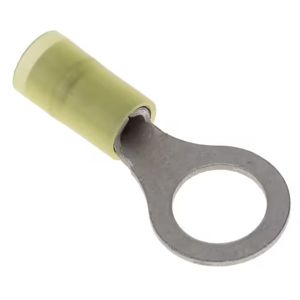

0190730237
CONN RING CIRC 10-12AWG #3/8

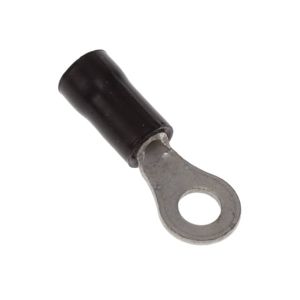

2-326819-1
CONN RING CIRC 16-22AWG #6 CRIMP
PNF18-56R-M
CONN RING CIRC 18-22AWG #5/16
