Terminals - Ring Connectors: Secure and Reliable Electrical Connections
Definition:
Terminals - Ring Connectors are a specialized type of electrical connector designed to create secure, permanent, or semi-permanent connections in wiring systems. These connectors feature a circular (ring-shaped) terminal that is crimped or soldered to a wire and then fastened to a stud or post using a screw or bolt. They are widely used in applications requiring robust, vibration-resistant connections.
Types of Ring Connectors:
1. Insulated vs. Non-Insulated: Insulated ring terminals have a plastic sleeve for added protection against short circuits, while non-insulated types are ideal for compact spaces.
2. Material Options: Available in copper, brass, or tin-plated variants for corrosion resistance and optimal conductivity.
3. Size Variations: Sizes range from small (e.g., 22-16 AWG) for electronics to large (e.g., 6-2 AWG) for automotive or industrial power systems.
4. Stud Hole Diameter: Standard sizes include 1/4", 5/16", and 3/8" to match different stud dimensions.
Purchasing Recommendations:
- Match Wire Gauge: Ensure the terminal s AWG rating corresponds to your wire size for a secure crimp.
- Environment Considerations: Choose insulated terminals for exposed or high-moisture environments and corrosion-resistant materials for harsh conditions.
- Tool Compatibility: Use a quality crimping tool to avoid loose connections, which can lead to overheating.
- Certifications: Look for UL, CSA, or RoHS compliance for safety and environmental standards.
Ideal for automotive, marine, industrial, and DIY projects, ring connectors provide a dependable solution for high-current and vibration-prone applications. Invest in the right type to ensure long-term electrical reliability.
Filter and sort
Categories

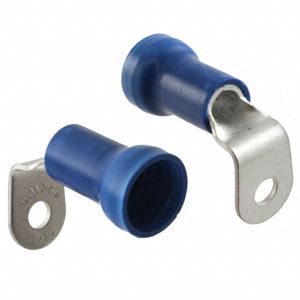

54753-1
CONN RING CIRC 6AWG #10 CRIMP

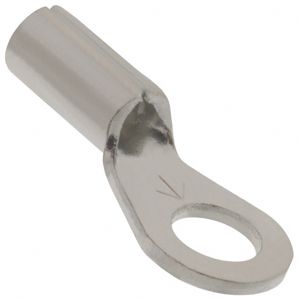

MU18-6R/SK
CONN RING CIRC 18-22AWG #6 CRIMP

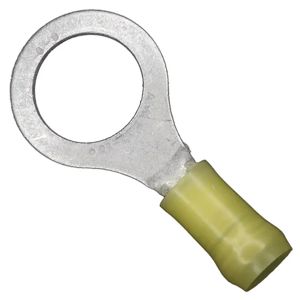

35151
CONN RING CIRC 10-12AWG #1/2

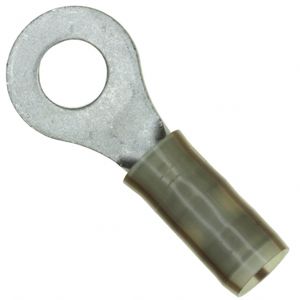

2-320569-6
CONN RING CIRC 10AWG #1/4 CRIMP

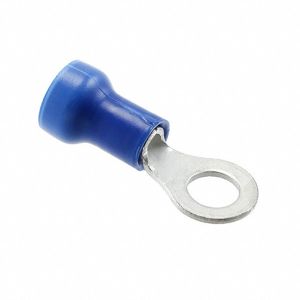

2-34161-3
CONN RING CIRC 14-16AWG #10

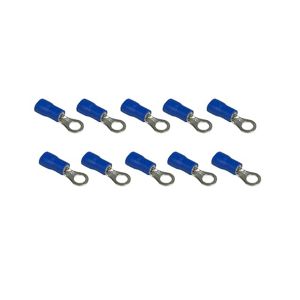

RVS2-3.5-10
RING TERMINALS, PVC INSULATED, 1

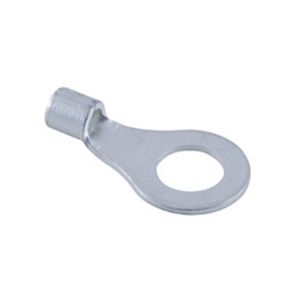

76-RT12-3/8
NON INS RING TERM 12-10WG

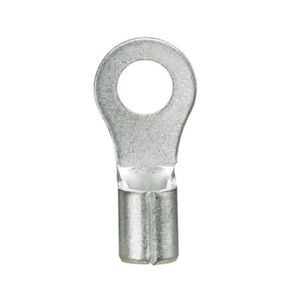

P14-6R-C
CONN RING CIRC 14-18AWG #6 CRIMP

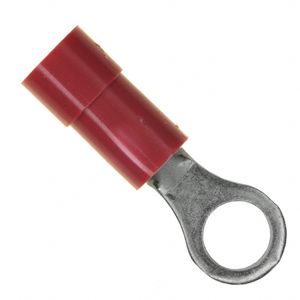

0190700045
CONN RING CIRC 18-22AWG #8 CRIMP

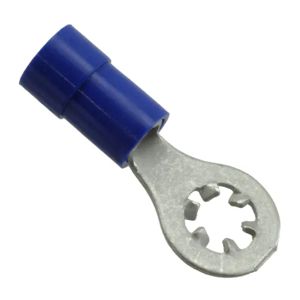

0190750019
CONN RING CIRC 14-16AWG #6 CRIMP

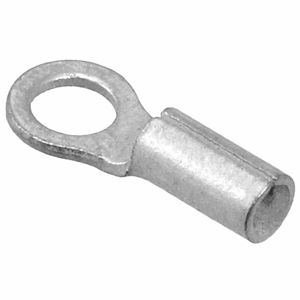

0190690101
CONN RING CIRC 14-16AWG #6 CRIMP

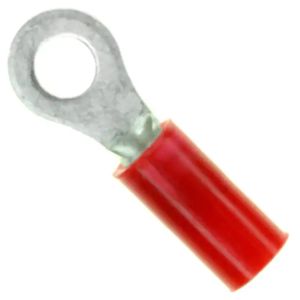

32947
CONN RING CIRC 16-22AWG #6 CRIMP

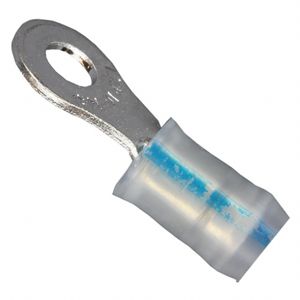

53416-1
CONN RING CIRC 14-16AWG #6 CRIMP

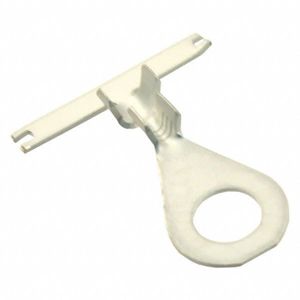

61867-2
CONN RING CIRC 14-18AWG CRIMP
P10-56R-L
CONN RING CIRC 10-12AWG #5/16
76-RT8-1/4
NON INS RING TERM 8 AWG

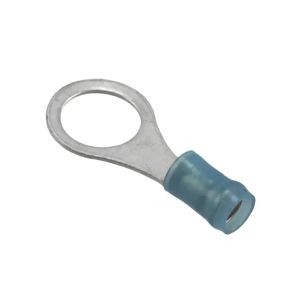

2-328999-1
CONN RING CIRC 14-16AWG #3/8

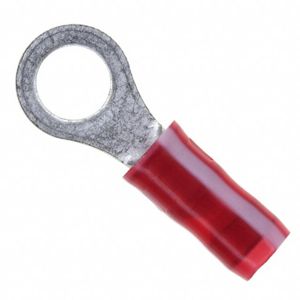

2-36153-5
CONN RING CIRC 18AWG #10 CRIMP

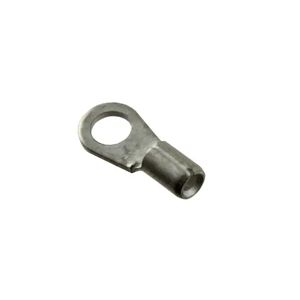

3240071
CONN RING CIRC 18-20AWG M3.5

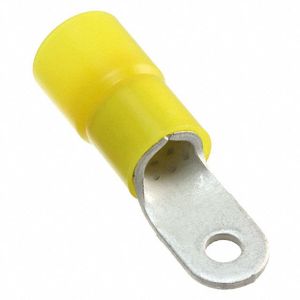

0190670081
CONN RING CIRC 4AWG #10 CRIMP
