Terminals - Spade Connectors

Terminals - Spade Connectors: Reliable Connections for Electrical Systems

Definition:

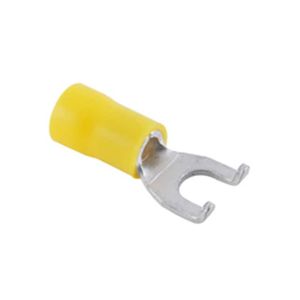

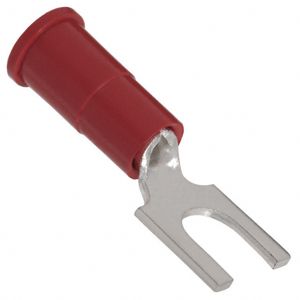

Terminals - Spade Connectors are a specialized type of electrical connector designed to create secure, removable connections in wiring systems. These connectors feature a flat, fork-like metal tongue (the "spade") that slides onto a corresponding stud or binding post, ensuring a stable and conductive link. Commonly used in automotive, industrial, and consumer electronics, spade connectors simplify wiring maintenance and upgrades while delivering consistent performance.

Types of Spade Connectors:

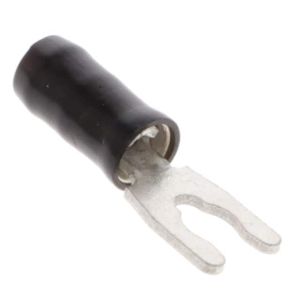

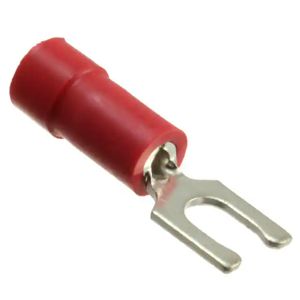

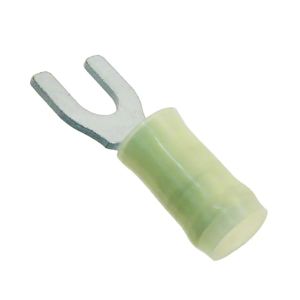

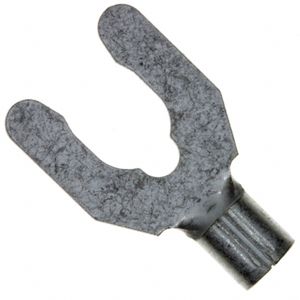

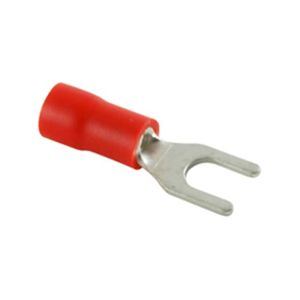

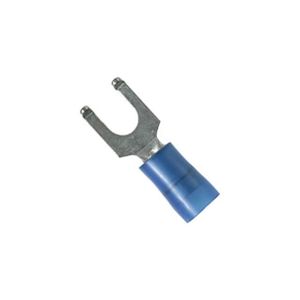

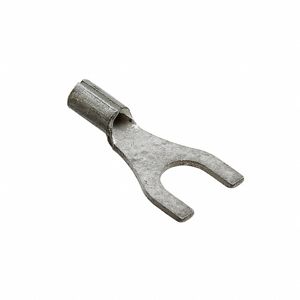

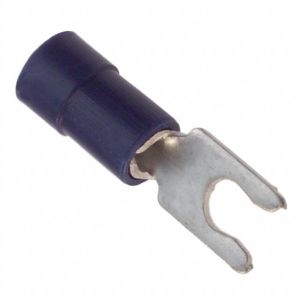

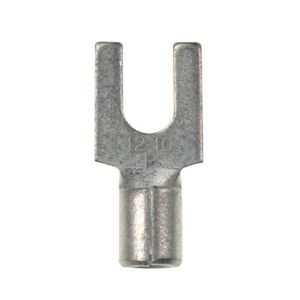

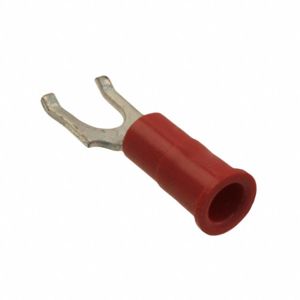

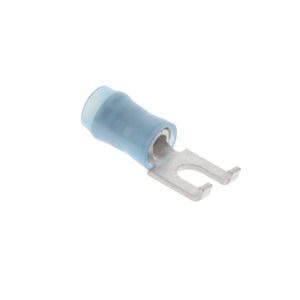

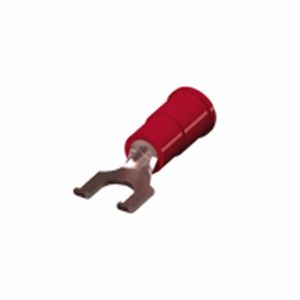

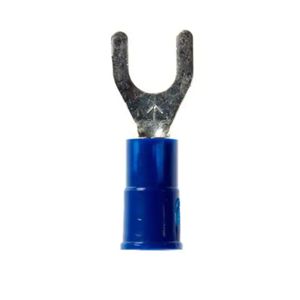

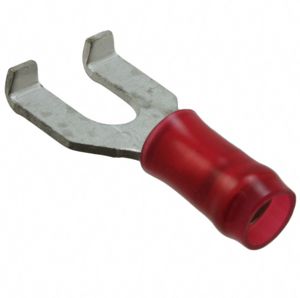

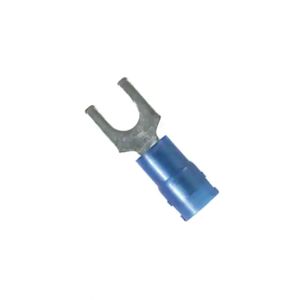

1. Insulated vs. Non-Insulated: Insulated spade connectors include a plastic sleeve for added safety and corrosion resistance, while non-insulated variants are ideal for compact spaces or custom shielding.
2. Fork Size Variations: Available in standard sizes (e.g., 1/4", 3/16") to match stud dimensions, with options for narrow or wide forks.
3. Material Options: Typically made from copper, brass, or tin-plated metals for optimal conductivity and durability.
4. Gender Types: Includes male (spade) and female (receptacle) configurations for versatile pairing.

Purchasing Recommendations:
- Match Wire Gauge: Ensure the connector s wire barrel size aligns with your cable s diameter for a snug, secure crimp.
- Environment Considerations: Choose insulated connectors for moisture-prone or high-vibration settings (e.g., automotive applications).
- Quality Compliance: Prioritize UL-listed or RoHS-compliant products to guarantee safety and environmental standards.
- Tool Compatibility: Use certified crimping tools for a gas-tight connection, reducing resistance and overheating risks.

Ideal for both DIY enthusiasts and professionals, spade connectors offer a balance of simplicity and reliability in electrical interconnections. Select the right type to enhance your project s efficiency and longevity.
