Thyristors - SCRs - Modules: Precision Power Control Components
Definition:
Thyristors, including Silicon-Controlled Rectifiers (SCRs) and modular assemblies, are critical discrete semiconductor devices designed for high-efficiency switching and power control in electronic circuits. SCRs are a subset of thyristors optimized for unidirectional current flow, enabling precise regulation of AC/DC power in industrial and consumer applications. Modules integrate multiple thyristors/SCRs with auxiliary components (e.g., heat sinks, drivers) to deliver robust, ready-to-deploy solutions for high-power systems.
Product Types:
1. Standard SCRs Single-device thyristors for medium-current applications (e.g., motor drives, lighting control).
2. Phase-Control Thyristors Optimized for AC power modulation (e.g., industrial heaters, soft starters).
3. SCR Modules Pre-assembled units with parallel SCRs for high-current loads (e.g., welding equipment, UPS systems).
4. Asymmetrical/Reverse-Blocking Thyristors Specialized for DC circuits or voltage-specific scenarios.
5. Intelligent Power Modules (IPMs) Combine SCRs with protection circuits and IGBTs for hybrid switching.
Purchasing Recommendations:
- Current/Voltage Ratings: Match device specifications (e.g., IT(RMS), VDRM) to your system s peak load requirements with a 20-30% safety margin.
- Thermal Management: For modules, verify built-in cooling options (e.g., baseplate isolation) or plan external heat dissipation.
- Triggering Compatibility: Ensure gate drive parameters (IGT, VGT) align with your control circuitry.
- Certifications: Prioritize UL/IEC-compliant products for safety-critical applications.
- Supplier Expertise: Source from vendors offering application engineering support for custom configurations.
Ideal for rectification, surge protection, and phase-angle control, thyristor modules bridge reliability and scalability in power electronics. Select based on operational frequency, form factor (stud-mount vs. modular), and lifecycle cost.
Filter and sort
Categories

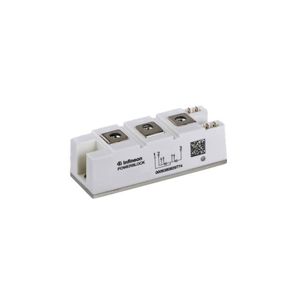

DD220N22SHPSA1
LA-T-BOND MODULE
F1892SD1000
MODULE SCR/DIODE 90A 380VAC

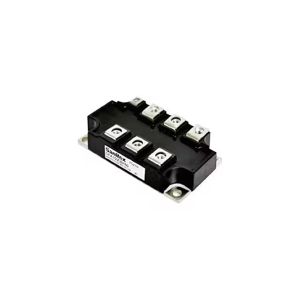

DFA200CB160
DIODE MODULE 1600V 200A
MCC162-18IO1B
BIPOLAR MODULE - THYRISTOR Y4-M

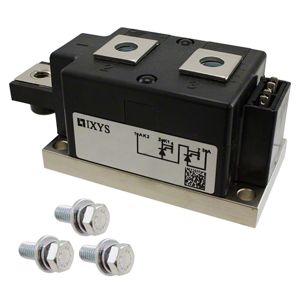

MCMA265P1600KA
SCR MODULE 1.6KV 260A Y1-CU
F1842HD1600
MODULE SCR/DIODE 40A 600VAC

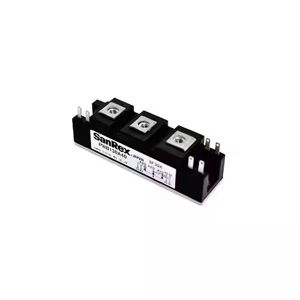

PWB130A30
THYRISTOR MODULE 300V 130A
VS-VSKN26/16
MODULE THYRISTOR 27A ADD-A-PAK

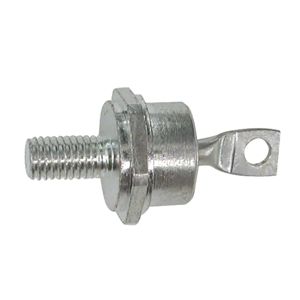

SKR71/06
70A 600V DO-5 M8 CATHODE TO CASE

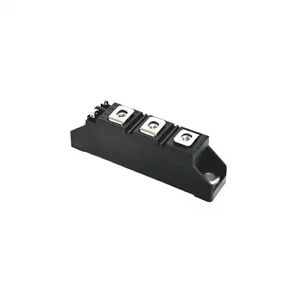

SCE110AA160
THYRISTOR MODULE 1600V 110A

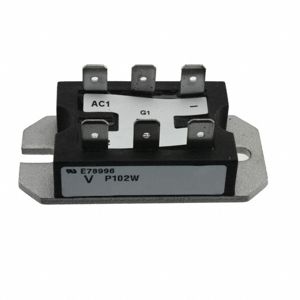

VS-P123
SCR HY-BRIDGE 800V 25A PACE-PAK

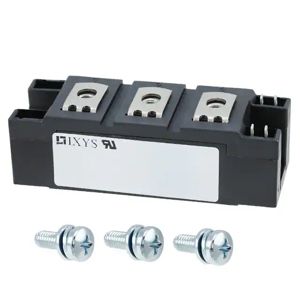

MCD161-20IO1
MOD THYRISTOR/DIODE 2000V Y4-M6

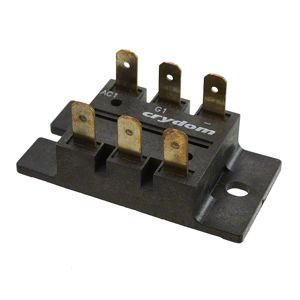

B532-2T
MOD DIODE SCR 25A 240VAC .250"QC

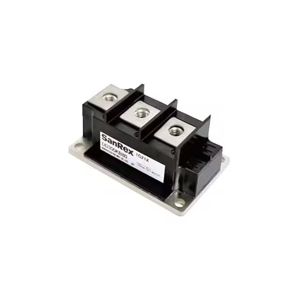

PD250GB80
THYRISTOR MODULE 800V 250A

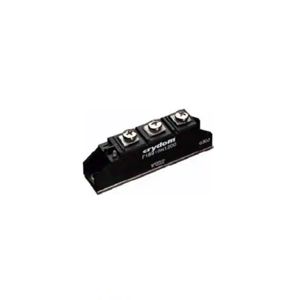

F1857HD1600
MODULE SCR/DIODE 55A 600VAC

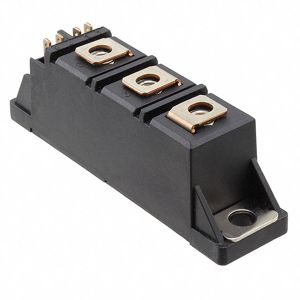

VS-VSKH91/06
MODULE THYRISTOR 95A ADD-A-PAK

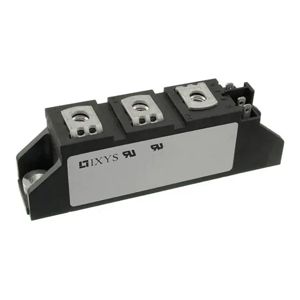

MCC19-16IO1B
THYRISTOR MODULE 1600V 2X40A
VS-VSKH162/12PBF
MODULE DIODE 160A INT-A-PAK

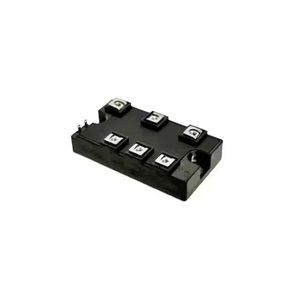

DFA150BA160
DIODE MODULE 1600V 150A

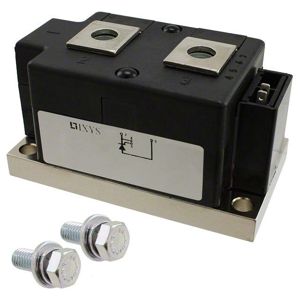

MCO500-16IO1
MOD THYRISTOR SGL 1600V Y1-CU
