Thyristors - SCRs
Thyristors - SCRs: Precision Power Control Components
Definition & Core Functionality
Thyristors - Silicon Controlled Rectifiers (SCRs) are critical semiconductor devices within the Discrete Semiconductor Products category, designed for high-efficiency power control in AC/DC circuits. As solid-state switches, SCRs excel in regulating high-voltage/high-current applications by triggering conduction with a gate signal and maintaining it until current drops below a threshold. Their unidirectional current flow makes them ideal for rectification, phase control, and surge protection in industrial and consumer electronics.
Key Types & Applications
1. Standard SCRs: General-purpose modules for motor controls, lighting systems, and power supplies.
2. Sensitive Gate SCRs: Low-trigger-current variants for precision circuits like medical equipment.
3. Phase-Control SCRs: Optimized for timing-dependent applications (e.g., dimmers, inverters).
4. High-Temperature SCRs: Robust designs for automotive/aviation systems.
Purchasing Recommendations
- Voltage/Current Ratings: Match device specs (e.g., VDRM, IT(RMS)) to operational demands, factoring in 20-30% overhead for safety.
- Gate Sensitivity: Select lower trigger currents (IGT) for low-power circuits; higher IGT ensures noise immunity in industrial settings.
- Packaging: TO-220/TO-263 packages balance heat dissipation and PCB space.
- Compliance: Prioritize UL/IEC-certified SCRs for regulated industries.
Why Choose SCRs?
SCRs offer unmatched reliability in harsh environments (e.g., temperature fluctuations, electrical noise), reducing maintenance costs versus mechanical switches. Their longevity (>100,000 cycles) and fast switching ( s-range) make them a cost-effective solution for energy-efficient designs.
Note: Pair with heat sinks for >5A applications to maximize lifespan.
Filter and sort
Categories
S4X8ESAP
SCR 400V 800MA TO92
S6016NRP
SCR 600V 16A TO263
S4012VTP
SCR 400V 12A TO251AA
NYC228STT1G
SCR 600V 1.5A SOT223

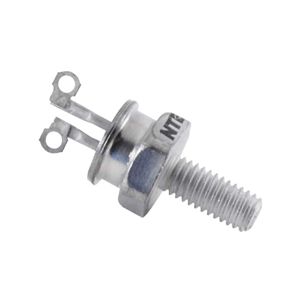

NTE5486
SCR 500V 8A TO64

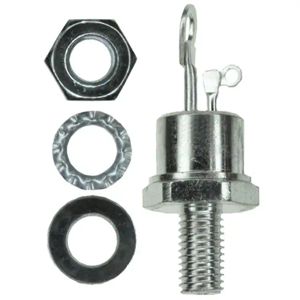

VS-22RIA40
SCR 400V 35A TO208AA
EC103M2AP
SCR 600V 800MA TO92
MCR218-6G
SCR 400V 8A TO220AB

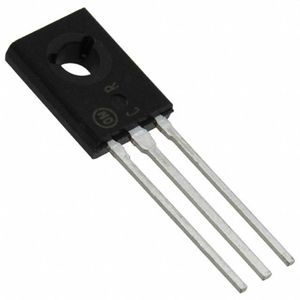

C106MG
SCR 600V 4A TO225AA

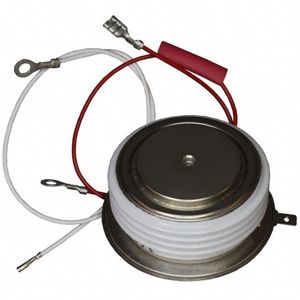

VS-ST330C16L0
SCR 1.6KV 1230A TO200AB
5P6J-Z-E1-AZ
SILICON CONTROLLED RECTIFIER

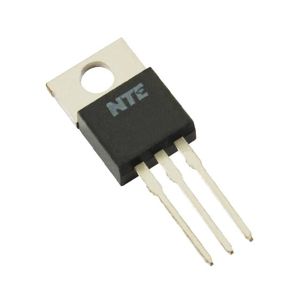

NTE5462
SCR 100V 10A TO220
TN1625-1000G-TR
SCR 1KV 16A D2PAK

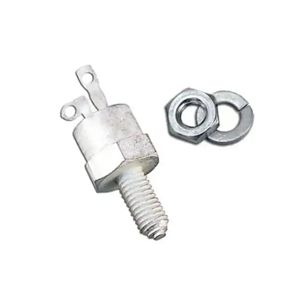

2N1775
TO64 8 AMP SCR

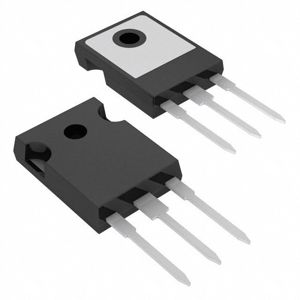

VS-30TPS16-M3
SCR 1.6KV 30A TO247AC
TN2540-600G-TR
SCR 600V 25A D2PAK
2N6403TG
SCR 400V 16A TO220AB
2N6509G
SCR 800V 25A TO220AB
MCR100-3G
SCR 100V 800MA TO92-3

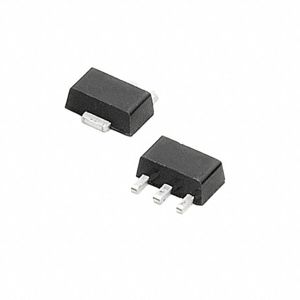

S6X8BS2RP
SCR 600V 800MA SOT89
