TVS - Thyristors: Robust Circuit Protection for Voltage Surge Suppression

Definition & Purpose
TVS (Transient Voltage Suppression) Thyristors are specialized semiconductor devices designed to protect sensitive electronic circuits from damaging voltage transients, including electrostatic discharge (ESD), lightning strikes, and inductive load switching surges. Combining the rapid response of TVS diodes with the high-current handling of thyristors, these components "crowbar" excess voltage by shunting it to ground, ensuring equipment reliability in harsh electrical environments.

Product Types & Applications
This category includes:
1. Bi-Directional TVS Thyristors: Safeguard AC/DC circuits by clamping overvoltage in both polarities.
2. Unidirectional TVS Thyristors: Optimized for DC systems, offering precise protection in one voltage direction.
3. High-Power Industrial-Grade Thyristors: Built for heavy-duty applications like motor drives and power grids.
Common use cases span automotive electronics, telecom infrastructure, industrial PLCs, and consumer devices (e.g., USB ports).

Selection Guide
1. Voltage Rating: Choose a breakdown voltage (VBR) 10-20% above the operating voltage.
2. Peak Pulse Current: Ensure the device meets or exceeds expected surge levels (e.g., 100A for IEC 61000-4-5 compliance).

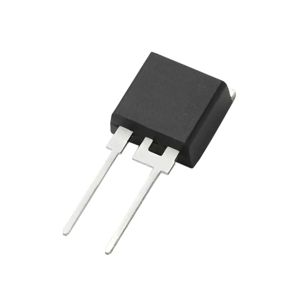

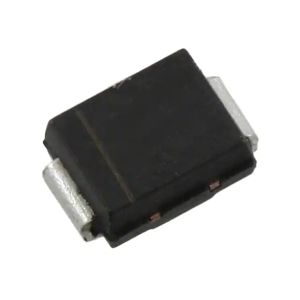

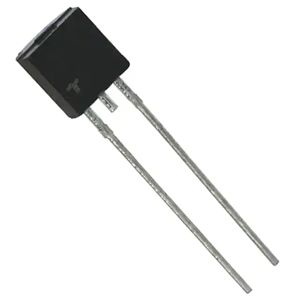

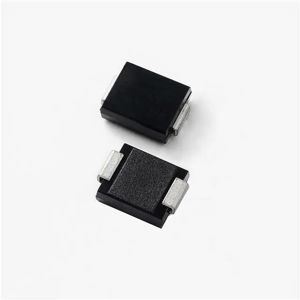

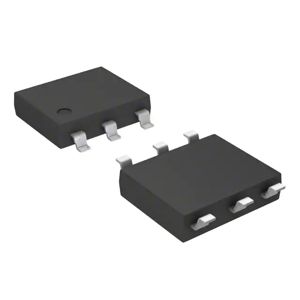

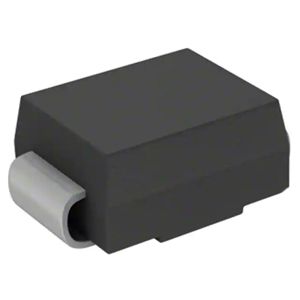

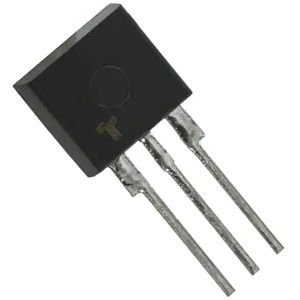

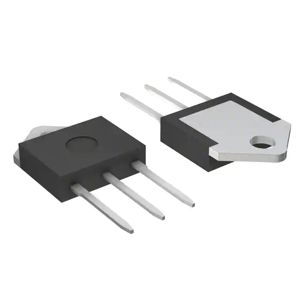

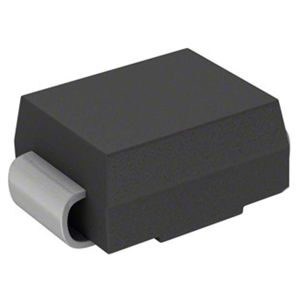

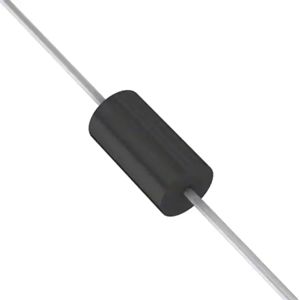

3. Package Type: SMD (e.g., SMB/DO-214AA) for PCB space constraints; through-hole for high-power dissipation.
4. Certifications: Prioritize components with AEC-Q101 (automotive) or ISO 7637-2 compliance for mission-critical systems.

Why Invest in Quality TVS Thyristors?
A single voltage spike can cascade into costly downtime. Premium TVS thyristors from trusted manufacturers (e.g., Littelfuse, Vishay) deliver nanosecond-level response times and >10k surge cycles, reducing long-term replacement costs. Pair with thermal fuses for layered protection in high-risk installations.
