0009483095
Molex
Molex

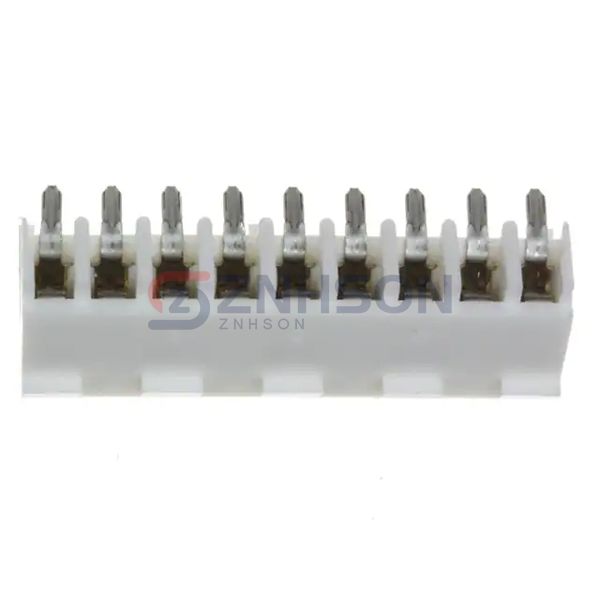

CONN RCPT 9P 0.156 GOLD EDGE MNT
$2.51
Available to order
Reference Price (USD)
1+
$2.51000
500+
$2.4849
1000+
$2.4598
1500+
$2.4347
2000+
$2.4096
2500+
$2.3845
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Upgrade your connectivity solutions with 0009483095 Molex Rectangular Connectors - Headers, Receptacles, and Female Sockets. These connectors are designed for easy integration and long-lasting performance in consumer electronics, security systems, and agricultural machinery. Featuring tool-less assembly, color-coded housings, and IP-rated options, they simplify installation and maintenance. Applications include smart appliances, surveillance cameras, and automated farming equipment. Molex connectors deliver the reliability and efficiency your projects demand.
Specifications
- Product Status: Active
- Connector Type: Receptacle
- Contact Type: Female Socket
- Style: Board to Board or Cable
- Number of Positions: 9
- Number of Positions Loaded: All
- Pitch - Mating: 0.156" (3.96mm)
- Number of Rows: 1
- Row Spacing - Mating: -
- Mounting Type: Board Edge, Through Hole, Right Angle
- Termination: Solder
- Fastening Type: Locking Ramp
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 15.0µin (0.38µm)
- Insulation Color: Natural
- Insulation Height: 0.308" (7.82mm)
- Contact Length - Post: 0.145" (3.68mm)
- Operating Temperature: -40°C ~ 80°C
- Material Flammability Rating: UL94 V-0
- Contact Finish - Post: Tin
- Mated Stacking Heights: -
- Ingress Protection: -
- Features: Board Hooks
- Current Rating (Amps): 4.5A
- Voltage Rating: 600V
