0010883042
Molex
Molex
CONN HEADER R/A 4POS 2.54MM
$0.48
Available to order
Reference Price (USD)
10,000+
$0.38450
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram

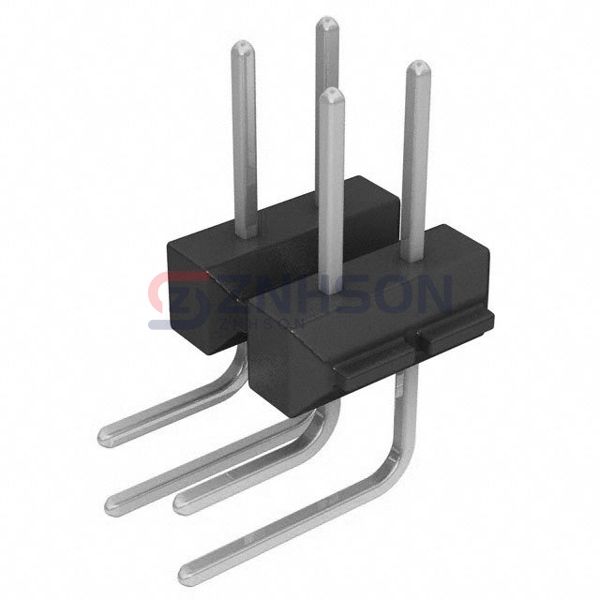

The 0010883042 male pin header by Molex offers a dependable solution for rectangular connectors. Designed for easy integration, these headers ensure consistent connectivity in demanding environments. Features include high-temperature resistance and superior contact stability. Applications range from industrial machinery to smart home systems. Choose Molex for connectors that combine innovation with durability.
Specifications
- Product Status: Active
- Connector Type: Header, Breakaway
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 4
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Unshrouded
- Mounting Type: Through Hole, Right Angle
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.320" (8.13mm)
- Contact Length - Post: 0.110" (2.79mm)
- Overall Contact Length: -
- Insulation Height: 0.220" (5.60mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: 150.0µin (3.81µm)
- Contact Finish - Post: Tin
- Contact Material: Copper Alloy
- Insulation Material: Polyester, Glass Filled
- Features: -
- Operating Temperature: -
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): -
- Voltage Rating: -
