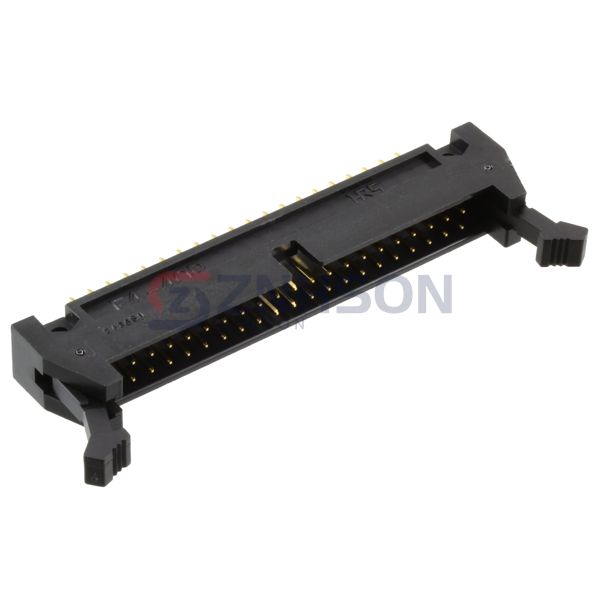

HIF4-40P-3.18DSA

Specifications

• Product Status: Active
• Connector Type: Header
• Contact Type: Male Pin
• Pitch - Mating: 0.125" (3.18mm)
• Number of Positions: 40
• Number of Rows: 2
• Row Spacing - Mating: 0.125" (3.18mm)
• Number of Positions Loaded: All
• Style: Board to Cable/Wire
• Shrouding: Shrouded - 4 Wall
• Mounting Type: Through Hole
• Termination: Solder
• Fastening Type: Latch Lock/Eject Hooks
• Contact Length - Mating: 0.201" (5.10mm)
• Contact Length - Post: 0.142" (3.60mm)
• Overall Contact Length: 0.673" (17.09mm)
• Insulation Height: 0.720" (18.30mm)
• Contact Shape: Square
• Contact Finish - Mating: Gold
• Contact Finish Thickness - Mating: 8.00µin (0.203µm)
• Contact Finish - Post: -
• Contact Material: Phosphor Bronze
• Insulation Material: Polybutylene Terephthalate (PBT)
• Features: Keying Slot, Mounting Flange
• Operating Temperature: -55°C ~ 85°C
• Ingress Protection: -
• Material Flammability Rating: UL94 V-0
• Insulation Color: Black
• Current Rating (Amps): 3A
• Voltage Rating: 300V
