0022122034
Molex
Molex

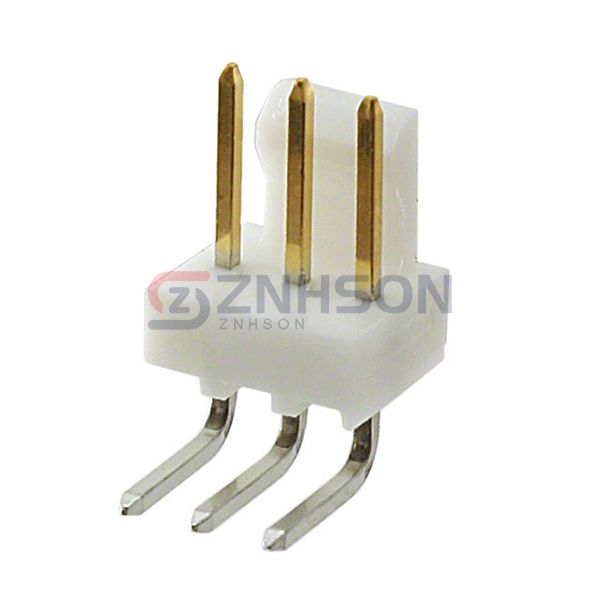

CONN HEADER R/A 3POS 2.54MM
$1.02
Available to order
Reference Price (USD)
1+
$0.80000
10+
$0.70700
100+
$0.61030
500+
$0.49932
1,000+
$0.44384
5,000+
$0.38836
10,000+
$0.36894
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 0022122034 male pin header by Molex provides a reliable solution for rectangular connectors. Designed for ease of use and high performance, these headers are suitable for a wide range of applications, including LED lighting, HVAC systems, and portable devices. Molex guarantees connectors that enhance your product's functionality and lifespan.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 3
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Shrouded - 1 Wall
- Mounting Type: Through Hole, Right Angle
- Termination: Solder
- Fastening Type: Friction Lock
- Contact Length - Mating: 0.264" (6.70mm)
- Contact Length - Post: 0.141" (3.58mm)
- Overall Contact Length: -
- Insulation Height: 0.250" (6.35mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 20.0µin (0.51µm)
- Contact Finish - Post: Tin
- Contact Material: Brass
- Insulation Material: Polyamide (PA), Nylon
- Features: -
- Operating Temperature: -
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: White
- Current Rating (Amps): -
- Voltage Rating: -
