0026486134
Molex
Molex
CONN HEADER R/A 13POS 3.96MM
$1.53
Available to order
Reference Price (USD)
1+
$1.53000
10+
$1.36900
100+
$1.12720
500+
$0.89106
1,000+
$0.76491
5,000+
$0.69781
10,000+
$0.67098
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 0026486134 from Molex is a high-quality rectangular connector header designed for reliable interconnections in various electronic applications. These male pin headers feature a robust construction, ensuring secure and stable connections. Ideal for PCB mounting, the 0026486134 offers excellent electrical performance and durability. With options for different pin counts and pitches, this connector is versatile for numerous industrial and consumer electronics. Applications include automotive systems, telecommunications equipment, and home appliances. Choose Molex for precision-engineered connectors that meet global standards.
Specifications
- Product Status: Active
- Connector Type: Header, Breakaway
- Contact Type: Male Pin
- Pitch - Mating: 0.156" (3.96mm)
- Number of Positions: 13
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Shrouded - 1 Wall
- Mounting Type: Through Hole, Right Angle
- Termination: Solder
- Fastening Type: Friction Lock
- Contact Length - Mating: 0.528" (13.41mm)
- Contact Length - Post: 0.207" (5.26mm)
- Overall Contact Length: -
- Insulation Height: 0.355" (9.02mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: 60.0µin (1.52µm)
- Contact Finish - Post: Tin
- Contact Material: Brass
- Insulation Material: Polyester
- Features: -
- Operating Temperature: -
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): -
- Voltage Rating: -
Related Products
Molex
90814-0026
TE Connectivity AMP Connectors
3-641215-5
Preci-Dip
350-80-147-00-206101
Samtec Inc.
TSM-126-01-L-DV-A
TE Connectivity AMP Connectors
4-103327-0-23
TE Connectivity AMP Connectors
5-1747145-3
Oupiin
2011-1X08TSD025B
Samtec Inc.
TMM-108-06-F-D

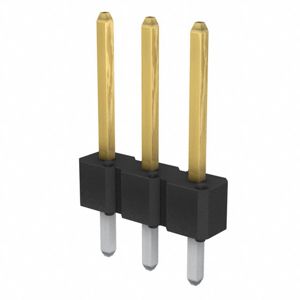

Amphenol ICC (FCI)
