0026604080
Molex
Molex

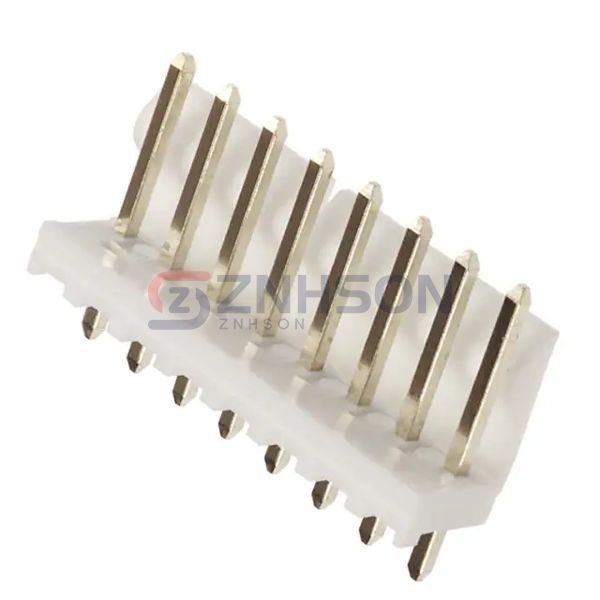

CONN HEADER VERT 8POS 3.96MM
$0.97
Available to order
Reference Price (USD)
1+
$1.00000
10+
$0.88200
100+
$0.76120
500+
$0.62280
1,000+
$0.55360
5,000+
$0.48440
10,000+
$0.46018
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Upgrade your electronic designs with the 0026604080 rectangular connector header by Molex. These male pin connectors provide a secure and efficient solution for PCB interconnections. Featuring a compact design and high conductivity, the 0026604080 ensures optimal signal transmission. Suitable for harsh environments, these headers are resistant to vibration and corrosion. Common uses include industrial automation, medical devices, and aerospace systems. Trust Molex for connectors that deliver performance and reliability in every application.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.156" (3.96mm)
- Number of Positions: 8
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Shrouded - 1 Wall
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Friction Lock
- Contact Length - Mating: 0.450" (11.43mm)
- Contact Length - Post: 0.140" (3.56mm)
- Overall Contact Length: 0.720" (18.29mm)
- Insulation Height: 0.446" (11.33mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: 60.0µin (1.52µm)
- Contact Finish - Post: Tin
- Contact Material: -
- Insulation Material: Polyester, Glass Filled
- Features: -
- Operating Temperature: -
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Natural
- Current Rating (Amps): -
- Voltage Rating: -
