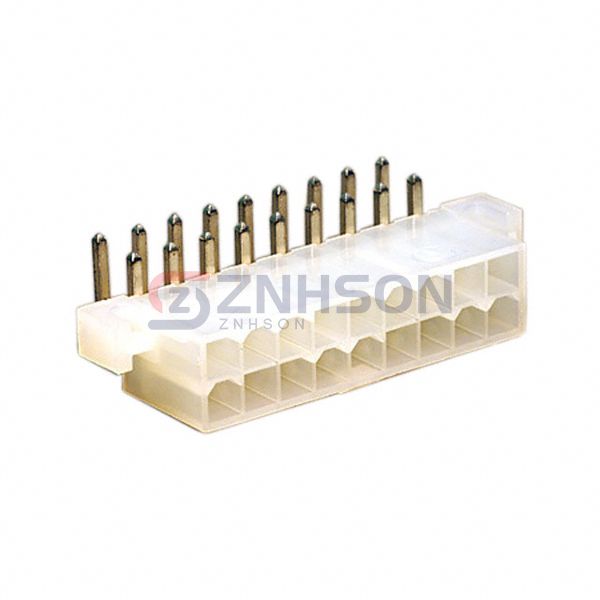

0039291188
Molex
Molex
CONN HEADER R/A 18POS 4.2MM
$4.25
Available to order
Reference Price (USD)
1+
$4.25000
500+
$4.2075
1000+
$4.165
1500+
$4.1225
2000+
$4.08
2500+
$4.0375
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 0039291188 by Molex is a premium rectangular connector header designed for male pin connections. Engineered for precision, these headers offer low insertion loss and high mating cycles. Perfect for high-density PCB applications, the 0039291188 supports various configurations to meet diverse needs. Its applications span across data communication, military equipment, and renewable energy systems. Molex ensures each connector meets rigorous quality standards for global compliance.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.165" (4.20mm)
- Number of Positions: 18
- Number of Rows: 2
- Row Spacing - Mating: 0.165" (4.20mm)
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole, Right Angle
- Termination: Solder
- Fastening Type: Locking Ramp
- Contact Length - Mating: -
- Contact Length - Post: 0.142" (3.60mm)
- Overall Contact Length: -
- Insulation Height: 0.378" (9.60mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: 100.0µin (2.54µm)
- Contact Finish - Post: Tin
- Contact Material: Brass
- Insulation Material: Polyamide (PA66), Nylon 6/6
- Features: Mounting Flange
- Operating Temperature: -
- Ingress Protection: -
- Material Flammability Rating: UL94 V-2
- Insulation Color: Natural
- Current Rating (Amps): -
- Voltage Rating: -
Related Products
Amphenol ICC (FCI)
95293-101-12LF
TE Connectivity AMP Connectors
4-103741-0-36
TE Connectivity AMP Connectors
3-644892-8
Samtec Inc.
TSW-141-08-G-S
Samtec Inc.
TMM-117-01-L-D-SM-A-TR
Preci-Dip
894-70-096-20-001101
Sullins Connector Solutions
SBH21-NBPN-D08-ST-BK
Preci-Dip
802-80-064-20-001101

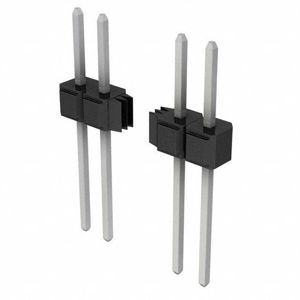

3M
