0194270032
Molex
Molex

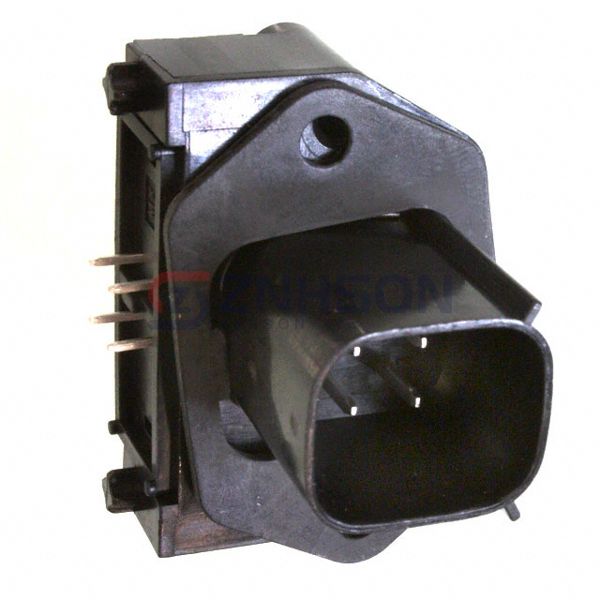

CONN HEADER R/A 4POS 5.84MM
$7.42
Available to order
Reference Price (USD)
1+
$5.55000
10+
$5.32800
480+
$3.88500
960+
$3.44100
1,440+
$3.21900
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 0194270032 by Molex is a versatile rectangular connector header designed for male pin connections. With a focus on quality and precision, these headers support various PCB layouts and configurations. Ideal for applications in robotics, power supplies, and audio equipment. Molex delivers connectors that meet the needs of modern electronics with unmatched reliability.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Blade
- Pitch - Mating: 0.230" (5.84mm)
- Number of Positions: 4
- Number of Rows: 2
- Row Spacing - Mating: 0.230" (5.84mm)
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Panel Mount, Through Hole, Right Angle
- Termination: Solder
- Fastening Type: Locking Ramp
- Contact Length - Mating: -
- Contact Length - Post: 0.130" (3.30mm)
- Overall Contact Length: -
- Insulation Height: 1.247" (31.67mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: 100.0µin (2.54µm)
- Contact Finish - Post: Tin
- Contact Material: Copper Alloy
- Insulation Material: Polybutylene Terephthalate (PBT), Glass Filled
- Features: Board Guide, Mounting Flange
- Operating Temperature: -
- Ingress Protection: IP67 - Dust Tight, Waterproof
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): -
- Voltage Rating: -
