0348250124
Molex
Molex
CONN HEADER VERT 12POS 2MM
$2.02
Available to order
Reference Price (USD)
1+
$1.56000
10+
$1.41500
100+
$1.21250
520+
$1.01044
1,040+
$0.86610
5,200+
$0.76794
10,400+
$0.75062
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram

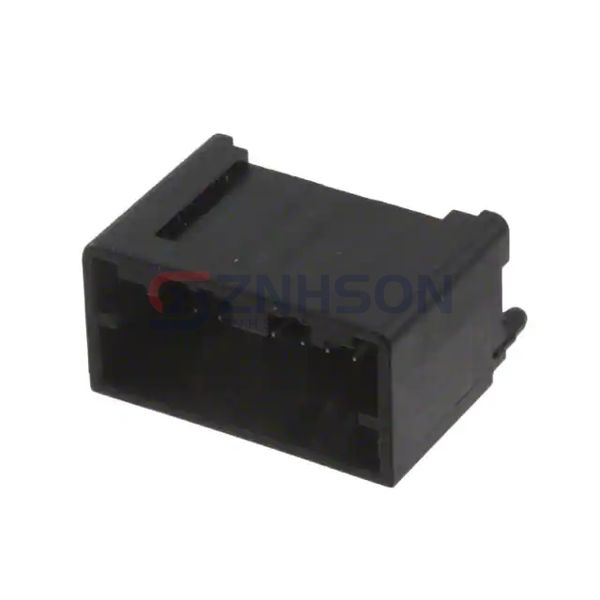

The 0348250124 by Molex is a versatile rectangular connector header designed for male pin connections. With a focus on quality and precision, these headers support various PCB layouts and configurations. Ideal for applications in robotics, power supplies, and audio equipment. Molex delivers connectors that meet the needs of modern electronics with unmatched reliability.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.079" (2.00mm)
- Number of Positions: 12
- Number of Rows: 2
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Latch Holder
- Contact Length - Mating: 0.218" (5.55mm)
- Contact Length - Post: 0.113" (2.87mm)
- Overall Contact Length: -
- Insulation Height: 0.614" (15.60mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: -
- Contact Finish - Post: Tin
- Contact Material: Brass
- Insulation Material: Syndiotactic Polystyrene (SPS), Glass Filled
- Features: Board Guide, Solder Retention
- Operating Temperature: -
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): -
- Voltage Rating: -
