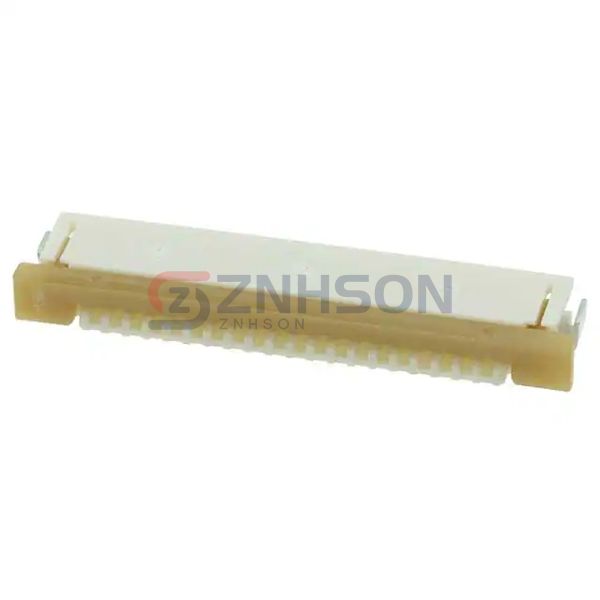

0522712069
Molex
Molex
CONN FPC BOTTOM 20POS 1.00MM R/A
$2.43
Available to order
Reference Price (USD)
1,000+
$1.06125
2,000+
$1.02588
3,000+
$0.99050
5,000+
$0.94098
10,000+
$0.91975
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Maximize your device's potential with Molex's 0522712069 FFC/FPC Connectors the epitome of precision and adaptability. These connectors feature a unique combination of bend resistance, high pin density, and corrosion-resistant materials, ensuring longevity in dynamic environments. The 0522712069 is particularly suited for AR/VR headsets, automotive infotainment, and military communications. With Molex's patented contact technology, signal loss is minimized even at high frequencies. Whether for prototyping or mass production, 0522712069 offers a scalable solution for all your flexible connection requirements.
Specifications
- Product Status: Active
- Flat Flex Type: FPC
- Mounting Type: Surface Mount, Right Angle
- Connector/Contact Type: Contacts, Bottom
- Number of Positions: 20
- Pitch: 0.039" (1.00mm)
- Termination: Solder
- FFC, FCB Thickness: 0.30mm
- Height Above Board: 0.118" (3.00mm)
- Locking Feature: Slide Lock
- Cable End Type: Tapered
- Contact Material: Phosphor Bronze
- Contact Finish: Gold
- Housing Material: Polyamide (PA46), Nylon 4/6
- Actuator Material: Polyphenylene Sulfide (PPS)
- Features: Solder Retention, Zero Insertion Force (ZIF)
- Voltage Rating: 50V
- Operating Temperature: -40°C ~ 85°C
- Material Flammability Rating: UL94 V-0
