0527461071
Molex
Molex

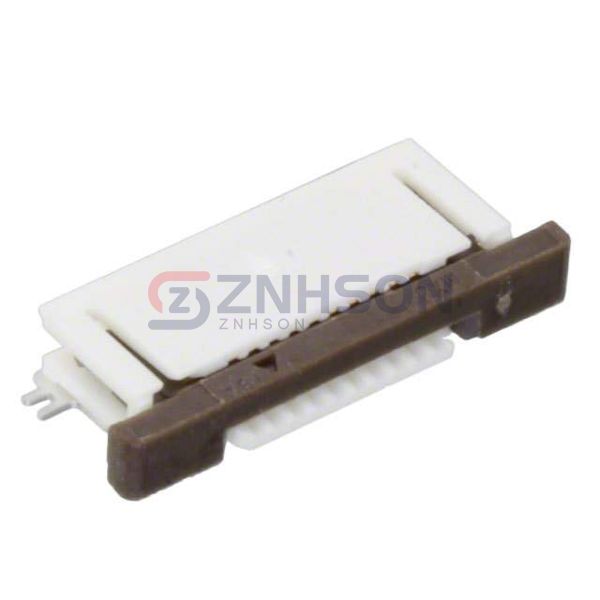

CONN FFC BOTTOM 10POS 0.50MM R/A
$1.65
Available to order
Reference Price (USD)
1,000+
$0.76608
2,000+
$0.71820
3,000+
$0.69426
5,000+
$0.67032
10,000+
$0.63680
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Maximize your device's potential with Molex's 0527461071 FFC/FPC Connectors the epitome of precision and adaptability. These connectors feature a unique combination of bend resistance, high pin density, and corrosion-resistant materials, ensuring longevity in dynamic environments. The 0527461071 is particularly suited for AR/VR headsets, automotive infotainment, and military communications. With Molex's patented contact technology, signal loss is minimized even at high frequencies. Whether for prototyping or mass production, 0527461071 offers a scalable solution for all your flexible connection requirements.
Specifications
- Product Status: Active
- Flat Flex Type: FFC, FPC
- Mounting Type: Surface Mount, Right Angle
- Connector/Contact Type: Contacts, Bottom
- Number of Positions: 10
- Pitch: 0.020" (0.50mm)
- Termination: Solder
- FFC, FCB Thickness: 0.30mm
- Height Above Board: 0.079" (2.00mm)
- Locking Feature: Slide Lock
- Cable End Type: Straight, Tapered
- Contact Material: Phosphor Bronze
- Contact Finish: Gold
- Housing Material: Polyamide (PA46), Nylon 4/6, Glass Filled
- Actuator Material: Polyphenylene Sulfide (PPS), Glass Filled
- Features: Solder Retention, Zero Insertion Force (ZIF)
- Voltage Rating: 50V
- Operating Temperature: -20°C ~ 85°C
- Material Flammability Rating: UL94 V-0
