0705450043

Molex

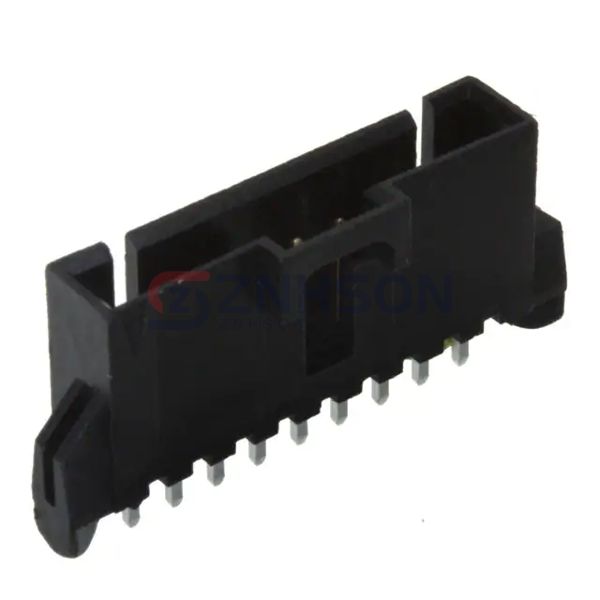

0705450043 Preview
Molex
CONN HEADER VERT 9POS 2.54MM
$2.48
Available to order
Reference Price (USD)
1+
$1.97000
17+
$1.78824
102+
$1.53304
510+
$1.27751
1,003+
$1.09500
5,015+
$0.97090
10,013+
$0.94900
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram

Specifications

  • Product Status: Active
  • Connector Type: Header
  • Contact Type: Male Pin
  • Pitch - Mating: 0.100" (2.54mm)
  • Number of Positions: 9
  • Number of Rows: 1
  • Row Spacing - Mating: -
  • Number of Positions Loaded: All
  • Style: Board to Cable/Wire
  • Shrouding: Shrouded - 4 Wall
  • Mounting Type: Through Hole
  • Termination: Solder
  • Fastening Type: Latch Holder
  • Contact Length - Mating: 0.240" (6.10mm)
  • Contact Length - Post: 0.130" (3.30mm)
  • Overall Contact Length: 0.470" (11.94mm)
  • Insulation Height: 0.465" (11.80mm)
  • Contact Shape: Square
  • Contact Finish - Mating: Gold
  • Contact Finish Thickness - Mating: 15.0µin (0.38µm)
  • Contact Finish - Post: Tin
  • Contact Material: Phosphor Bronze
  • Insulation Material: Polyester, Glass Filled
  • Features: Board Guide
  • Operating Temperature: -40°C ~ 105°C
  • Ingress Protection: -
  • Material Flammability Rating: UL94 V-0
  • Insulation Color: Black
  • Current Rating (Amps): -
  • Voltage Rating: 250V
