0713085684
Molex
Molex
CONN HEADER SMD 84POS 2.54MM
$35.43
Available to order
Reference Price (USD)
540+
$27.82600
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Choose the 0713085684 rectangular connector header from Molex for superior male pin interconnections. These headers are engineered for high-density applications, offering excellent conductivity and mechanical stability. Common uses include server racks, test equipment, and marine electronics. Molex is committed to providing connectors that exceed industry expectations.
Specifications
- Product Status: Active
- Connector Type: Header, Breakaway
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 84
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Unshrouded
- Mounting Type: Surface Mount
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.240" (6.10mm)
- Contact Length - Post: -
- Overall Contact Length: -
- Insulation Height: 0.090" (2.29mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: 59.0µin (1.50µm)
- Contact Finish - Post: Tin
- Contact Material: Copper Alloy
- Insulation Material: Liquid Crystal Polymer (LCP), Glass Filled
- Features: Pick and Place
- Operating Temperature: -
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): -
- Voltage Rating: -
Related Products
Molex
0015910448
Preci-Dip
852-80-016-20-002101
Omron Electronics Inc-EMC Div
XG4A-3434
Mill-Max Manufacturing Corp.
349-10-159-00-560000
Mill-Max Manufacturing Corp.
850-40-024-20-001000
JST Sales America Inc.
B22B-PNDZS-1(T)(LF)(SN)
Samtec Inc.
BKT-151-03-F-V-A
Molex

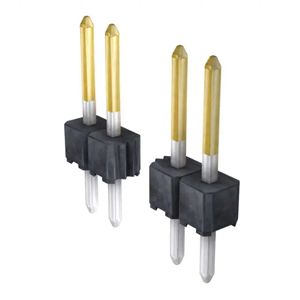

0901200936
Mill-Max Manufacturing Corp.

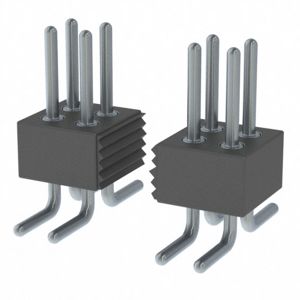

852-40-074-30-001000
