0757571101
Molex
Molex
CONN HEADER VERT 20POS 3.5MM
$7.76
Available to order
Reference Price (USD)
1+
$6.23000
10+
$5.98400
210+
$4.98700
630+
$4.23895
1,050+
$3.61557
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram

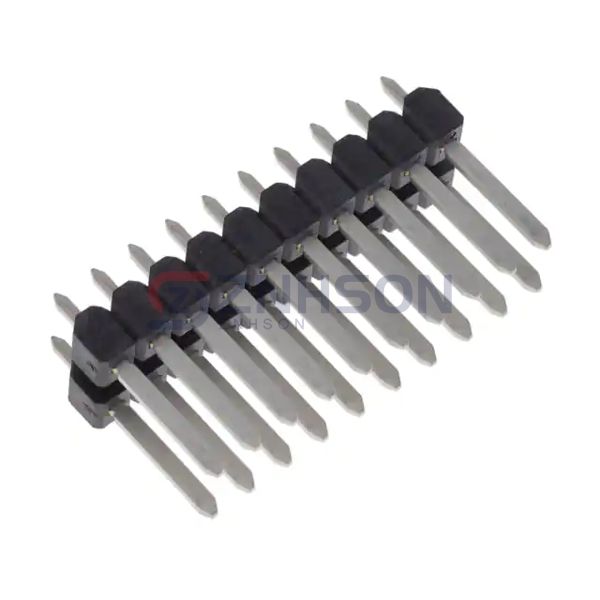

The 0757571101 male pin header by Molex provides a reliable solution for rectangular connectors. Designed for ease of use and high performance, these headers are suitable for a wide range of applications, including LED lighting, HVAC systems, and portable devices. Molex guarantees connectors that enhance your product's functionality and lifespan.
Specifications
- Product Status: Active
- Connector Type: Header, Breakaway
- Contact Type: Male Blade
- Pitch - Mating: 0.138" (3.50mm)
- Number of Positions: 20
- Number of Rows: 2
- Row Spacing - Mating: 0.236" (6.00mm)
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.441" (11.20mm)
- Contact Length - Post: 0.120" (3.05mm)
- Overall Contact Length: 0.738" (18.75mm)
- Insulation Height: 0.177" (4.50mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: 100.0µin (2.54µm)
- Contact Finish - Post: Tin
- Contact Material: Cartridge Brass
- Insulation Material: Liquid Crystal Polymer (LCP), Glass Filled
- Features: -
- Operating Temperature: -
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): -
- Voltage Rating: -
