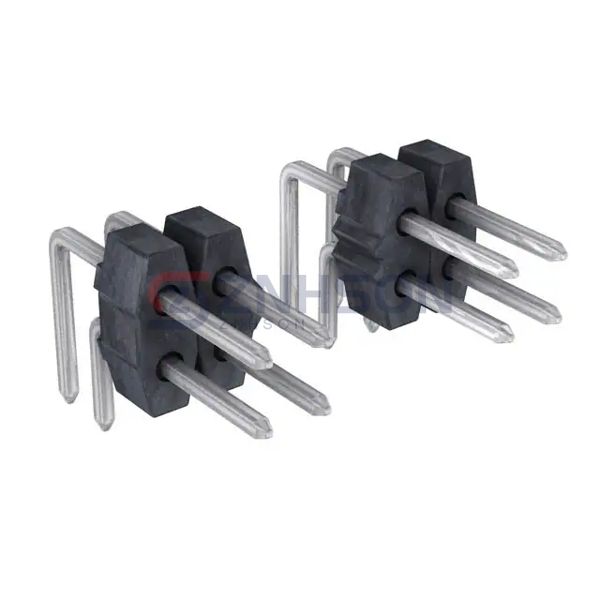

0901220130
Molex
Molex
CONN HEADER R/A 20POS 2.54MM
$2.99
Available to order
Reference Price (USD)
1+
$2.85000
10+
$2.73400
25+
$2.50680
50+
$2.39260
100+
$2.27870
250+
$1.99388
500+
$1.93692
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Upgrade your electronic designs with the 0901220130 rectangular connector header by Molex. These male pin connectors provide a secure and efficient solution for PCB interconnections. Featuring a compact design and high conductivity, the 0901220130 ensures optimal signal transmission. Suitable for harsh environments, these headers are resistant to vibration and corrosion. Common uses include industrial automation, medical devices, and aerospace systems. Trust Molex for connectors that deliver performance and reliability in every application.
Specifications
- Product Status: Active
- Connector Type: Header, Breakaway
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 20
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Unshrouded
- Mounting Type: Through Hole, Right Angle
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.266" (6.75mm)
- Contact Length - Post: 0.114" (2.90mm)
- Overall Contact Length: -
- Insulation Height: 0.242" (6.14mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: 157.5µin (4.00µm)
- Contact Finish - Post: Tin
- Contact Material: Brass
- Insulation Material: Polyester, Glass Filled
- Features: -
- Operating Temperature: -
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): -
- Voltage Rating: -
Related Products
Mill-Max Manufacturing Corp.
350-10-154-00-006000
Samtec Inc.
HTSW-125-08-S-S
Samtec Inc.

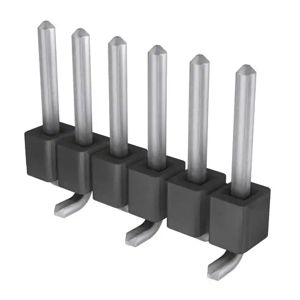

TSM-106-01-TM-SV
Samtec Inc.

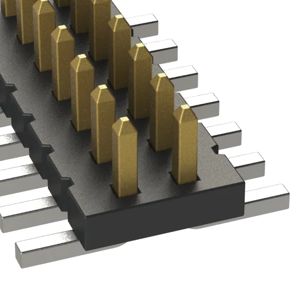

FTS-107-03-F-DV
Sullins Connector Solutions

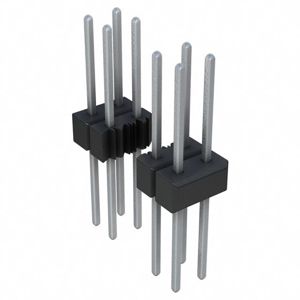

PEC31DFCN
Preci-Dip

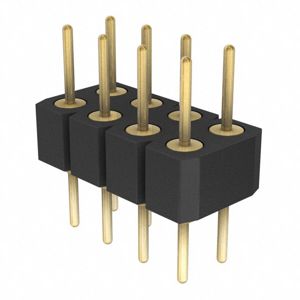

450-10-208-00-006101
TE Connectivity AMP Connectors

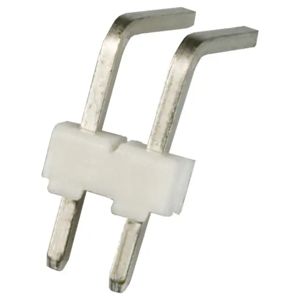

3-644694-2
Amphenol ICC (FCI)

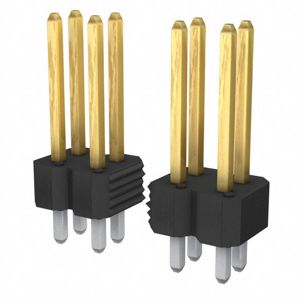

77313-115-40LF
