0901220773
Molex
Molex
CONN HEADER R/A 26POS 2.54MM
$3.77
Available to order
Reference Price (USD)
1+
$3.77181
500+
$3.7340919
1000+
$3.6963738
1500+
$3.6586557
2000+
$3.6209376
2500+
$3.5832195
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 0901220773 male pin header by Molex provides a reliable solution for rectangular connectors. Designed for ease of use and high performance, these headers are suitable for a wide range of applications, including LED lighting, HVAC systems, and portable devices. Molex guarantees connectors that enhance your product's functionality and lifespan.
Specifications
- Product Status: Active
- Connector Type: Header, Breakaway
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 26
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Unshrouded
- Mounting Type: Through Hole, Right Angle
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.266" (6.75mm)
- Contact Length - Post: 0.114" (2.90mm)
- Overall Contact Length: -
- Insulation Height: 0.242" (6.14mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 15.0µin (0.38µm)
- Contact Finish - Post: Tin
- Contact Material: Brass
- Insulation Material: Polyester, Glass Filled
- Features: -
- Operating Temperature: -
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): -
- Voltage Rating: -
Related Products
Samtec Inc.
MTSW-104-22-L-D-440
TE Connectivity Deutsch Connectors
DTM15-12PA
TE Connectivity AMP Connectors
6-103908-4
Harwin Inc.
M22-2200445
Molex
0444281602
Preci-Dip
800-80-053-30-480101
Samtec Inc.
FTM-124-03-L-DV
Samtec Inc.
HTSW-103-06-G-S
Samtec Inc.

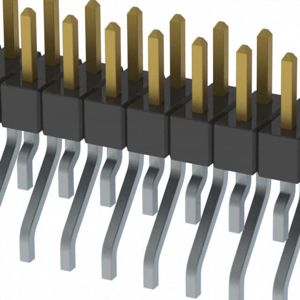

MMT-132-01-S-DH-P
