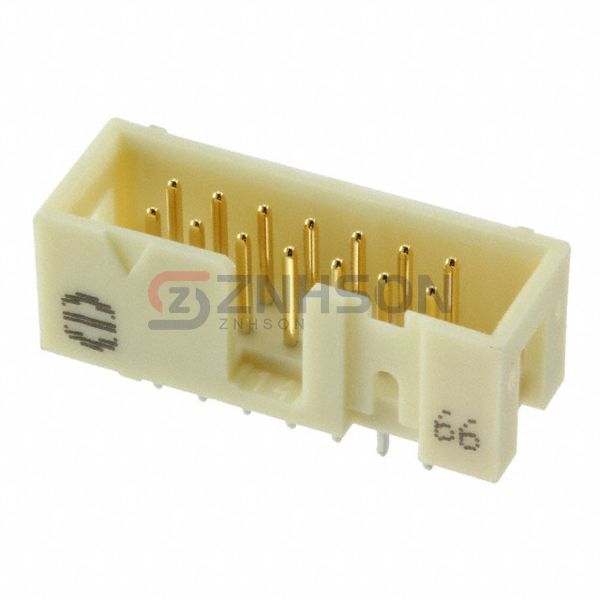

09195147324

HARTING

Manufacturer

HARTING

Description:

CONN HEADER VERT 14POS 2.54MM

Datasheet:

09195147324 Datasheet

$2.64

Available to order

Reference Price (USD)

$2.32000

10+

$2.10700

25+

$1.97800

50+

$1.89200

100+

$1.80600

250+

$1.63400

500+

$1.50500

1,000+

$1.29000

Exquisite packaging

Discount

TT / Paypal / Credit Card / Western Union / Money Gram

Discover the 09195147324 rectangular connector header from HARTING, a top choice for male pin interconnections. These headers provide exceptional mechanical strength and electrical performance. With options for through-hole or surface mount, the 09195147324 adapts to different assembly processes. Ideal for use in automotive electronics, consumer gadgets, and IoT devices. HARTING guarantees connectors that enhance your product's reliability and efficiency.

Specifications

Product Status: Active
Connector Type: Header
Contact Type: Male Pin
Pitch - Mating: 0.100" (2.54mm)
Number of Positions: 14
Number of Rows: 2
Row Spacing - Mating: 0.100" (2.54mm)
Number of Positions Loaded: All
Style: Board to Cable/Wire
Shrouding: Shrouded - 4 Wall
Mounting Type: Through Hole
Termination: Solder
Fastening Type: Latch Holder
Contact Length - Mating: 0.240" (6.10mm)
Contact Length - Post: 0.114" (2.90mm)
Overall Contact Length: -
Insulation Height: 0.350" (8.89mm)
Contact Shape: Square
Contact Finish - Mating: -
Contact Finish Thickness - Mating: -
Contact Finish - Post: Tin
Contact Material: Copper Alloy
Insulation Material: Polycyclohexylenedimethylene Terephthalate (PCT), Glass Filled
Features: Keying Slot
Operating Temperature: -55°C ~ 125°C
Ingress Protection: -
Material Flammability Rating: UL94 V-0
Insulation Color: Beige
Current Rating (Amps): -
Voltage Rating: -
