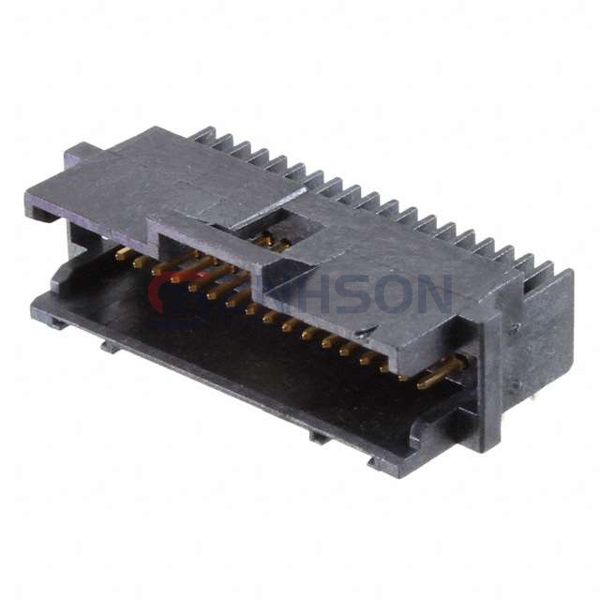

1-104069-4
TE Connectivity AMP Connectors
TE Connectivity AMP Connectors
CONN HEADER R/A 34POS 1.27MM
$8.13
Available to order
Reference Price (USD)
1+
$8.81000
18+
$8.42611
108+
$7.08546
504+
$5.93651
1,008+
$5.24710
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 1-104069-4 male pin header by TE Connectivity AMP Connectors provides a reliable solution for rectangular connectors. Designed for ease of use and high performance, these headers are suitable for a wide range of applications, including LED lighting, HVAC systems, and portable devices. TE Connectivity AMP Connectors guarantees connectors that enhance your product's functionality and lifespan.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.050" (1.27mm)
- Number of Positions: 34
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Shrouded - 2 Wall
- Mounting Type: Through Hole, Right Angle
- Termination: Solder
- Fastening Type: Latch Holder
- Contact Length - Mating: 0.125" (3.18mm)
- Contact Length - Post: 0.100" (2.54mm)
- Overall Contact Length: -
- Insulation Height: 0.290" (7.37mm)
- Contact Shape: Circular
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 30.0µin (0.76µm)
- Contact Finish - Post: Tin-Lead
- Contact Material: Copper Alloy
- Insulation Material: Thermoplastic
- Features: Board Guide
- Operating Temperature: -65°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): -
- Voltage Rating: 30VAC
Related Products
TE Connectivity AMP Connectors
1-640455-1
Samtec Inc.
TSM-128-01-T-SV
Sullins Connector Solutions
PEC02SFBN
Harwin Inc.
M40-4010346R
Samtec Inc.
T2M-120-01-L-D-SM-DS
Samtec Inc.
TMM-112-06-L-S

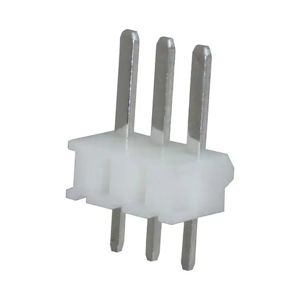

JST Sales America Inc.
B3P-SHF-1AA(LF)(SN)

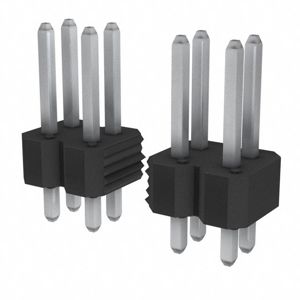

Amphenol ICC (FCI)
77313-401-72LF

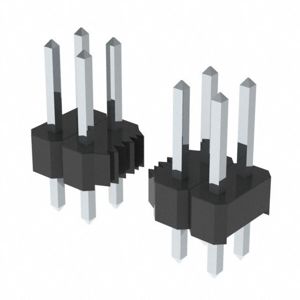

Sullins Connector Solutions
