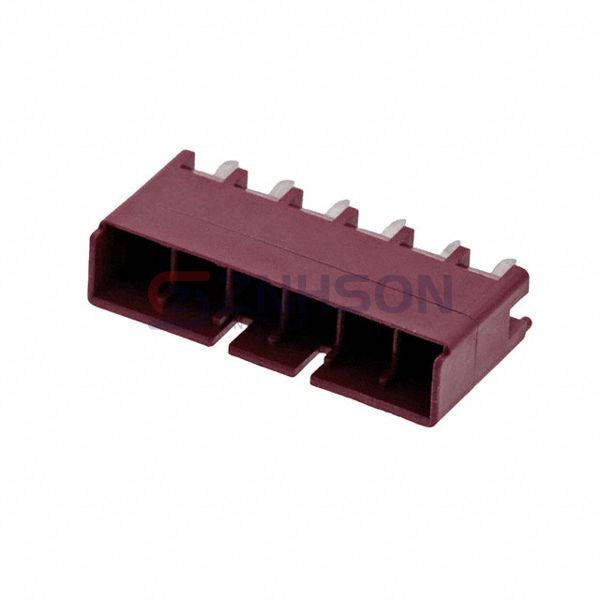

1-1376385-2
TE Connectivity AMP Connectors
TE Connectivity AMP Connectors
CONN HEADER VERT 6POS 5MM
$2.20
Available to order
Reference Price (USD)
1+
$1.78000
10+
$1.62500
100+
$1.40980
500+
$1.19530
1,000+
$1.04205
5,000+
$0.93784
10,000+
$0.91946
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 1-1376385-2 male pin header by TE Connectivity AMP Connectors offers a dependable solution for rectangular connectors. Designed for easy integration, these headers ensure consistent connectivity in demanding environments. Features include high-temperature resistance and superior contact stability. Applications range from industrial machinery to smart home systems. Choose TE Connectivity AMP Connectors for connectors that combine innovation with durability.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Tab
- Pitch - Mating: 0.197" (5.00mm)
- Number of Positions: 6
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Kinked Pin, Solder
- Fastening Type: Locking Ramp
- Contact Length - Mating: -
- Contact Length - Post: 0.138" (3.50mm)
- Overall Contact Length: -
- Insulation Height: 0.555" (14.10mm)
- Contact Shape: Rectangular
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: -
- Contact Finish - Post: Tin
- Contact Material: Copper Alloy
- Insulation Material: Polyamide (PA66), Nylon 6/6, Glass Filled
- Features: Board Guide
- Operating Temperature: -40°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Red
- Current Rating (Amps): Varies by Wire Gauge
- Voltage Rating: 300VAC
